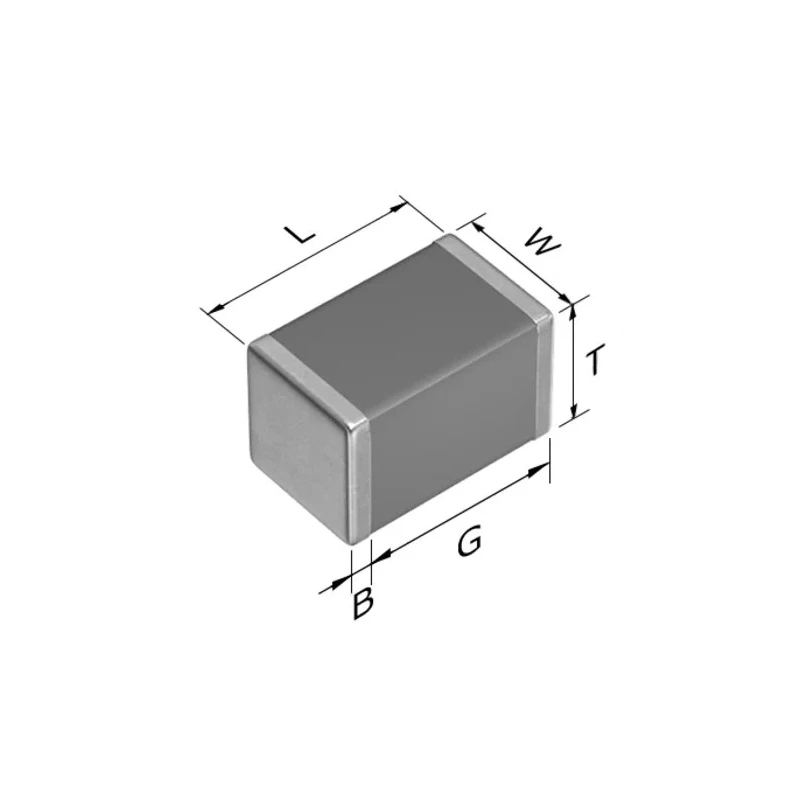

TDK 220 pF Multilayer Ceramic Capacitor, 450V DC, ±5% Tolerance, Surface Mount, CGA4C4NP02W221J060AA
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 450V dc |
| Brand | TDK |
| Height | 0.6mm |
| Length | 2mm |
| Model | CGA4C4NP02W221J060AA |
| Packaging | Tape & Reel |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | CGA |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 150°C |
| Tolerance | ±5 % |
| Capacitance | 220pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0805 |
| Dielectric | C0G |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class I |
Key Features
- Features a compact 0805 surface mount package for efficient PCB integration.
- Constructed with C0G dielectric for excellent stability and low losses.
- Operates reliably within a wide temperature range from -55°C to 150°C.
- Meets automotive AEC-Q200 standard for high temperature and quality requirements.
- Offers excellent DC bias characteristics suited for automotive applications.
- Designed for smoothing, decoupling, and sensor module circuits operating in harsh environments.
- Surface mount termination type ensures stable mechanical and electrical connection.
Product Description
TDK CGA4C4NP02W221J060AA is a multilayer ceramic capacitor designed for robust performance in demanding electronic applications. With a capacitance of 220 pF and voltage rating of 450V DC, this capacitor provides stable operation with a tolerance of ±5%. The component features a surface mount 0805 package, making it suitable for high-density printed circuit boards.
Constructed using C0G dielectric materials, it ensures excellent temperature stability and minimal capacitance variation, supporting operation from -55°C up to a maximum of 150°C. This makes it ideal for automotive environments, meeting the stringent AEC-Q200 automotive quality standard. Its class I suppression class further enhances its reliability.
The capacitor offers excellent DC bias properties, maintaining capacitance under applied voltage stress. Its surface mount termination type guarantees secure mounting and durability under vibration and thermal cycling.
Applications include automotive engine room electronics, sensor modules, and peripheral circuits with high-temperature demands. It is well-suited for smoothing and decoupling functions in power supplies and signal lines in harsh environmental conditions.
Compact 0805 surface mount package for space-efficient PCB layouts. High temperature endurance to 150°C for automotive and industrial use. Stable C0G dielectric for minimal capacitance drift and low losses. Compliance with AEC-Q200 for automotive-grade reliability.
Wide operating temperature range from -55°C to 150°C. Excellent DC bias characteristics for stable performance under load. Ideal for automotive and high-temperature electronic module applications.
This TDK Multilayer Ceramic Capacitor is made in Japan, reflecting high manufacturing standards and reliability. It is supplied in tape & reel packaging for automated assembly processes.
Explore more capacitors and electronic components in EnvMart’s comprehensive catalog for professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 220 pF.
It has a maximum voltage rating of 450V DC.
This capacitor is constructed with C0G dielectric material, which provides excellent stability and low losses.
The dimensions of the 0805 package are 2mm in length, 1.25mm in width, and 0.6mm in height.
It operates reliably within a temperature range from -55°C to 150°C.
Yes, it meets the AEC-Q200 automotive quality standard, making it suitable for automotive applications.
This model features a surface mount termination type, ensuring stable mechanical and electrical connections.
It is supplied in tape & reel packaging, which is suitable for automated assembly processes.
It is designed for applications such as automotive engine room electronics, sensor modules, and smoothing and decoupling functions in power supplies.
The tolerance of this capacitor is ±5%.
This capacitor is classified as Class I suppression, enhancing its reliability in various applications.
This model is manufactured in Japan, reflecting high manufacturing standards.
