TDK 2.2 nF 50V DC ±10% Multilayer Ceramic Capacitor, X8R Dielectric, Surface Mount CGA3E2X8R1H222K080AA

TDK CGA3E2X8R1H222K080AA is a 2.2 nF Multilayer Ceramic Capacitor designed for use in demanding electronic environments. It operates at 50V DC with a tolerance of ±10%, featuring X8R dielectric material which maintains capacitance stability over a wide temperature range.

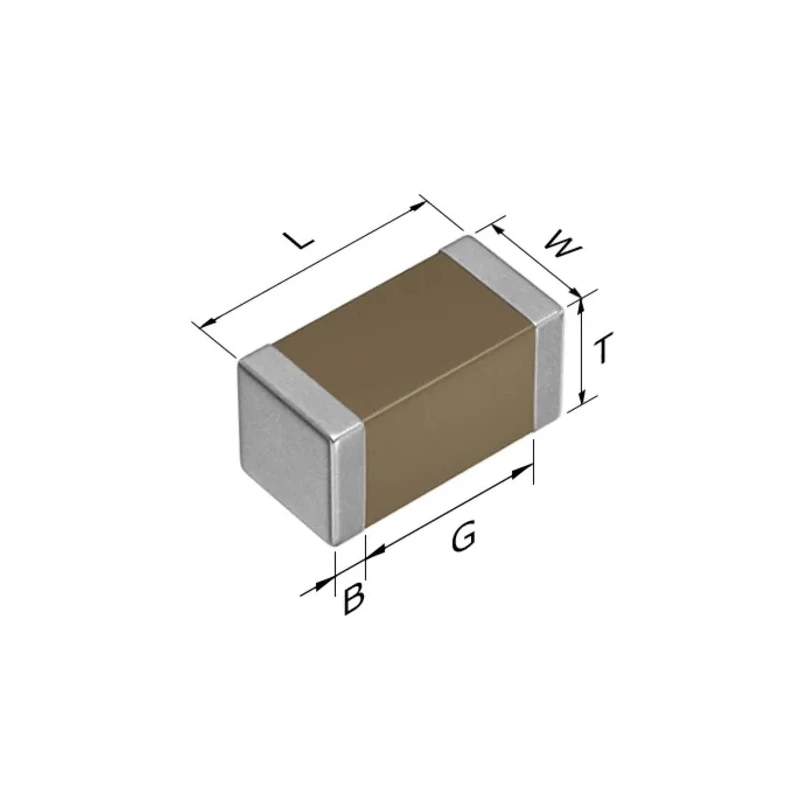

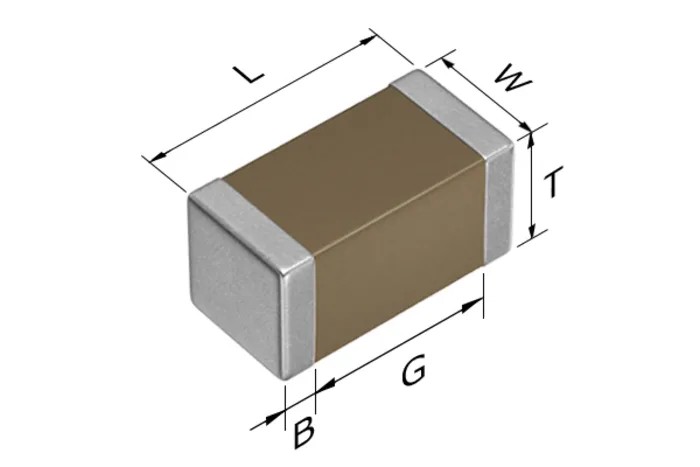

This capacitor comes in a compact 0603 surface mount package measuring 1.6mm in length, 0.8mm width, and 0.8mm height, allowing for dense circuit board designs. It is suited for automotive applications including engine compartments and peripheral circuits involving IGDT, SiC, and GaN devices, capable of sustaining continuous operation at temperatures up to 150°C and as low as -55°C.

Its AEC-Q200 automotive standard certification assures suitability for automotive electronics. The surface mount termination type supports efficient automated PCB assembly using tape & reel packaging formats, delivering excellent DC bias characteristics and high reliability.

Ideal use cases include sensor modules, smoothing and decoupling circuits in automotive and industrial high temperature environments. Its Class II suppression class ensures effective noise reduction and electromagnetic compatibility.

Features X8R dielectric for temperature stability. Compact 0603 package supports miniaturized designs. AEC-Q200 certified for automotive reliability. Wide operating temperature range from -55°C to 150°C. Surface mount termination compatible with automated assembly.

Excellent DC bias properties reduce capacitance variations. Tape & reel packaging facilitates high-volume manufacturing. Manufactured in Japan for consistent quality assurance.

This Multilayer Ceramic Capacitor is suited to various industrial, automotive, and electronics manufacturing applications. Explore more TDK MLCC products to meet your electronic design requirements on EnvMart.
