TDK 10 nF 50V dc ±10 % Multilayer Ceramic Capacitor Surface Mount 0603 Package CGA3E2X7R1H103K080AE

Free Delivery in India | Lowest Global Shipping Charges

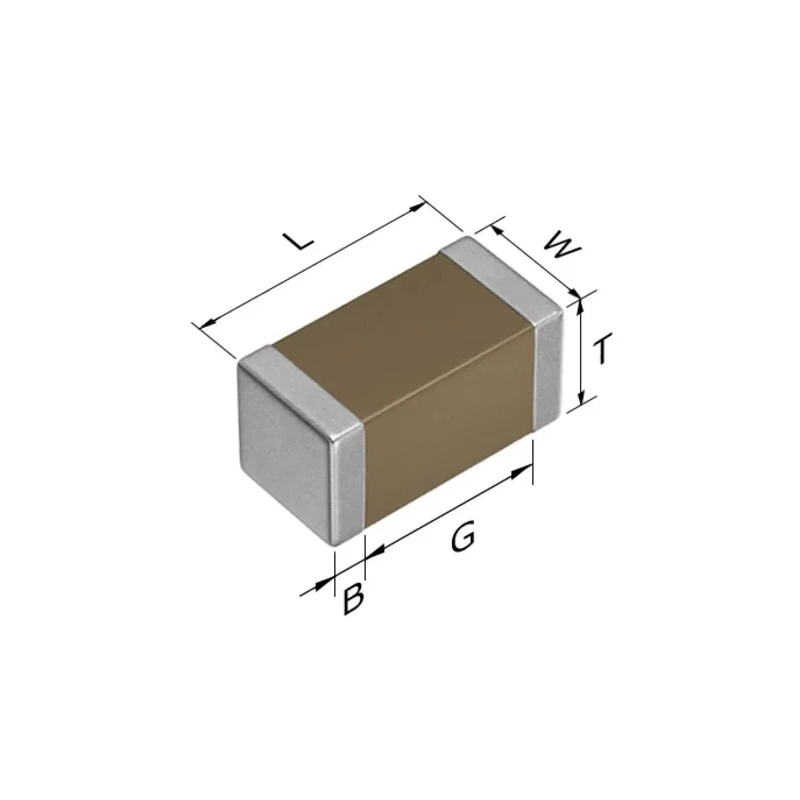

TDK 10 nF 50V dc ±10 % Multilayer Ceramic Capacitor Surface Mount 0603 Package CGA3E2X7R1H103K080AE



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2X7R1H103K080AE
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	10nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X7R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

Compact 0603 package with dimensions 1.6mm length and 0.8mm width provides space-saving solution.
Automotive-grade AEC-Q200 standard ensuring high mechanical endurance and quality.
Dielectric type X7R supports a temperature range from -55°C to 125°C for stable operation.
Surface mount termination with soft conductive resin layers improves thermal and mechanical stress resistance.
Class II suppression class suitable for fail-safe designs in battery lines and electronic protection.
Ideal for applications requiring prevention of ceramic body cracks and solder cracks caused by thermal shock.
Manufactured in Japan with superior quality assurance.

Product Description

TDK CGA3E2X7R1H103K080AE multilayer ceramic capacitor is a highly reliable electronic component designed for surface mount applications. It provides a capacitance of 10 nF with a voltage rating of 50V dc and a tolerance of ±10 %, making it suitable for precise and stable circuits.

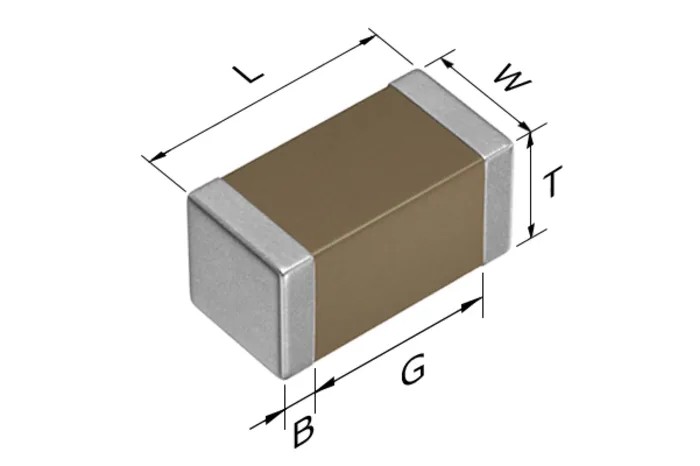

This capacitor features a compact 0603 package measuring 1.6mm in length, 0.8mm in width, and 0.8mm in height, ensuring efficient use of board space in electronic devices. Manufactured according to automotive-grade AEC-Q200 standards, it delivers enhanced mechanical endurance by incorporating soft termination using conductive resin layers that absorb thermal and mechanical stresses effectively.

The dielectric material is classified as X7R, enabling operation across a wide temperature range from -55°C to 125°C, maintaining stable capacitance under varying environmental conditions. The Class II suppression class further supports circuit protection and noise suppression in sensitive electronic assemblies.

This component is suited for fail-safe design implementations, especially in battery lines, and applications where prevention of ceramic body cracks due to board bending and solder joint cracks caused by thermal shock are critical. The product’s high-quality manufacturing origin in Japan ensures consistent performance and longevity.

Compact 0603 size for space-saving designs. Automotive-grade quality and reliability. Wide operating temperature range suitable for harsh environments. Soft termination technology for enhanced mechanical strength. Class II suppression for effective signal integrity.

Fail-safe design applications in automotive and smart keys. Manufactured in Japan with strict quality control.

Explore the TDK range of Multilayer Ceramic Capacitors and other electronic components at EnvMart for high-performance solutions in electronics, automotive, industrial, and telecom applications.
