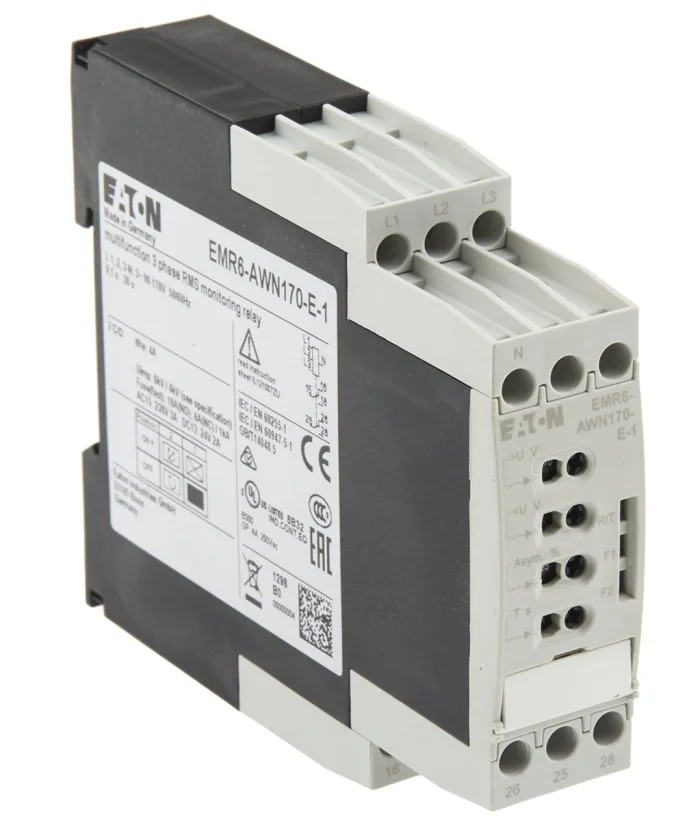

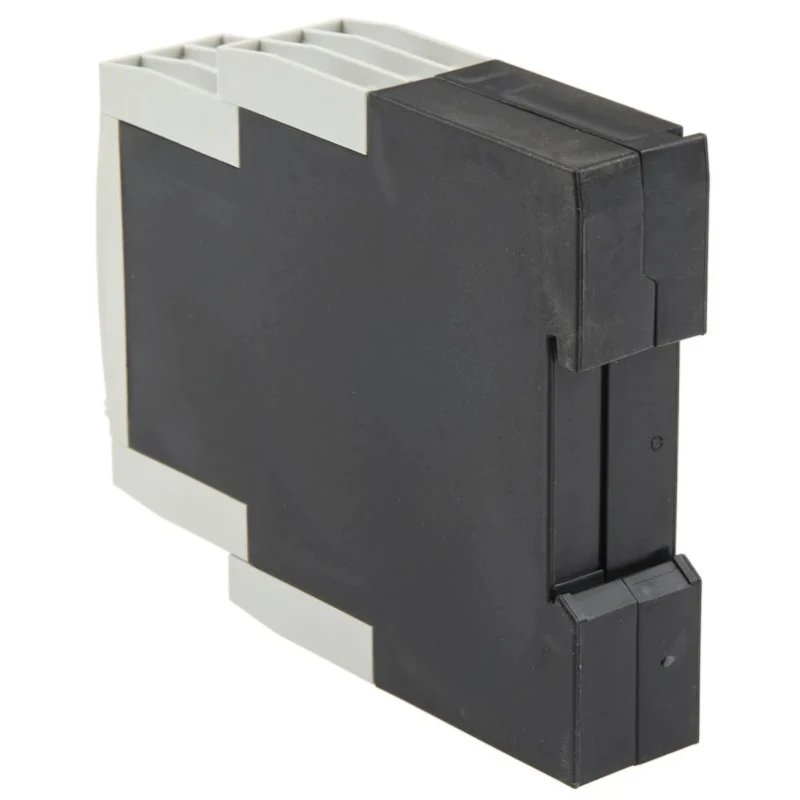

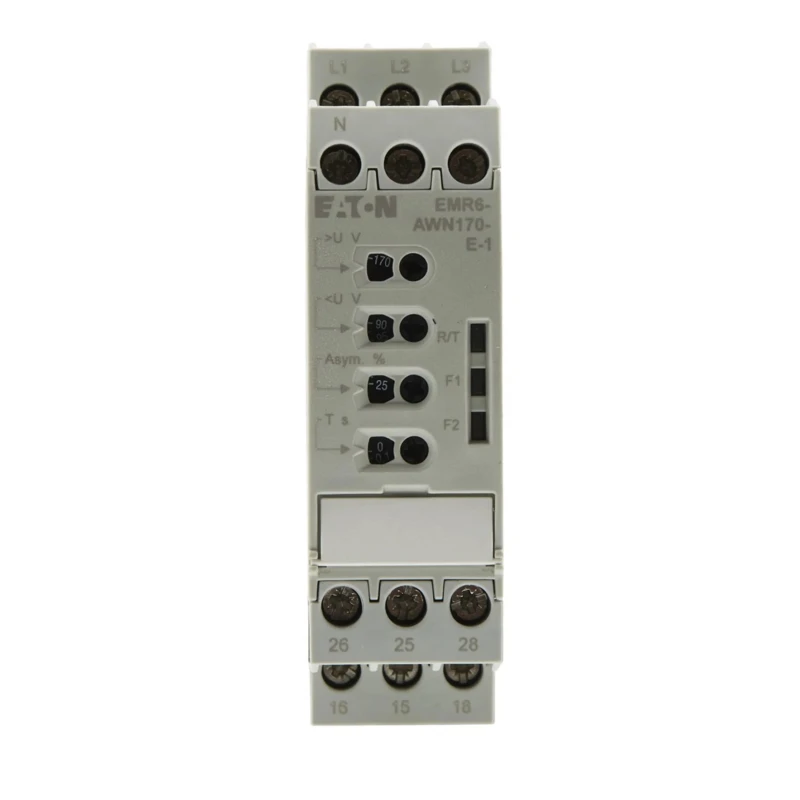

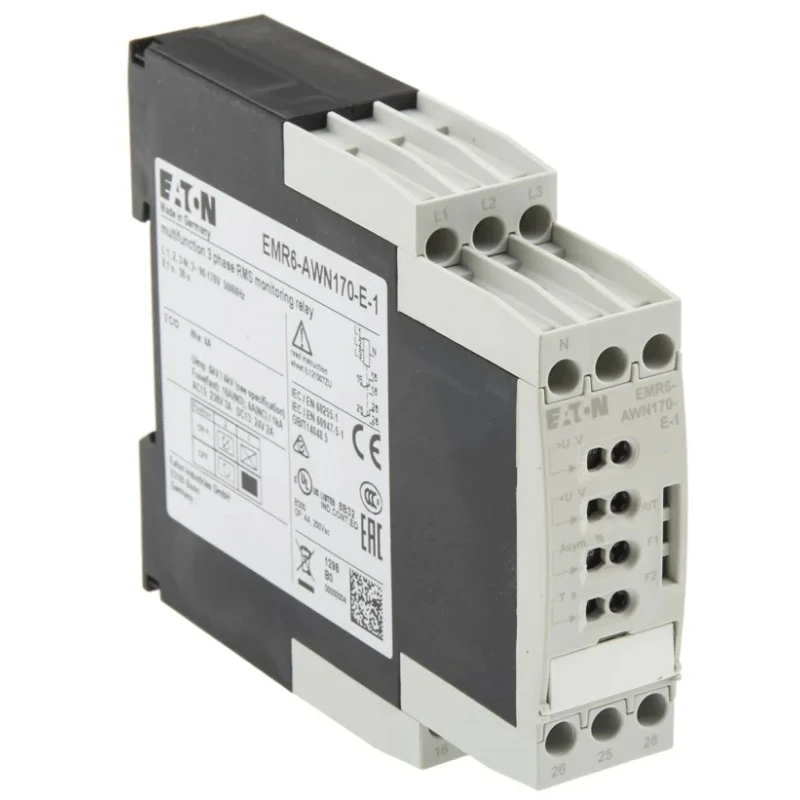

Eaton Monitoring Relay Phase and Voltage Protection 90/170 V AC 4A Screw Terminal DIN Rail Mount 184768 EMR6-AWN170-E-1
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Height | 78mm |
| Length | 109.5mm |
| Model | 184768 EMR6-AWN170-E-1 |
| IP Rating | IP50, IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | EMR6 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | CO |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Standards/Approvals | IEC 60068-2-30, IEC, UL, GL, CCC, CSA, RoHS |
| Contact Current | 4A |
| Supply AC Voltage | 170, 90V ac |
| Monitoring Voltage Range | 90/170 V ac |
Key Features
- Operates within a monitoring voltage range of 90/170 V AC for accurate voltage supervision.
- Features CO contact configuration with a maximum contact current rating of 4 A.
- DIN rail mountable with screw terminals for secure and easy installation.
- Includes LED status indicators for clear operational feedback.
- Offers ambient operating temperature range from -25°C to 60°C ensuring robust performance.
- IP20 terminal protection and IP50 enclosure rating for environmental resistance.
- Designed for industrial and automation applications including factory automation and electrical engineering.
- Complies with IEC 60068-2-30, UL, GL, CCC, CSA, and RoHS standards ensuring high quality and safety.
Product Description
Eaton 184768 EMR6-AWN170-E-1 monitoring relay is engineered to protect three-phase power supplies by monitoring functions such as phase sequence, imbalance, failure, undervoltage, and overvoltage within a voltage range of 90/170 V AC.
This relay features a CO contact configuration with a maximum contact current of 4 A, supporting reliable switching operations. It is designed for DIN rail mounting with screw-type terminals, allowing quick and secure installation in electrical panels.
Robust mechanical construction offers a lifespan of 30 million operations, while LED indicators provide clear status feedback for maintenance and troubleshooting. Its operational temperature range extends from -25°C up to 60°C, making it suitable for diverse industrial environments.
The product's protective ratings include IP20 for terminals and IP50 for the enclosure, providing resistance to dust and other environmental factors. Compliance with international standards such as IEC, UL, GL, CCC, CSA, and RoHS guarantees high product quality and safety in applications.
Typical uses include electric engineering projects, factory automation systems, light industrial environments, and low-voltage switchgear technology. The compact dimensions (109.5 x 22.5 x 78 mm) ensure space-efficient integration into monitoring and control panels.
Operates within a voltage monitoring range of 90/170 V AC. CO contact configuration with 4 A contact current rating. Screw terminal type for secure connections. IP20 rating for terminals and IP50 for enclosure protection.
Complies with relevant IEC, UL, GL, CCC, CSA, and RoHS certifications. Extended operating temperature range from -25°C to +60°C. Durable mechanical lifespan of 30 million cycles. LED status indicators for clear operating conditions.
Compact size suitable for DIN rail mounting. Choose Eaton Monitoring Relays for reliable, efficient phase and voltage monitoring in a variety of industrial, commercial, and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a monitoring voltage range of 90/170 V AC, allowing for accurate voltage supervision.
The relay features a CO contact configuration with a maximum contact current rating of 4 A.
The dimensions of this model are 109.5 mm in length, 22.5 mm in width, and 78 mm in height.
It uses screw-type terminals for secure and reliable connections.
The operational temperature range extends from -25°C to 60°C, making it suitable for various industrial environments.
Yes, it is designed for DIN rail mounting, facilitating easy installation in electrical panels.
It has an IP20 rating for terminals and an IP50 rating for the enclosure, providing resistance to dust and environmental factors.
It complies with IEC 60068-2-30, UL, GL, CCC, CSA, and RoHS standards, ensuring high quality and safety.
It is designed for industrial and automation applications, including factory automation and electrical engineering.
It offers a mechanical lifespan of 30 million operations, ensuring long-term reliability in use.
It includes LED status indicators that provide clear operational feedback for maintenance and troubleshooting.
This model is part of the EMR6 series of monitoring relays by Eaton.
