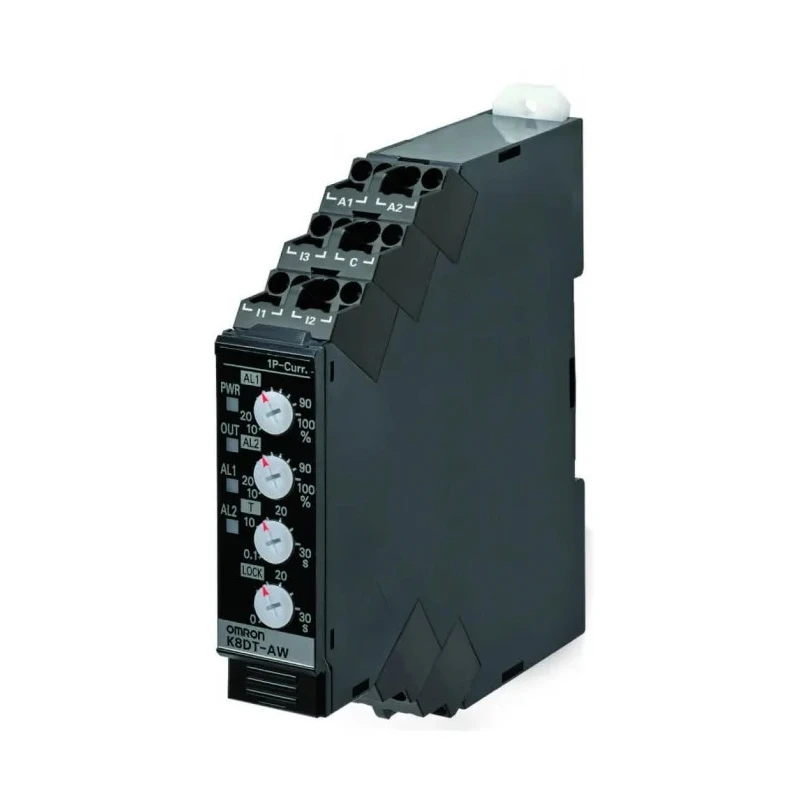

Omron Monitoring Relay 1 Phase SPDT DIN Rail, 2mA to 500mA, 20.4 → 26.4 V dc AC 26.4V, Time Delay 250 ms K8DT-AW1CD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 90mm |
| Length | 90mm |
| Model | K8DT-AW1CD |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | K8DT-AW |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Time Delay | 250 ms |
| Minimum Operating Temperature | +60°C |
| Terminal type | Push-in |
| Electrical Phase | 1 |
| Supply DC Voltage | 20.4 → 26.4 V dc |
| Supply AC Voltage | 26.4V ac |
| Minimum Current Sensed | 2mA |
| Maximum Current Sensed | 500mA |
| Current Sensitivity | Undercurrent, Overcurrent |
| Relay Contact Current | 2, 500mA |
Key Features
- Monitors currents ranging from 2 mA to 500 mA with high sensitivity.
- Equipped with SPDT contact for flexible control circuit switching.
- Features push-in terminals for fast, tool-free wiring connections.
- Includes a 250 ms time delay to tolerate short transient current fluctuations.
- Supports low voltage AC/DC supply from 20.4 to 26.4 V DC or 26.4 V AC.
- Compact DIN rail mounting for easy installation in control panels.
- Rated IP20 ensuring safe indoor use in industrial environments.
- Operates in temperature range from -20°C to 60°C for reliable industrial application.
Product Description
Omron K8DT-AW1CD is a compact monitoring relay designed for single-phase electrical systems, offering precise detection of undercurrent and overcurrent conditions. It operates with a supply voltage range of 20.4 to 26.4 V DC and 26.4 V AC, providing versatile options for low-voltage applications.
This relay incorporates a SPDT contact configuration for flexible switching of control circuits. Its push-in terminal design enables quick and tool-free wiring, simplifying installation and maintenance. The 250 ms time delay allows transient current fluctuations to be ignored, ensuring stable monitoring performance.
Designed with DIN rail mounting, the K8DT-AW1CD is suitable for compact industrial control panels and automation cabinets where space is limited. The device supports a current sensing range from 2 mA up to 500 mA, ideal for motor protection and fault monitoring in factory automation and process control applications.
The relay is rated with IP20 protection for safe indoor use and can operate reliably in environments from -20°C up to 60°C. It conforms to important electrical standards including UL 60947-5-1, EN 60947-5-1, and complies with RoHS directives, ensuring electrical safety and environmental compliance.
Monitors currents from 2 mA to 500 mA for precise control. SPDT contact provides versatile switching capability. Push-in terminal technology for easy installation. 250 ms time delay allows transient tolerance. Operates with 20.4 to 26.4 V DC / 26.4 V AC supply.
DIN rail mount suitable for compact automation panels. IP20 rated for safe indoor environments. Wide operating temperature from -20°C to 60°C. Complies with UL 60947-5-1, EN 60947-5-1 electrical standards and RoHS.
This monitoring relay is extensively used in industrial, electrical distribution, automation, HVAC, manufacturing, and process control applications where reliable current sensing and protection are critical.
Discover more high-quality Monitoring Relays and electrical components in EnvMart’s comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model monitors currents ranging from 2 mA to 500 mA, allowing for precise detection of undercurrent and overcurrent conditions.
It operates with a supply voltage range of 20.4 to 26.4 V DC and 26.4 V AC, making it versatile for low-voltage applications.
This unit features a Single Pole Double Throw (SPDT) contact configuration, providing flexible switching capabilities for control circuits.
The K8DT-AW1CD measures 90 mm in height, 90 mm in length, and 17.5 mm in width, making it suitable for compact installations.
It includes a 250 ms time delay, which allows it to tolerate short transient current fluctuations during operation.
This monitoring relay is designed for DIN rail mounting, facilitating easy installation in control panels and automation cabinets.
The K8DT-AW1CD has an IP20 rating, ensuring safe indoor use in industrial environments.
It operates reliably in a temperature range from -20°C to 60°C, suitable for various industrial applications.
This model is equipped with push-in terminals, allowing for fast and tool-free wiring connections.
It conforms to important electrical standards including UL 60947-5-1 and EN 60947-5-1, and complies with RoHS directives.
This monitoring relay is commonly used in industrial, electrical distribution, automation, HVAC, manufacturing, and process control applications.
This monitoring relay is designed for single-phase electrical systems, making it suitable for various low-voltage applications.
