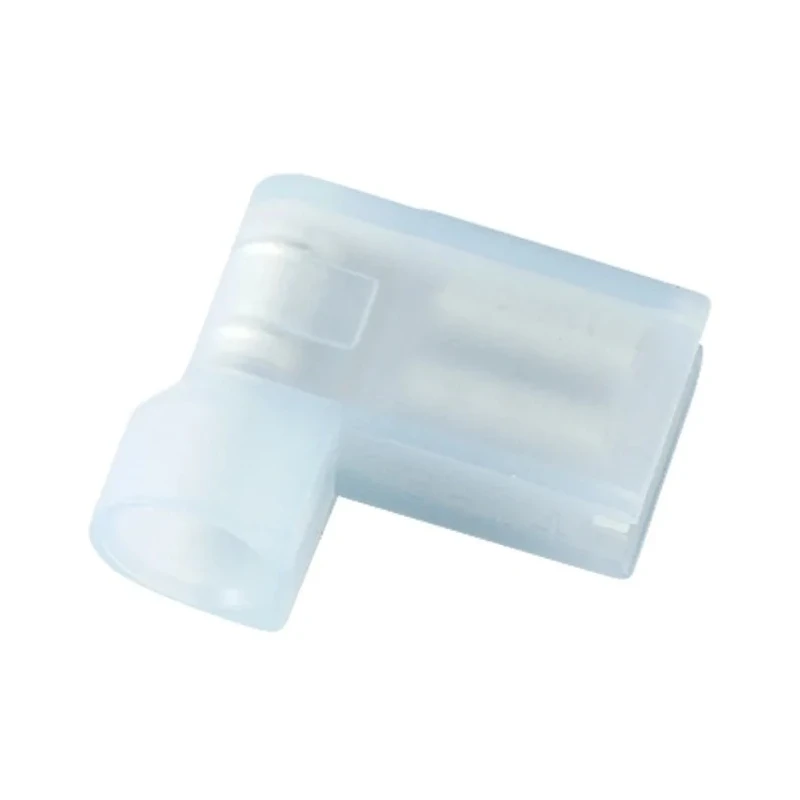

RS PRO Blue Insulated Female Spade Connector 0.5 x 4.75 mm Tab Size 16 AWG to 14 AWG 178-8340

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Blue Insulated Female Spade Connector 0.5 x 4.75 mm Tab Size 16 AWG to 14 AWG 178-8340

Name: RS PRO Blue Insulated Female Spade Connector 0.5 x 4.75 mm Tab Size 16 AWG to 14 AWG 178-8340
Brand: RS PRO
SKU: 153816
Price: 0.1 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	300 V max
Brand	RS PRO
Colour	Blue
Orientation	Angled
Model	178-8340
Gender	Female
Insulation	Insulated
Overall Length	15.2mm
Contact Material	Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	1.5mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Per Unit, RS stock no	178-8340
RS stock no	270-7591
Tab Width	4.75mm
Tab Thickness	0.5mm
Tab Size	0.5 x 4.75 mm

Key Features

This female spade connector features high-quality brass contacts ensuring excellent conductivity.
The nylon insulation offers protection against electrical shocks and environmental elements.
Crimp termination type allows secure wire connections using standard crimping tools.
Designed with an angled orientation for ease of installation in tight spaces.
Rated for a maximum voltage of 300 V, suitable for various electrical servicing applications.
Color-coded blue to indicate wire size compatibility for quick identification.
Compact overall length of 15.2 mm facilitates use in automotive and industrial setups.
Offers a protective shield to prevent dust and liquids from compromising connection quality.

Product Description

RS PRO 178-8340 Blue Insulated Female Spade Connector is a high-quality crimp terminal designed for secure and efficient wire terminations. Featuring brass contacts plated with tin, it provides excellent conductivity and corrosion resistance. The nylon insulation fully encloses the connector, ensuring safety against electrical hazards and environmental factors.

The connector is constructed with a 0.5 mm thickness and 4.75 mm width tab, compatible with wire sizes ranging from 16 AWG to 14 AWG (1.5 mm² to 2.5 mm²). Its angled orientation enhances accessibility, making it ideal for challenging installation environments common in automotive, electrical servicing, and industrial machinery applications.

Rated for a maximum voltage of 300 V, this spade connector is built for durability and reliability. The blue color coding simplifies wire gauge identification during assembly and maintenance. With an overall length of 15.2 mm, it offers a compact design without compromising performance.

High-quality brass contact material with tin plating for corrosion resistance. Fully insulated with durable nylon for electrical safety. Crimp termination type simplifies secure installation with crimping pliers. Angled design for ease of use in tight or inaccessible spaces.

Color-coded blue to quickly identify compatible wire sizes (16 AWG to 14 AWG). Compact 15.2 mm length suitable for automotive and industrial electrical applications. Rated up to 300 V max for versatile electrical service usage.

Protective shield reduces exposure to dust, moisture, and contaminants.

This RS PRO spade connector is suitable for various use cases including automotive wiring harnesses, industrial control panels, electrical servicing, and manufacturing assembly lines requiring dependable wire connections.

Available per unit with RS stock number 178-8340, it ensures uniform quality and compatibility across installations. Explore more Spade Connectors and electrical components from RS PRO in the Electronics & Electricals category on EnvMart for your industrial needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum voltage rating for this spade connector is 300 V.

This model is compatible with wire sizes ranging from 16 AWG to 14 AWG, which corresponds to 1.5 mm² to 2.5 mm².

The overall length of this spade connector is 15.2 mm.

This connector uses a crimp termination type for secure wire connections.

The connector features brass contacts plated with tin for excellent conductivity and corrosion resistance, while the insulation is made of durable nylon.

The angled orientation of this model enhances accessibility, making it easier to install in tight or challenging spaces.

The tab size of this spade connector is 0.5 x 4.75 mm.

Yes, this spade connector is suitable for automotive wiring harnesses and other electrical servicing applications.

This connector includes a protective shield that reduces exposure to dust, moisture, and contaminants, ensuring connection quality.

This spade connector is female gendered, designed to fit onto male spade terminals.

This spade connector is manufactured in Taiwan.

The insulation material used in this connector is nylon, which provides safety against electrical hazards.
