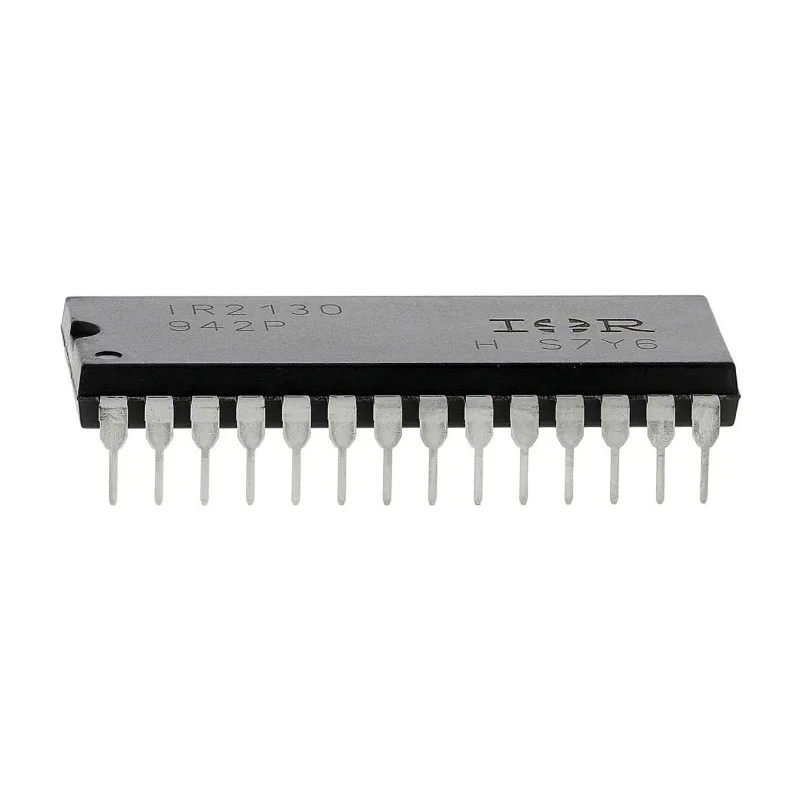

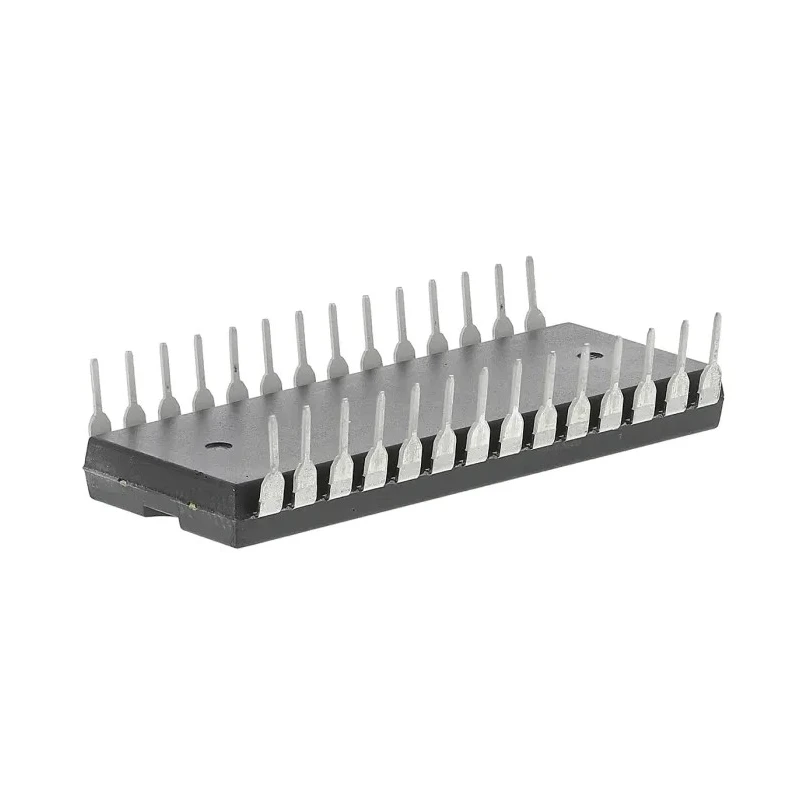

Infineon MOSFET Gate Driver 6 Outputs 500 mA 28-Pin PDIP 20V IR2130PBF

Infineon IR2130PBF MOSFET Gate Driver is a precision power management integrated circuit designed to drive MOSFETs and IGBTs in three-phase inverter applications. This device offers six outputs, each capable of providing 500 mA output current, ideal for powering high-performance switches in industrial motor drives, HVAC systems, and power supplies.

Enclosed in a 28-Pin PDIP package, the IR2130PBF operates at a minimum and maximum supply voltage of 20V. Its robust design supports operating temperatures ranging from -40°C to 125°C, making it reliable in demanding environments.

With fast switching characteristics, this gate driver features an 80 ns rise time and 35 ns fall time, reducing power losses and improving efficiency. The device is compatible with CMOS and TTL logic levels, ensuring easy interfacing with standard digital controllers.

The through-hole mount design facilitates straightforward PCB assembly and prototyping. Its compact form factor (39.75 mm length, 14.73 mm width, and 6.35 mm height) allows integration into space-constrained designs.

The IR2130PBF is part of the well-established IR2130 series, trusted for powering three-phase bridge inverters with a maximum blocking voltage of 600 V. It is suitable for applications in industrial automation, electric motor drives, renewable energy inverters, and automotive electronic systems requiring robust and efficient power switching.

Designed for controlling MOSFET and IGBT power devices. Supports three-phase applications with full-bridge drivers. Provides 500 mA output current per channel for effective gate drive. Operating temperature range from -40°C to 125°C ensuring reliability.

Fast rise time of 80 ns and fall time of 35 ns for efficient switching. 28-Pin PDIP package with through-hole mounting style. Compatible with CMOS and TTL signal levels for low-side control. Compact dimensions suitable for varied industrial applications.

Series IR2130 ensures proven performance and compatibility. Widely used in industrial, automotive, and power management systems.

This Infineon MOSFET Gate Driver IR2130PBF is available with full technical support and documentation. Browse our electronics category for similar power management ICs and components to support your design needs on EnvMart.
