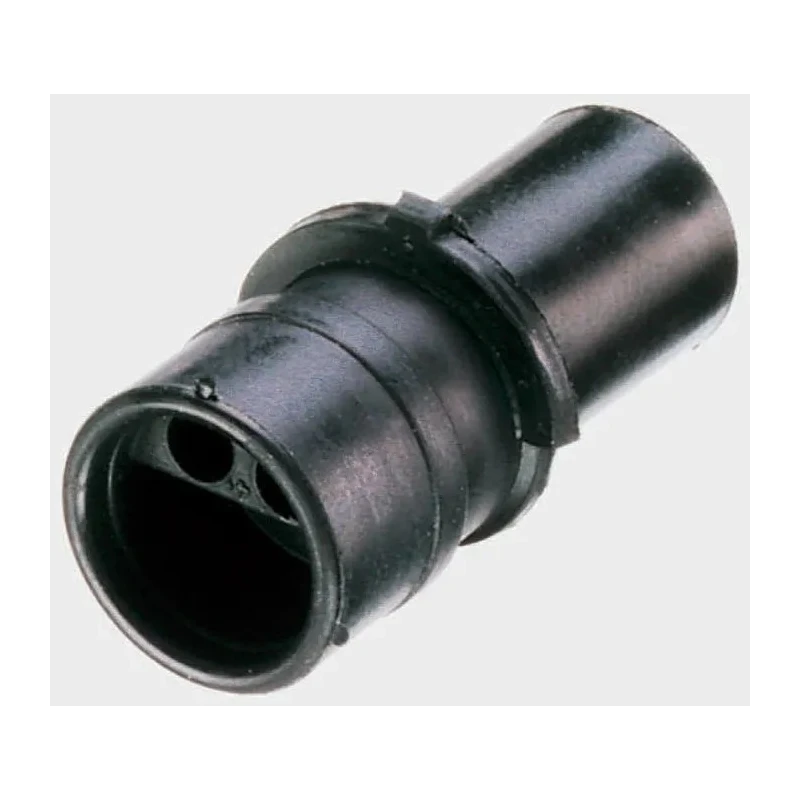

ITT Cannon Circular Connector Cable Plug Female 5 Contacts IP67 Sure Seal Series 1200V 8A 120-8552-005
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1200V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 8A |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Perbunan |
| Contact Material | Copper Alloy |
| Series | Sure Seal |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 5 |
| Contact Plating | Silver |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Shell Size | 25.3 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- The connector features a female contact gender and supports 8A current at 1200V voltage rating.
- It is designed with a bayonet mating type and crimp termination for secure connections.

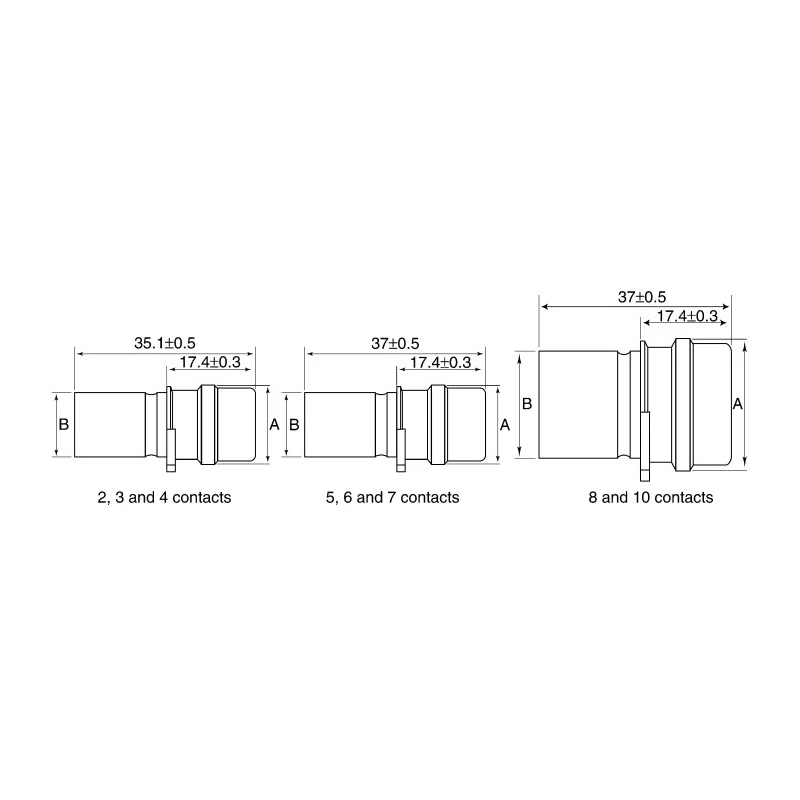

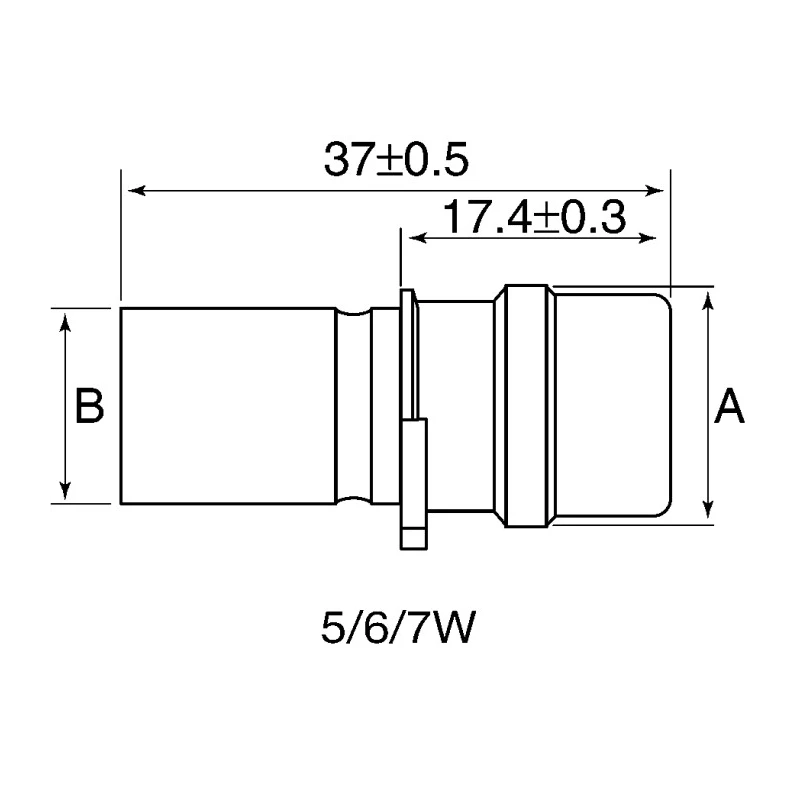

- The connector shell size is 25.3 mm with a straight orientation for cable mounting.
- Its housing is made of Perbunan material and contacts are copper alloy plated with silver.
- Rated to operate between -40°C to 105°C with reliable sealing against fluids and environmental hazards.
- The product is suitable for industrial, automotive, and harsh environment electronic applications.
- IP67 rating ensures protection against dust and water ingress, maintaining performance in challenging conditions.
Product Description
ITT Cannon 120-8552-005 Circular Connector is a high-performance cable plug featuring 5 contacts with female polarity in the Sure Seal series, designed for industrial and automotive applications requiring high safety and reliability.
This connector supports a voltage rating of 1200V and carries currents up to 8A, ensuring robust power delivery. The bayonet mating mechanism and crimp termination type provide secure and vibration-resistant connections, vital in demanding environments.
The housing is constructed from Perbunan, a durable material offering resistance against chemicals such as brake fluid, gasoline, diesel, antifreeze, and steam cleaning agents. The contacts, made from copper alloy and plated with silver, ensure low contact resistance and longevity.
Its IP67 rating guarantees dust-tight sealing and protection against immersion in water up to 1 meter, maintaining integrity in industrial, automotive, and harsh environmental use cases. Operating temperatures range from -40°C to 105°C, suitable for extreme temperature conditions encountered in automotive and industrial settings.
The connector's shell size measures 25.3 mm, and its straight orientation facilitates cable mounting in tight spaces while ensuring ease of installation. The polarized plug design prevents mis-mating through stepped planes on mating faces, enhancing connection reliability.
The connector supports 5 female contacts suitable for industrial use. Durable Perbunan housing resists harsh chemicals and environmental factors. Secured by bayonet mating type and crimp termination for reliable connections.
Rated IP67 for dust and water ingress protection in demanding environments. Operates across a wide temperature range from -40°C to 105°C. Silver-plated copper alloy contacts provide excellent electrical performance. Ideal for automotive, industrial, and harsh environmental electronic applications.
This ITT Cannon Sure Seal connector ensures dependable performance and longevity in conditions requiring strict safety standards and corrosion resistance. These connectors are integral to automotive wiring harnesses, industrial machinery, and equipment subjected to vibration and environmental exposure.
Explore more Industrial Circular Connectors at EnvMart to find comprehensive connectivity solutions tailored to your application needs.
