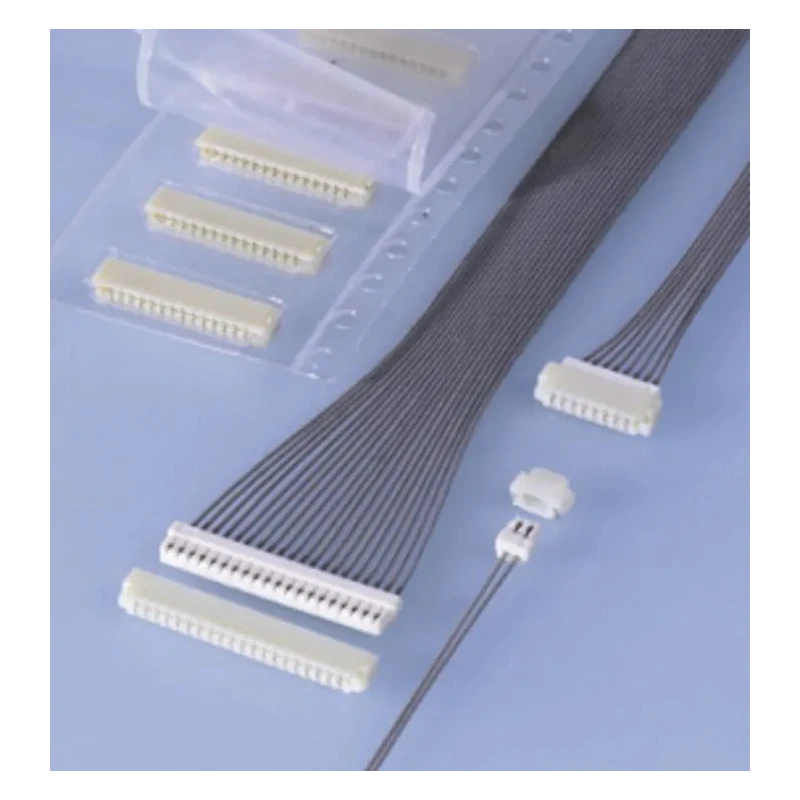

JST SUR Series Right Angle PCB Header 8 Contacts 0.8 mm Pitch 1 Row Shrouded SM08B-SURS-TF (LF)(SN)

JST SM08B-SURS-TF (LF)(SN) SUR Series Right Angle PCB Header is engineered for high-density electronic assemblies requiring compact and reliable wire-to-board connections. This PCB header features 8 contacts arranged in a single row with a fine 0.8 mm pitch, ideal for minimizing PCB real estate while maintaining robust signal integrity.

The shrouded design enhances contact protection and prevents accidental disengagement. Constructed with a polyamide housing and copper alloy contacts, this connector balances mechanical strength with excellent electrical performance. The contacts are plated with copper for enhanced conductivity and corrosion resistance.

This header operates safely at voltages up to 30 V and supports currents of 200 mA, suitable for low power electronic circuits. The right angle orientation facilitates optimized PCB layouts allowing for side-entry connections, providing designers with layout flexibility in compact electronic equipment.

Operating temperature ranges from -25°C to 85°C, making it suitable for varied industrial, commercial, and laboratory environments. The termination is designed for solder mounting with tail pins 0.45 mm long ensuring secure and reliable joints. Male contact gender design complements female connectors in mating assemblies.

This product finds applications across industries including consumer electronics, telecommunications, instrumentation, and control systems. Its efficient design contributes to space-saving and improved mechanical stability in circuit board assemblies.

Features a compact 1 row shrouded design enhancing board protection. Pitch of 0.8 mm reduces board space requirements efficiently. Constructed from polyamide housing and copper alloy contacts for durability. Supports operating voltage up to 30 V and current rating of 200 mA.

Right angle orientation optimizes PCB layout and connectivity. Mating contact length tailored at 0.45 mm for reliable solder termination. Operates reliably within -25°C to 85°C temperature range. Male contact gender with copper plating ensures excellent conductivity.

Designed for wire-to-board connection with solder termination type. Manufactured in Malaysia ensuring quality standards.

Choose JST SUR Series for reliable electronic circuit connections and robust PCB Header solutions. Explore more connectors and electronic components on EnvMart for your industrial and commercial needs.
