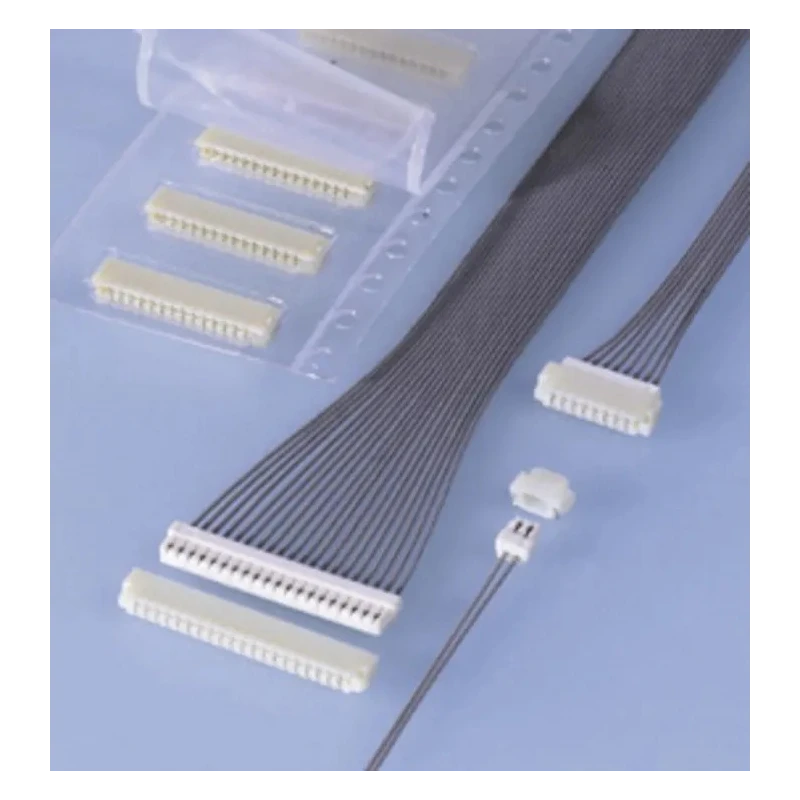

JST SUR Series Right Angle PCB Header, 4 Contacts, 0.8 mm Pitch, 1 Row, Shrouded SM04B-SURS-TF (LF)(SN)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 30V |
| Brand | JST |
| Orientation | Right Angle |
| Current | 200mA |
| Model | SM04B-SURS-TF (LF)(SN) |
| Mount Type | PCB |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | SUR |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.8mm |
| Contact Plating | Copper |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 0.45mm |
Key Features
- Supports a current rating of 200mA for reliable electrical performance.
- Features a compact 0.8 mm pitch and 1-row configuration to minimize PCB space.
- Constructed with durable polyamide housing material for robustness.
- Right angle orientation facilitates board mounting in constrained spaces.
- Shrouded design ensures secure connection and insulation.
- Copper alloy contacts with copper plating provide excellent conductivity.
- Designed for solder termination with a 0.45 mm tail pin length.
- Operates within a temperature range of -25°C to 85°C for diverse environment use.
Product Description
JST SM04B-SURS-TF (LF)(SN) is a right angle PCB header from the SUR series, engineered specifically for wire-to-board connections with a 0.8 mm pitch and 4 contact points arranged in a single row. This shrouded header provides enhanced insulation and mechanical protection, making it ideal for compact and reliable electronic assemblies.
The header supports a continuous current of 200mA and is designed for operation between -25°C and 85°C, suitable for various industrial and commercial electronic environments. Its polyamide housing material ensures robust durability and resistance to environmental factors.
Featuring copper alloy contacts with copper plating and a solder termination type, the SM04B-SURS-TF (LF)(SN) provides excellent electrical conductivity and secure soldering to printed circuit boards. The 0.45 mm tail pin length optimizes easy and reliable PCB integration.
Its right angle orientation and compact dimensions significantly reduce the PCB space required by 34% compared to conventional 1.0 mm pitch connectors, supporting efficient PCB design and mechanical assembly.
Current rating of 200mA for dependable operation. Compact 0.8 mm pitch and 1-row contact layout. Durable polyamide housing enhances mechanical stability. Right angle orientation for space-saving layout designs. Shrouded construction for improved insulation and connection security.
Copper alloy contacts with copper plating ensure excellent conductivity. Solder termination with 0.45 mm tail pin length. Temperature range from -25°C to 85°C suits varied applications. Manufactured in Malaysia meeting stringent quality standards.
This PCB header is widely used in electronic components manufacturing, power and connectors sectors, and is suitable for industrial, laboratory, and commercial applications requiring stable and compact wire-to-board connections.
Explore more PCB connectors and headers in the Electronics Components category at EnvMart for reliable and quality products.
