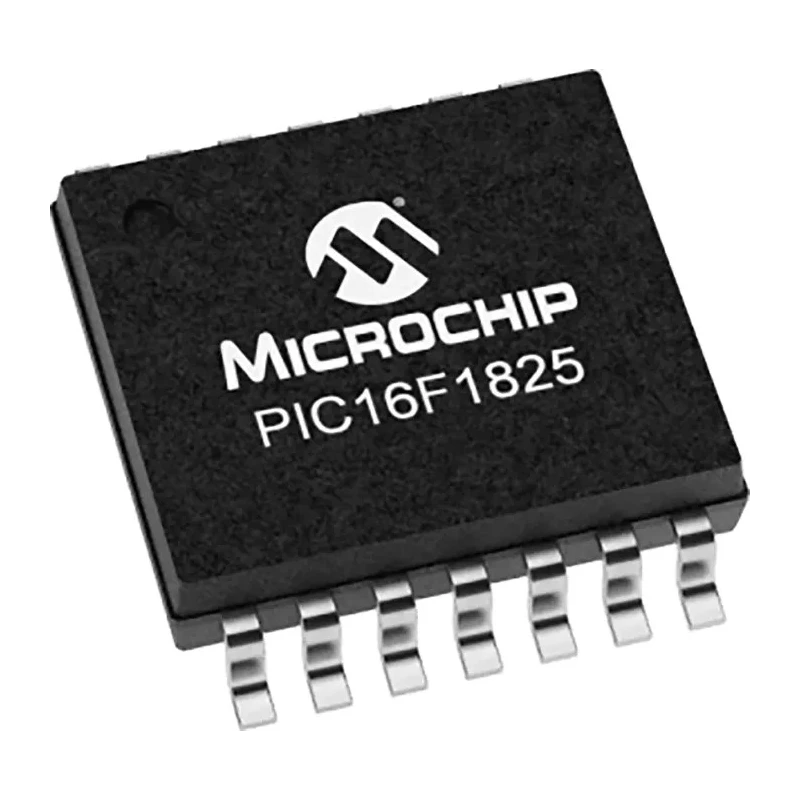

Microchip 8 bit PIC16F Microcontroller 14kB FLASH 32 MHz 14-Pin TSSOP PIC16F1825T-I/ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | PIC16F1825T-I/ST |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Interface Type | USART, SPI |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 17 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Enhanced mid-range 8-bit CPU with 49 instructions for efficient processing.
- Operates at a maximum clock frequency of 32 MHz.
- 14 kB of FLASH program memory and 1 kB of RAM available.
- Supports multiple interfaces including USART and SPI for versatile communication.
- Wide operating voltage from 1.8 V to 5.5 V ensures compatibility with various applications.
- Can operate reliably between -40°C and 85°C for extended temperature ranges.
- Includes 17 programmable I/Os and 2 timers for flexible control tasks.
- Built-in 8 10-bit ADC channels and 5-bit DACs for precise analogue functions.
Product Description
Microchip PIC16F1825T-I/ST is an advanced 8-bit PIC microcontroller designed for embedded control applications. Featuring a powerful 14kB FLASH memory and a maximum speed of 32 MHz, this device offers reliable performance for industrial, automotive, and consumer electronics.
It integrates a 49-instruction enhanced mid-range CPU core with a compact 14-pin TSSOP surface-mount package suitable for space-constrained designs. With 17 programmable I/Os, 2 timers, and high-precision analog components including 8 channels of 10-bit ADCs and dual analogue comparators, it supports complex analog and digital functionalities.
This microcontroller supports multiple communication interfaces such as USART and SPI, enabling seamless integration into various electronic systems. Operating voltage ranges from 1.8 V up to 5.5 V, and it is rated for temperature operation from -40°C to 85°C, making it suitable for harsh environments.
The device is compliant with RoHS standards and automotive standard AEC-Q100, ensuring high reliability and environmental safety. Its small form factor dimensions of approximately 5.1mm length, 4.5mm width, and 1.05mm height facilitate easy PCB layout and compact product designs.
Enhanced mid-range 8-bit CPU with 49 instructions for efficient processing. Operates at a maximum clock frequency of 32 MHz. 14 kB of FLASH program memory and 1 kB of RAM available. Supports multiple interfaces including USART and SPI for versatile communication.
Wide operating voltage from 1.8 V to 5.5 V ensures compatibility with various applications. Can operate reliably between -40°C and 85°C for extended temperature ranges. Includes 17 programmable I/Os and 2 timers for flexible control tasks.
Built-in 8 10-bit ADC channels and 5-bit DACs for precise analogue functions. Compliant with RoHS standards and automotive grade AEC-Q100 certified. Compact 14-pin TSSOP surface-mount package with dimensions 5.1mm x 4.5mm x 1.05mm.
This microcontroller is ideal for applications in industrial control systems, automotive electronics, consumer devices, and other embedded systems requiring robust processing power with low power consumption. Its automotive qualification (AEC-Q100) adds confidence for use in critical automotive environments.
Explore Microchip Microcontrollers on EnvMart for reliable components to power your next electronic project or product.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features a program memory size of 14 kB.
This microcontroller supports USART and SPI interfaces for versatile communication.
The operating voltage range is from 1.8 V to 5.5 V.
It includes 17 programmable I/Os for flexible control tasks.
The operating temperature range is from -40°C to 85°C.
Its dimensions are approximately 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.
It has 8 channels of 10-bit ADCs for precise analog functions.
The package type is TSSOP (Thin Shrink Small Outline Package).
It complies with the automotive standard AEC-Q100.
The maximum power dissipation is 800 mW.
It uses an enhanced mid-range 8-bit CPU core with a RISC instruction set architecture.
