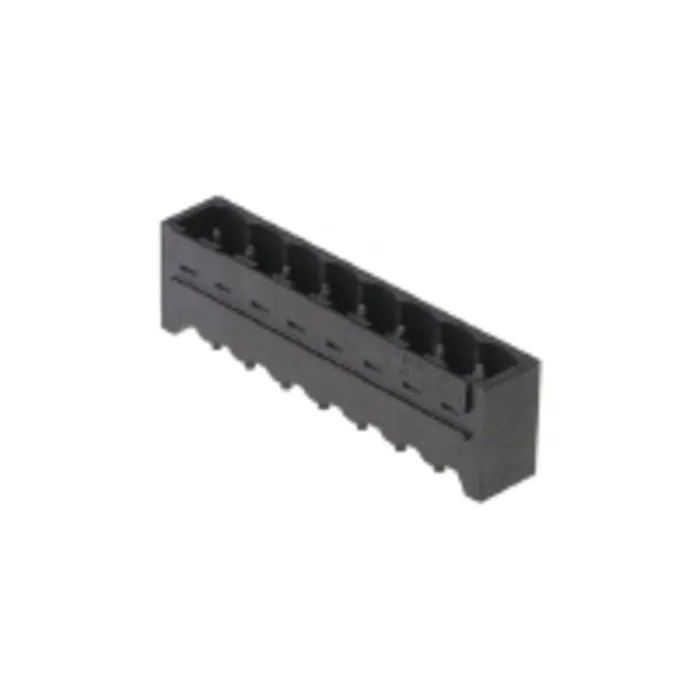

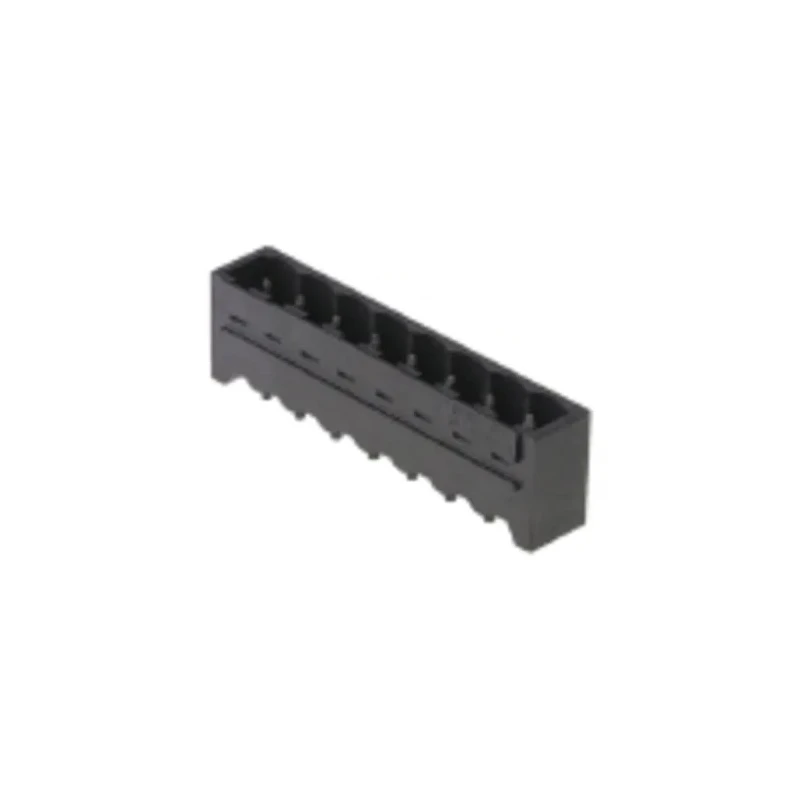

Weidmüller SL Series Pluggable Terminal Block, 6-Contact, 5.08 mm Pitch, 1 Row, 400V, 18.5A, Male Connector 1838250000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | Straight |
| Current | 18.5A |
| Length | 15.2mm |
| Depth | 8.5mm |
| Width | 32.38mm |
| Housing Material | Copper Magnesium Alloy, Liquid Crystal Polymer Fibreglass |
| Series | SL |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 6 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- Supports a maximum current of 18.5A for robust electrical connections.
- Operates at up to 400V voltage rating suitable for various electronic applications.
- Constructed with copper magnesium alloy and liquid crystal polymer fiberglass housing for durability.
- Features a male connector, straight orientation with solder wire connection.
- Compact form factor with dimensions 32.38mm width, 15.2mm length, and 8.5mm depth.
- High-temperature resistant design with 180° angled male header optimized for SMT processing.
- Solder flange option available to protect solder joints and withstand mechanical stress.
- Manufactured in Germany ensuring quality and compliance with industrial standards.
Product Description
Weidmüller 1838250000 SL Series Pluggable Terminal Block is designed for industrial and electronic use, featuring 6 contacts arranged in a single row with a 5.08 mm pitch, rated for 18.5A current and 400V voltage. The male connector with straight orientation and solder wire connection method ensures stable and secure connections.
Constructed from copper magnesium alloy and liquid crystal polymer fiberglass, this terminal block offers excellent mechanical strength and thermal resistance, optimized for SMT processing with a 180° angled male header. A solder flange option substitutes screw fastening to the PCB and protects solder joints from mechanical stress, available with 1.5 mm or 3.2 mm solder pins.
The compact design dimensions of 32.38 mm width, 15.2 mm length, and 8.5 mm depth allow efficient PCB mounting and reduce solder paste usage, supporting double-sided PCB options without sacrificing mounting strength.
Manufactured in Germany, the product meets high-quality standards and is suitable for applications in industrial machinery, manufacturing equipment, automation systems, power electronics, and other fields requiring reliable terminal blocks.
Supports 6 electrical contacts with 5.08 mm pitch in a single row layout. Rated current of 18.5A at 400V voltage for durable electrical performance. Housing consists of copper magnesium alloy and liquid crystal polymer fiberglass.
Features a straight, male connector with solder wire connection method. Compact dimensions enable optimized PCB space usage and mechanical stability. Offers solder flange option protecting solder joints against mechanical strain.
Optimized for SMT processing with 180° angled male header design. German manufacturing ensures high quality and reliability. Ideal for industrial, electronic components, and power connector applications. Explore more Pluggable Terminal Blocks from Weidmüller and related electronic components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 18.5A, making it suitable for robust electrical connections.
It operates at a voltage rating of up to 400V, suitable for various electronic applications.
The compact dimensions of this unit are 32.38mm in width, 15.2mm in length, and 8.5mm in depth.
The housing is constructed from copper magnesium alloy and liquid crystal polymer fiberglass, providing mechanical strength and thermal resistance.
It features 6 contacts arranged in a single row with a 5.08mm pitch.
This terminal block has a male connector with a straight orientation and uses a solder wire connection method.
Yes, a solder flange option is available to protect solder joints and withstand mechanical stress, substituting screw fastening to the PCB.
The male connector is designed with a straight orientation, optimized for solder wire connections.
It is manufactured in Germany, ensuring compliance with high-quality industrial standards.
The contacts are arranged with a pitch of 5.08mm, suitable for various PCB applications.
This model is suitable for industrial machinery, manufacturing equipment, automation systems, and power electronics.
This terminal block belongs to the SL Series, known for its pluggable design and robust performance.
