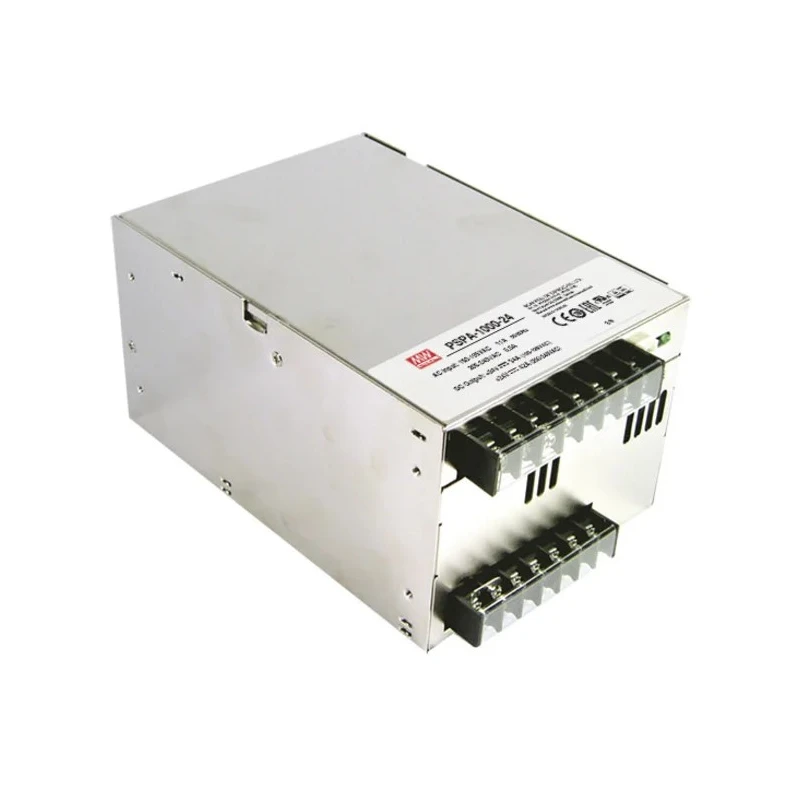

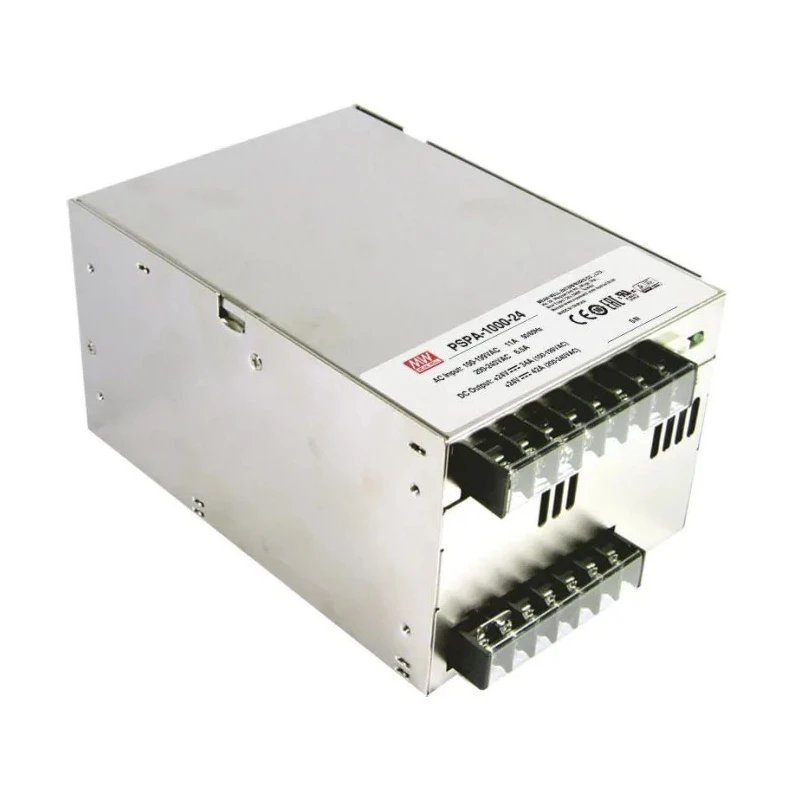

MEAN WELL PSPA-1000-24 Switching Power Supply 24V dc, 1.008 kW, 42A Output Current, Chassis Mount PSPA-1000-24
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Power | 1.008kW |
| Efficiency | 93.5% |
| Length | 170mm |
| Model | PSPA-1000-24 |
| Depth | 93mm |
| Gross Weight | 1.9kg |
| Width | 93mm |
| Mount Type | Chassis |
| Series | PSPA-1000 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 42A |
| Minimum Input Voltage | 90V ac |
Key Features
- Provides a maximum output voltage of 24V DC.
- Supports a universal input voltage range of 90V AC to 264V AC or 127V DC to 370V DC.
- High efficiency rated at 93.5% ensuring minimal power loss.
- Built-in active power factor correction (PFC) enhances energy efficiency.
- Operates in a temperature range from -20°C to 70°C, suitable for diverse environments.
- Includes built-in remote sensing and ON-OFF control functionality.
- Equipped with overload, overvoltage, over temperature, and short circuit protections.
- Forced air cooling via built-in DC fan maintains optimal operating temperature.
Product Description
MEAN WELL PSPA-1000-24 switching power supply is a high-performance AC to DC single output unit delivering 24V DC at 42A with a power capacity of 1.008 kW. Designed for chassis mounting, this unit boasts a wide universal input voltage range of 90VAC to 264VAC or 127VDC to 370VDC, allowing versatile application in various industrial and commercial environments.
This power supply integrates advanced features such as built-in remote sense to compensate for voltage drops, active power factor correction (PFC) for reduced harmonic distortion, and remote ON-OFF control to enhance operational flexibility. The device is equipped with comprehensive protection mechanisms including overload, overvoltage, over temperature, and short circuit protections to ensure reliability and safety during demanding usage.
Operating efficiently at 93.5%, the PSPA-1000-24 is cooled by an internal DC fan which enables forced air cooling to maintain optimal temperature. It functions reliably in extreme ambient temperatures from -20°C to +70°C. The power supply meets numerous international certifications including EAC TP TC 00, UL 62368-1, TUV EN 62368-1, IS 13252(Part1)/IEC 60950-1, CSA C22.2 No. 62368-1, CCC GB4943.1, BSMI CNS143361, and AS/NZS62368.1, ensuring compliance with global safety standards.
Applications for the MEAN WELL PSPA-1000-24 include communication systems, industrial control, factory automation, laser-related machinery, RF applications, test and measurement instruments, and burn-in facilities. Its robust design and high output stability make it suitable for a broad range of industrial, laboratory, commercial, and manufacturing installations requiring reliable regulated power.
Maximum output voltage at 24V DC provides stable power delivery. Wide input voltage range supports compatibility with various power sources. High efficiency reduces energy consumption and operating costs. Comprehensive protective features ensure safe operation under fault conditions.
Robust cooling system extends lifespan and reliability. International certification compliance guarantees quality and safety. Ideal for communication, industrial, and automation system power needs. Compact chassis mount design for convenient installation.
Manufactured in Taiwan, Province Of China, assuring quality standards. Explore the complete range of high-quality Switching Power Supplies and electronic power solutions available on EnvMart to meet your industrial power system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 24V DC.
It has a power capacity of 1.008 kW.
The efficiency of the PSPA-1000-24 is rated at 93.5%.
It operates in a temperature range from -20°C to 70°C.
The unit includes overload, overvoltage, over temperature, and short circuit protections.
It features forced air cooling via a built-in DC fan to maintain optimal operating temperature.
The dimensions are 170mm in length, 93mm in width, and 93mm in depth.
It is suitable for communication systems, industrial control, factory automation, and test and measurement instruments.
The PSPA-1000-24 is designed for chassis mounting.
It is manufactured in Taiwan, Province of China.
