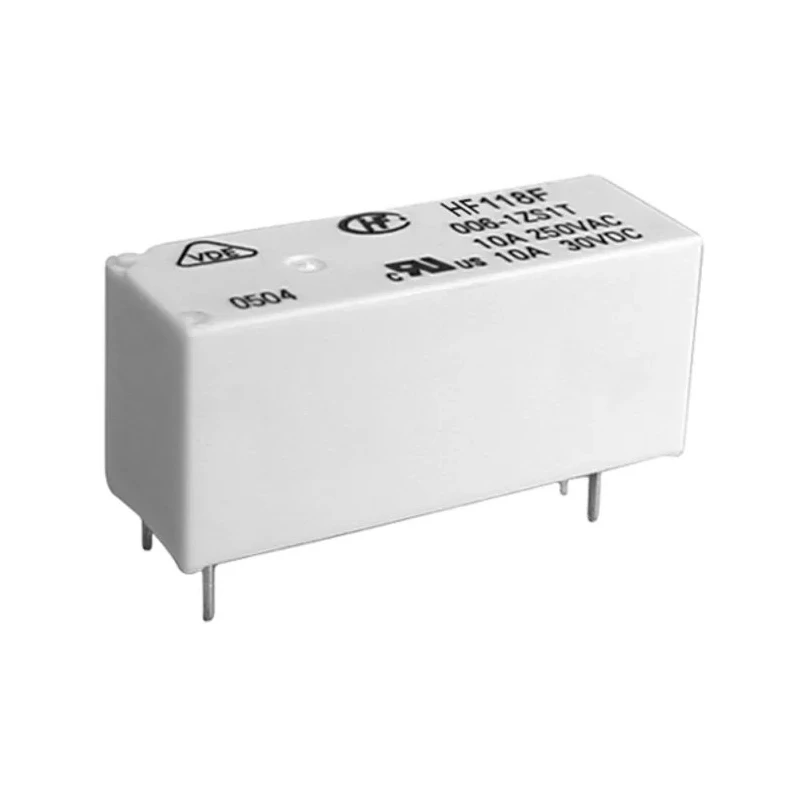

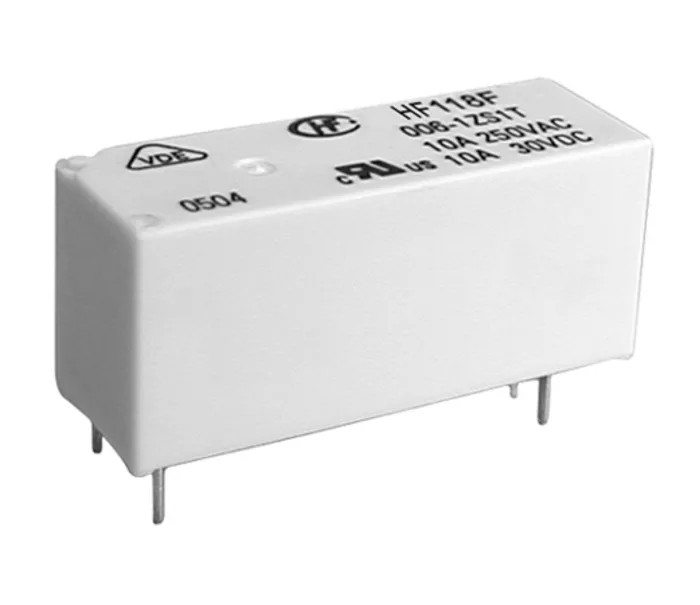

Hongfa Europe GMBH PCB Power Relay 24V DC Coil 10A Switching Current SPST HF118F/024-1ZS1T(136)

Hongfa Europe GMBH HF118F/024-1ZS1T(136) PCB Power Relay is a high-performance single-pole single-throw (SPST) non-latching relay with a 24V DC coil designed for PCB mounting. It provides reliable switching with a maximum current capacity of 10 Amps and supports a range of switching voltages, including 125V DC and 440V AC. This compact relay features silver alloy contacts that offer excellent electrical endurance and low resistance, making it suitable for high-reliability applications.

The relay operates effectively within a temperature range of -40°C to 85°C, offering robust performance in harsh environments. Its design ensures low power consumption with a coil power of only 290mW and a coil resistance of 2.4 kΩ. The device is capable of withstanding high surge voltages up to 10kV and provides an isolation voltage between coil and contacts of 5kV, ensuring enhanced safety and reliability in industrial settings.

The compact size of the relay (28.5 mm length, 10.1 mm width, and 12.5 mm height) allows efficient board space utilization. This relay complies with RoHS environmental standards, confirming its eco-friendly manufacturing and suitability for global markets.

Typical applications include use as a control device in the automotive industry, household appliances, industrial machinery, and telecommunication equipment. Its high mechanical endurance with a life expectancy of up to 10 million cycles makes it a dependable component for long-term use in demanding electronic systems.

The relay features a single-pole single-throw (SPST) contact configuration suitable for various industrial applications. Designed for PCB mounting with PCB pin terminals ensuring secure connection. Operates within a temperature range of -40°C to 85°C, suitable for demanding environments.

It has silver alloy contacts providing high electrical endurance and low contact resistance of 100 milliohms. Coil resistance is 2.4kΩ with a coil power consumption of 290mW, optimizing energy efficiency. Supports switching voltages up to 125V DC and 440V AC with a switching power rating of 2.5 kVA.

Compact dimensions of 28.5mm length, 10.1mm width, and 12.5mm height allow board space saving. The relay offers high surge withstand voltage up to 10kV and isolation voltage between coil and contacts of 5kV. It is RoHS compliant, ensuring it meets environmental and safety standards.

Suitable for applications including automotive, household appliances, industrial machinery, and telecommunications. Explore more products in the Power Relay category at EnvMart to find compatible components for your industrial and electronic automation needs.
