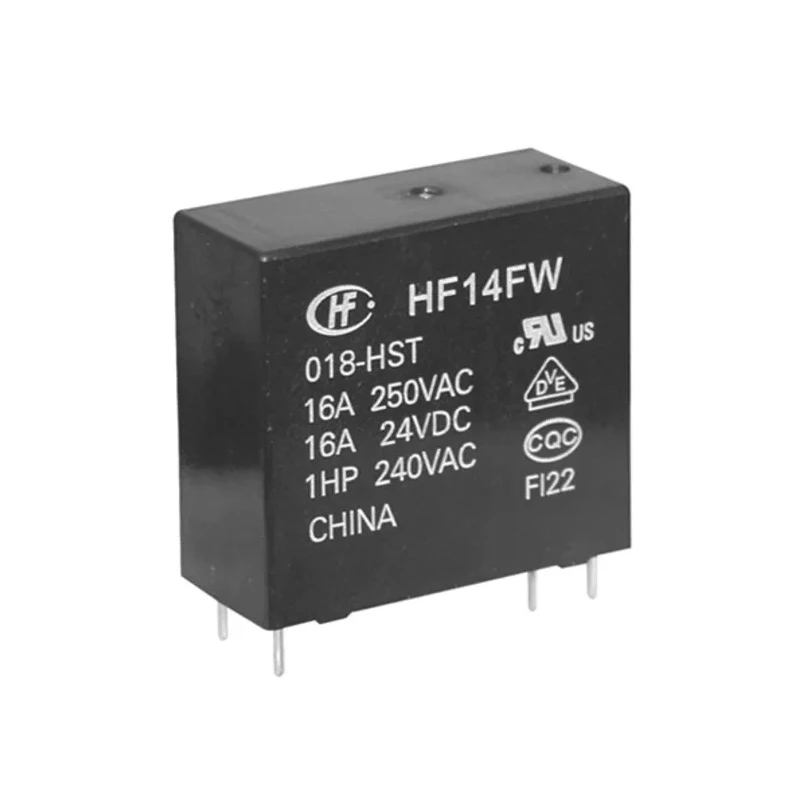

Hongfa Europe GMBH PCB Power Relay 5V DC Coil 20A Switching Current SPDT HF14FW/005-ZPTF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 26.5mm |
| Length | 29mm |
| Model | HF14FW/005-ZPTF |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF14FW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 36Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V |
| Coil Power | 720mW |
| Outline Dimensions | (29.0 x 13.0 x 26.5) mm |
Key Features
- This power relay supports 5V DC coil voltage for reliable operation.
- The SPDT (Single Pole Double Throw) contact configuration ensures versatile switching capability.
- It supports a maximum switching current of 20A, suitable for demanding electrical loads.
- Mount type is PCB with PCB pin terminals facilitating easy integration into circuit boards.
- Operating temperature range from -40°C to 85°C ensures wide environmental compatibility.
- Constructed with silver alloy contacts and features a coil resistance of 36Ω for optimized performance.
- Provides switching power up to 5.5 kVA and supports switching DC voltage up to 30V and AC voltage up to 277V.
- Compact outline dimensions (29 x 13 x 26.5) mm allow space-efficient design.
Product Description
Hongfa Europe GMBH HF14FW/005-ZPTF is a high-quality PCB Power Relay designed with a 5V DC coil and capable of switching currents up to 20A. This SPDT relay is ideally suited for industrial and commercial electronics applications requiring reliable power control and switching.
The relay features a robust silver alloy contact material combined with a coil resistance of 36Ω and coil power consumption of 720mW, ensuring efficient operation and longevity. It supports switching power up to 5.5 kVA with switching DC voltage rating of 30V and AC voltage up to 277V, making it versatile for various electrical circuits.
Its operating temperature range from -40°C to 85°C allows use in harsh environments, while the compact dimensions of 29.0 x 13.0 x 26.5 mm suit PCB mounting applications where space is limited. The relay is RoHS compliant, emphasizing environmentally responsible manufacturing standards. Variants include plastic-sealed and dust-protected types for enhanced protection against environmental factors.
This relay series includes 1 Form A, 1 Form B, and 1 Form C contact configurations, offering multiple switching options. It is widely used in industrial automation, electrical control systems, HVAC equipment, and other manufacturing and laboratory electronic systems.
Supports 5V DC coil voltage for efficient actuation. SPDT contact configuration offers flexible switching capability. 20A switching current capacity suitable for high-power applications. Compact PCB mount design with PCB pin terminals.
Wide operating temperature range from -40°C to 85°C for durable use. Silver alloy contacts ensure low contact resistance and high reliability. Switching power capacity up to 5.5 kVA. RoHS compliant, eco-friendly design and manufacturing.
Available in sealed and dust-protected variants for enhanced durability. Explore more Power Relays and related components at EnvMart to find suitable solutions for your industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 20A, making it suitable for demanding electrical loads.
This power relay operates with a coil voltage of 5V DC.
The outline dimensions of this relay are 29.0 mm in length, 13.0 mm in width, and 26.5 mm in height.
The contact configuration of this model is SPDT (Single Pole Double Throw), allowing for versatile switching capabilities.
The operating temperature range for this relay is from -40°C to 85°C, ensuring compatibility in various environments.
The contacts of this power relay are made from silver alloy, which ensures low contact resistance and high reliability.
This relay can handle a switching power capacity of up to 5.5 kVA.
It features PCB pin terminals, facilitating easy integration into circuit boards.
Yes, this model is RoHS compliant, indicating adherence to environmentally responsible manufacturing standards.
The coil resistance for this relay is 36Ω, which contributes to its efficient operation.
This relay is widely used in industrial automation, electrical control systems, HVAC equipment, and laboratory electronic systems.
Variants of this relay include plastic-sealed and dust-protected types for enhanced protection against environmental factors.
