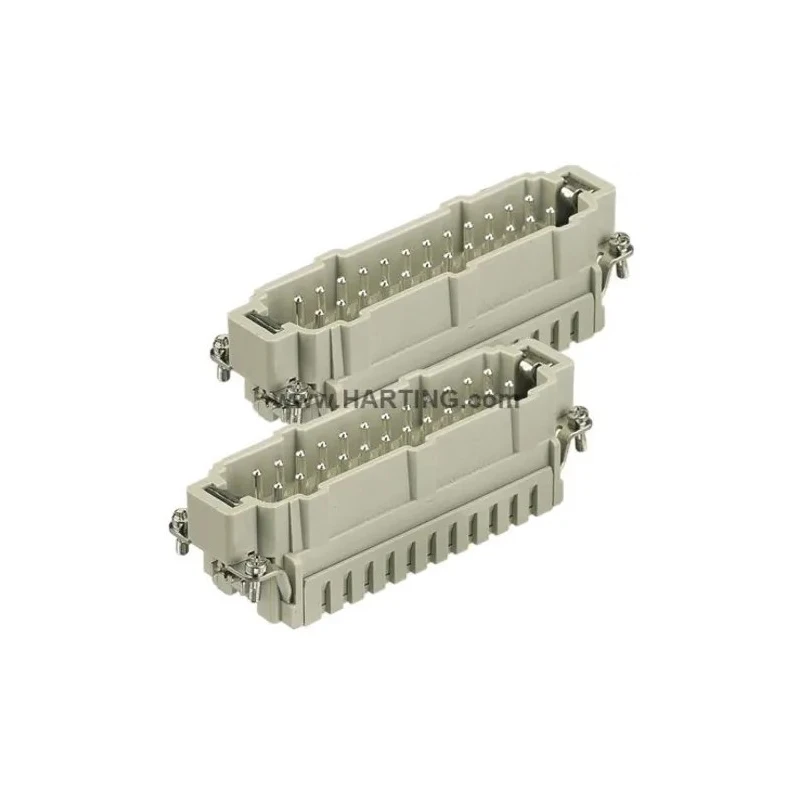

Harting Heavy Duty Power Connector Insert 16A Han ES Series Male 48 Contacts 09330242626
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 600V |
| Brand | Harting |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han ES |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 48 |
| Contact Plating | Silver |
| Number of Contacts | 48 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Rated for a current of 16 amperes providing reliable power transmission.
- Supports voltage up to 600 volts ensuring safety and performance.
- Constructed with copper alloy contacts plated with silver for durability and conductivity.
- Features a pebble grey polycarbonate housing designed for cable mount applications.
- Includes 48 contacts arranged in 2 rows for extensive connectivity.
- Offers fast realization of potential multiplication through plug-in jumpers.
- Enables tool-free rapid termination for time-saving assembly processes.
- Designed to be vibration proof for use in demanding industrial environments.
Product Description
Harting 09330242626 Heavy Duty Power Connector Insert 16A Han ES Series Male is engineered for demanding electrical and industrial applications requiring 16 ampere current capacity and 600 volt voltage rating. This cable mount insert features a robust pebble grey polycarbonate housing with 48 contacts arranged in two rows, ensuring high-density, reliable connections.
The contacts are made from copper alloy and plated with silver to maximize conductivity and corrosion resistance. The straight male connector design allows straightforward integration into heavy duty power connector systems. It supports a minimum wire size of 0.14 mm² and a maximum wire size of 2.5 mm², accommodating a broad range of wiring profiles.
This insert supports rapid, tool-free termination technology, enhancing installation efficiency and process reliability. The inclusion of plug-in jumpers enables easy bridging functionality for potential multiplication as well as star and delta bridge configurations, facilitating flexible circuit designs. The design ensures vibration-proof connections ideal for industrial and manufacturing environments.
Though it does not carry specific certifications, it adheres to industry standards for quality and performance. Originating from Germany, this product is suitable for use in electronic components, power connectors, and heavy duty power connector systems across various sectors, including industrial automation, machinery, construction, water treatment, and commercial electrical installations.
Rated for 16A current and 600V voltage in demanding electrical applications. Copper alloy contacts with silver plating ensure excellent conductivity. Pebble grey polycarbonate housing designed for cable mount installation.
48 contacts arranged in 2 rows provide high-density connection points. Supports easy bridging with plug-in jumpers for complex circuit requirements. Rapid termination technology enables quick, tool-free assembly. Vibration-proof construction suitable for industrial environments.
Straight orientation with male connector gender compatible with heavy duty connectors. Explore a comprehensive range of Harting Heavy Duty Power Connector Inserts and modules at EnvMart for industrial and electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert is rated for a current of 16 amperes, making it suitable for demanding electrical applications.
It supports a voltage of up to 600 volts, ensuring safety and performance in various applications.
It features 48 contacts arranged in two rows, providing extensive connectivity options.
The contacts are made from copper alloy and are plated with silver to enhance conductivity and corrosion resistance.
It accommodates a minimum wire size of 0.14 mm² and a maximum wire size of 2.5 mm², allowing for a broad range of wiring profiles.
The housing is constructed from pebble grey polycarbonate, designed for cable mount applications.
Yes, it is designed to be vibration-proof, making it suitable for use in demanding industrial environments.
This model has a straight orientation, compatible with heavy duty power connector systems.
It includes rapid, tool-free termination technology, which enhances installation efficiency and process reliability.
It is suitable for various sectors, including industrial automation, machinery, construction, water treatment, and commercial electrical installations.
Yes, it supports easy bridging with plug-in jumpers, allowing for complex circuit configurations like star and delta bridging.
This product originates from Germany, adhering to industry standards for quality and performance.
