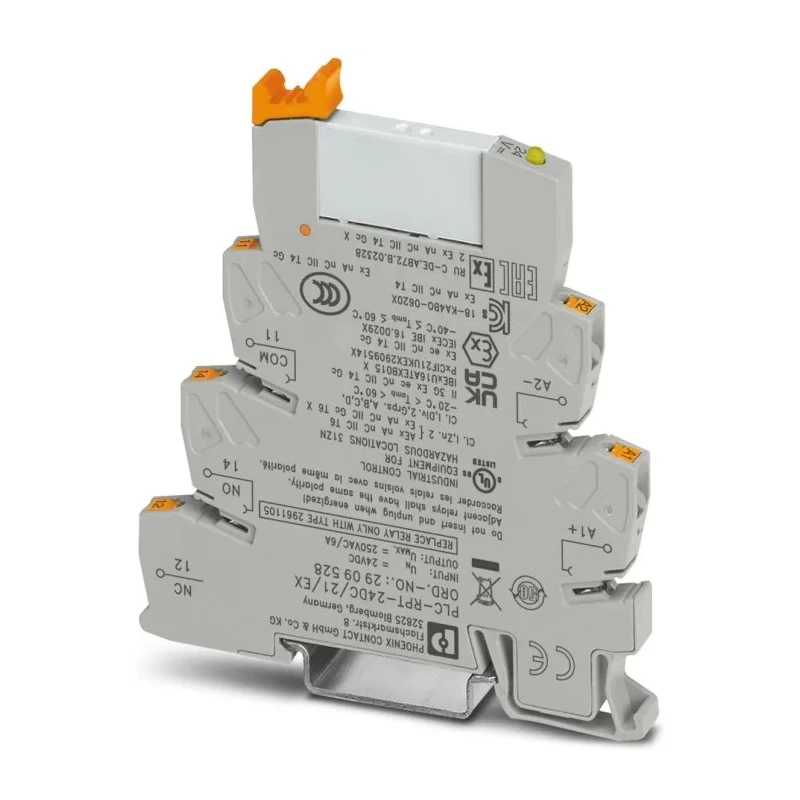

Phoenix Contact Electromechanical Interface Relay PLC-RPT-24DC/21/EX, DIN Rail Mount, 24V DC Coil, SPDT, 9mA Coil 2909528
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Height | 80mm |
| Length | 6.2mm |
| Model | 2909528 |
| Width | 94mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | PLC-RPT-24DC/21/EX |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10mA |
| Terminal type | Push-in |
| Standards/Approvals | IEC 60947-5-1 |
| Coil Voltage | 24V dc |
| Coil Current | 9mA |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
Key Features
- The relay features a coil voltage of 24V DC and a coil current of 9mA.
- It has a single pole double throw (SPDT) contact configuration with silver alloy contact material.
- Suitable for switching current up to 10mA and voltages up to 250V AC/DC.
- The mount type is DIN rail with push-in terminal technology for easy wiring.
- Designed for operating temperatures from -40°C up to 60°C, enabling use in harsh environments.
- Compact dimensions of 6.2 mm length, 80 mm height, and 94 mm width.
- Compliance with IEC 60947-5-1 standards ensures reliability and safety.
- Equipped with a yellow LED indicator for operational status verification.
Product Description
Phoenix Contact 2909528 Electromechanical Interface Relay PLC-RPT-24DC/21/EX is designed as a reliable DIN rail mount relay module with a 24V DC coil voltage and single pole double throw (SPDT) contacts. It is used to open and close electrical circuits safely in industrial, automation, and hazardous area applications.
This relay features a low coil current of 9mA and supports switching currents up to 10mA at 250V AC or DC. The contact material is silver alloy, ensuring durability and excellent conductivity. The relay module is designed for easy installation on DIN rails and incorporates push-in terminal technology to facilitate fast and secure wiring without the need for specialized tools.
Operating in harsh environments is supported with an operating temperature range from -40°C to 60°C. The compact size allows closely assembled relay configurations without overheating concerns. A yellow LED indicator provides visual feedback on relay status.
This device meets IEC 60947-5-1 standards, proving its suitability for industrial safety and performance requirements. With a mechanical life expectancy of 20 million cycles, it provides long-term operational reliability.
Typical use cases include industrial automation control, signal switching, and isolation in control panels, manufacturing equipment, chemical plants, and other commercial or laboratory automation systems.
The relay features a coil voltage of 24V DC and a coil current of 9mA. SPDT contact configuration with silver alloy contact material for reliable switching. DIN rail mount with push-in terminal type for quick installation.
Supports switching current of 10mA and switching voltage of 250V AC/DC. Operating temperature range from -40°C to +60°C. Compact dimensions measuring 6.2 mm length, 94 mm width, and 80 mm height. Compliant with IEC 60947-5-1 safety and performance standards.
Includes yellow LED for status indication and a freewheeling diode for coil protection. Mechanical life rated at 2 x 10^7 cycles ensuring durability. Suitable for industrial automation, control systems, and signal conditioning.
Explore more Interface Relays and industrial automation solutions at EnvMart to find the perfect fit for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage of 24V DC.
It has a coil current of 9mA.
This model features a single pole double throw (SPDT) contact configuration.
The relay supports a maximum switching current of 10mA.
It has compact dimensions of 6.2 mm in length, 80 mm in height, and 94 mm in width.
It operates within a temperature range of -40°C to +60°C.
This relay is designed for DIN rail mounting.
The contact material is silver alloy, which ensures reliable switching.
It complies with IEC 60947-5-1 standards for safety and performance.
Yes, it is equipped with a yellow LED indicator for operational status verification.
It incorporates push-in terminal technology for easy wiring.
The mechanical life expectancy is rated at 20 million cycles.
