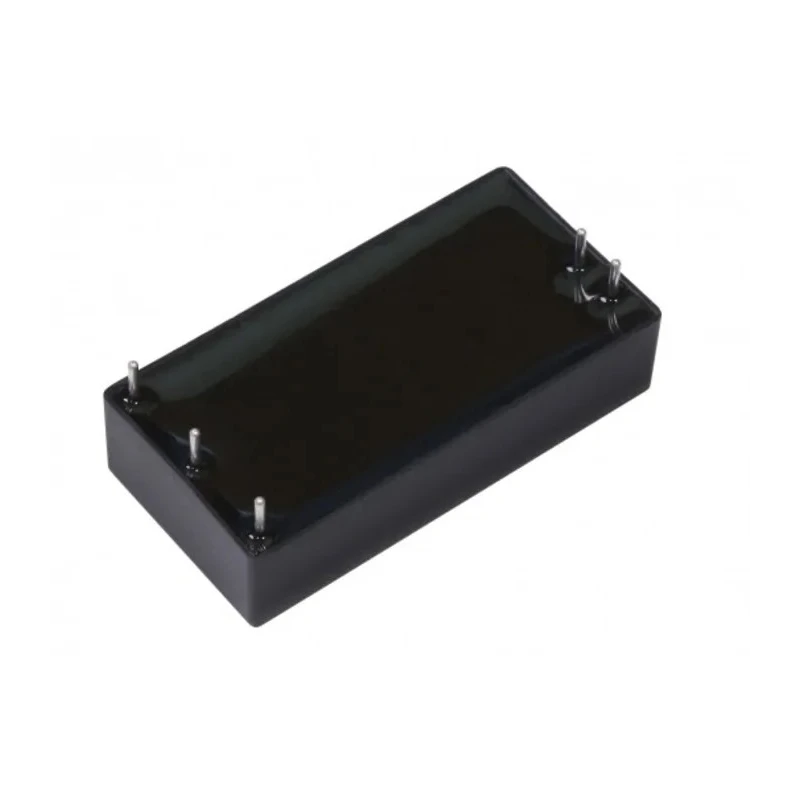

Artesyn Medical Isolated DC/DC Converter 24V DC 620mA 15W Through Hole AEE15W-M

Artesyn AEE15W-M is a medical isolated DC/DC Converter designed for critical instrumentation applications requiring strict safety and insulation standards. This device converts 24V DC input voltage, supporting a range between 18V to 36V, into a stable 24V DC output at a current of 620mA, delivering a maximum power of 15 watts through a through-hole mounting configuration.

With reinforced insulation rated at 4200 VAC and an operating working voltage of 300 VAC, the converter provides 2x MOPP certification ensuring medical safety compliance. Its low leakage current characteristics further promote safety in medical applications.

The device features a high efficiency of 89%, minimizing power losses and thermal stress, complemented by its ability to operate reliably in a wide temperature range from -40°C to 80°C. The product’s mean time between failures (MTBF) of one million hours affirms its durability and long-term operation.

Compact in size, measuring 50.8 mm in length, 25.4 mm in width, and 12 mm in depth, this converter efficiently fits into dense electronic assemblies. It complies with stringent international standards including FCC Level A, ANSI AAMI ES60601-1, EMI EN55011, EMS EN60601-1-2, EN 55022, and EN IEC 60601-1, making it suitable for demanding medical and industrial environments.

This model uses tinned copper pins to ensure secure electrical connectivity and mechanical stability. Ideal for applications such as medical instrumentation, industrial equipment, and any setting requiring reinforced insulation and reliable isolated power conversion.

Designed for medical instrument applications requiring reinforced insulation. Supports 18-36V DC input voltage range with 2:1 input ratio. Offers high efficiency of 89% for reliable power conversion. Features 4200 VAC reinforced insulation and 300 VAC working voltage rating.

Low leakage current and 2x MOPP safety certification for patient protection. Compact dimensions: 50.8mm length, 25.4mm width, and 12mm depth. Operating temperature range from -40°C to 80°C suitable for demanding environments.

MTBF rated at 1,000,000 hours for long-term reliability. Compliance with FCC, ANSI AAMI ES60601-1, EMI/EMS, and IEC medical safety standards. Package type enables easy through-hole PCB mounting. Explore the Electronics & Electricals category on EnvMart for comprehensive solutions in DC/DC conversion and power supplies.
