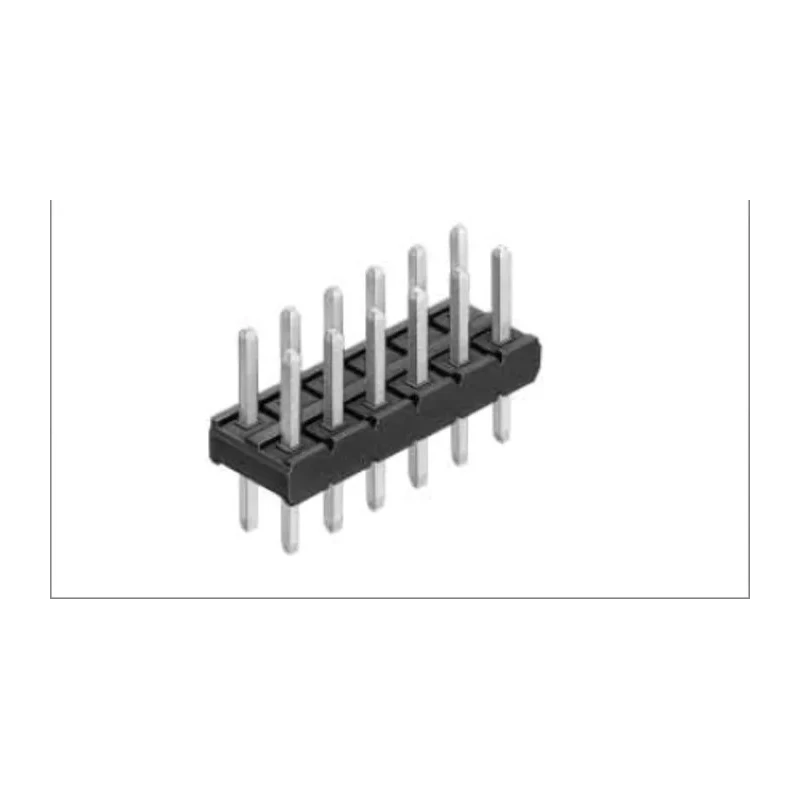

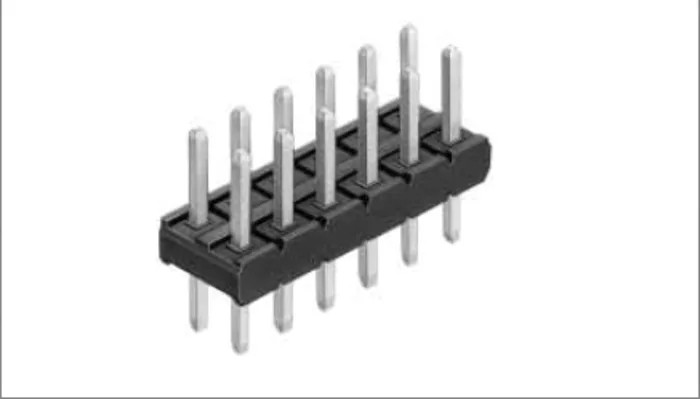

Hirose A3C Series Straight Through Hole Pin Header, 10 Contacts, 2 mm Pitch, 2 Row, Unshrouded A3C-10P-2DSA(30)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 1A |
| Model | A3C-10P-2DSA(30) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | A3C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.6mm |
| Mating Pin Length | 3.5mm |
| Miniature Type and High Density Mounting | These connectors are designed in a miniature and light weight product, and mounted in the high density. The crimping case is structured in the 2mm pitch grid, so that connectors can be arranged for use |
| Variation in Number of Contacts | In addition to the dip type, SMT and crimping types are available with broad variations |
| Stacking Variation | When the connector is used for board to board, set 6mm between boards in conjunction with the pin header A3B, or 5.1mm between boards in conjunction with the pin header A3C |
Key Features
- The connector features a miniature and lightweight design for high density mounting.
- It has brass contacts plated with gold for reliable conductivity and corrosion resistance.
- The housing is made from durable polyamide material and is unshrouded.
- Suitable for 200V operation and supports up to 1A current per contact.
- It operates reliably from -55°C to 85°C temperature range.
- Termination is by solder type with male contact gender and through hole mount type.
- Tail pin length is 2.6 mm and mating pin length is 3.5 mm.
- The connector complies with RoHS standards and is manufactured in Japan.
Product Description
Hirose A3C-10P-2DSA(30) is a high quality straight through hole pin header designed for electronic component applications requiring compact and high density mounting solutions. This pin header features 10 gold-plated brass contacts arranged in 2 rows at a 2 mm pitch, enabling reliable wire-to-board connections for various industrial, electronics manufacturing, and assembly contexts.
The connector housing is molded from robust polyamide, offering durability and unshrouded design which facilitates easy solder termination. Operating voltage up to 200V and current rating of 1A per contact make it suitable for low power signal and data transmission tasks.
The product operates reliably in extreme temperature environments ranging from -55°C minimum to 85°C maximum, ensuring performance in demanding industrial and laboratory settings. The pin header's tail pins extend 2.6 mm to accommodate through hole solder mount, and mating pins extend 3.5 mm to ensure secure interfacing.
Designed and manufactured in Japan, the A3C series is RoHS compliant which guarantees environmental safety and regulatory adherence. This model also supports multiple variations and stacking configurations, including DIP, SMT, and crimping types, providing flexibility for different circuit board layouts and system designs.
Typical applications include industrial control systems, electronic instruments, communication devices, and PCB assembly processes that require miniature connectors with high density and reliability.
The connector's miniature and lightweight design enables space-saving mounting on PCBs. Brass contacts with gold plating provide excellent electrical conductivity and corrosion resistance. Polyamide housing assures mechanical stability and high temperature resistance.
The straight orientation and through hole mounting facilitate easy integration with various PCBs. Compliance with RoHS regulations supports eco-friendly manufacturing processes. Temperature range suitability ensures reliability in harsh environments.
Explore more Hirose connectors and electronics components available at EnvMart for industrial and manufacturing applications.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 200V.
This model supports a current rating of up to 1A per contact.
The connector operates reliably within a temperature range of -55°C to 85°C.
The housing is made from polyamide, and the contacts are brass plated with gold for conductivity and corrosion resistance.
This model features 10 contacts arranged in 2 rows.
The pitch size of this connector is 2 mm.
The termination type for this connector is solder.
The tail pin length is 2.6 mm, and the mating pin length is 3.5 mm.
Yes, the connector complies with RoHS standards, ensuring environmental safety.
This model supports through hole mounting.
Typical applications include industrial control systems, electronic instruments, communication devices, and PCB assembly processes.
The A3C-10P-2DSA(30) is manufactured in Japan.
