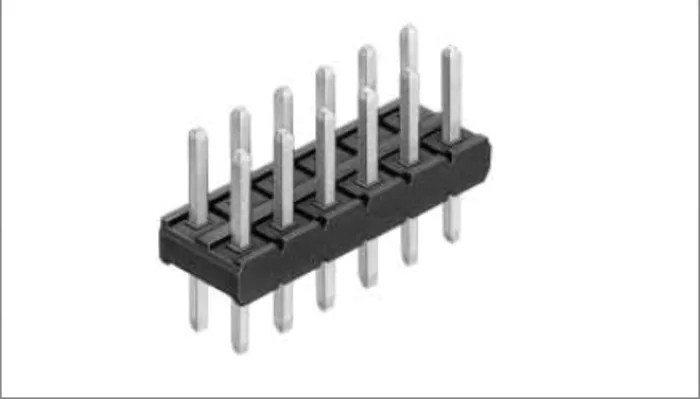

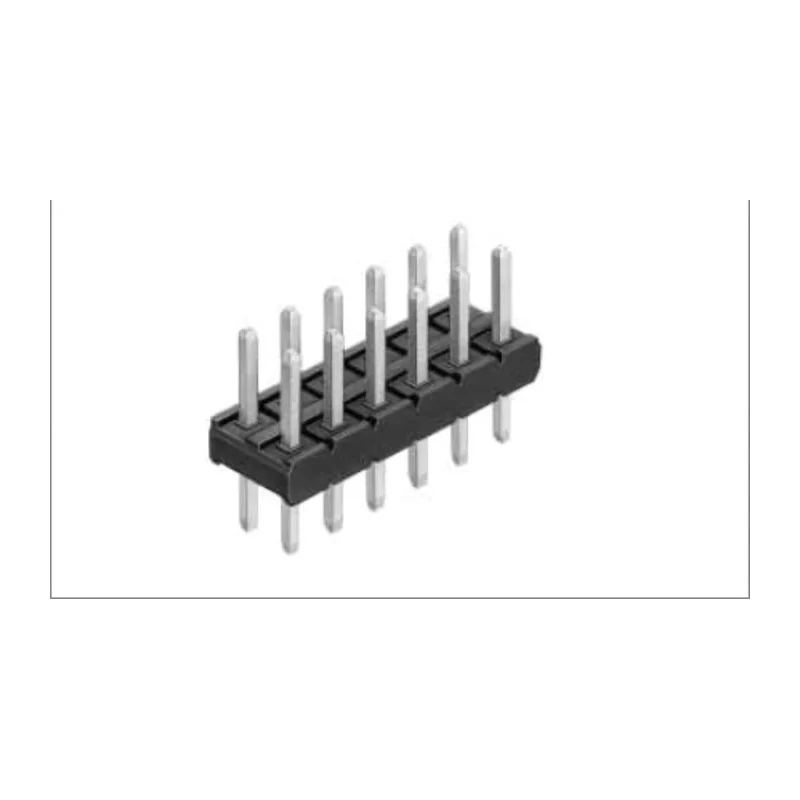

Hirose Wire-to-Board Pin Header, Straight Through Hole, 6 Contacts, 2 mm Pitch, 2 Row, Brass Gold Plated A3C-6P-2DSA(30)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 1A |
| Model | A3C-6P-2DSA(30) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | A3C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.6mm |
| Mating Pin Length | 3.5mm |
| Miniature Type and High Density Mounting | These connectors are designed in a miniature and light weight product, and mounted in the high density. The crimping case is structured in the 2mm pitch grid, so that connectors can be arranged for use |
| Variation in Number of Contacts | In addition to the dip type, SMT and crimping types are available with broad variations |
| Stacking Variation | When the connector is used for board to board, set 6mm between boards in conjunction with the pin header A3B, or 5.1mm between boards in conjunction with the pin header A3C |
Key Features
- The connector uses brass contacts with gold plating to ensure reliable electrical performance.
- Housing is made of durable polyamide material, providing robust insulation.
- Unshrouded straight orientation facilitates easy through-hole solder mounting.
- Supports a maximum voltage of 200 V and current rating of 1 A per contact.
- Operating temperature range spans from -55°C to 85°C, suitable for various environments.
- Tail pin length is 2.6 mm and mating pin length is 3.5 mm for secure mechanical fit.
- Connector system is wire-to-board, allowing versatile PCB interconnections.
- Complies with RoHS environmental standards for hazardous substance restrictions.
Product Description
The Hirose A3C-6P-2DSA(30) pin header is a miniature, high-density wire-to-board connector designed for use in a wide range of electronic devices and industrial equipment. Featuring 6 brass contacts with gold plating arranged in 2 rows on a 2 mm pitch, it offers reliable electrical connectivity with a 1 A current rating and 200 V voltage tolerance.
Its polyamide housing ensures excellent insulation and durability, while the unshrouded straight through-hole design allows for straightforward solder mounting on printed circuit boards. This connector supports temperatures from -55°C up to 85°C, making it suitable for both low and high temperature environments.
The tail pins measure 2.6 mm, and mating pins extend 3.5 mm to provide secure mechanical and electrical connections. This connector is ideal for compact electronic assemblies requiring robust wire-to-board connections.
Additional features include RoHS compliance, assuring adherence to environmental and safety standards. The connector is Japanese-made, reflecting strict manufacturing quality and precision.
The connector uses brass contacts with gold plating to ensure reliable electrical performance. Housing is made of durable polyamide material, providing robust insulation. Unshrouded straight orientation facilitates easy through-hole solder mounting.
Supports a maximum voltage of 200 V and current rating of 1 A per contact. Operating temperature range spans from -55°C to 85°C, suitable for various environments. Tail pin length is 2.6 mm and mating pin length is 3.5 mm for secure mechanical fit.
Connector system is wire-to-board, allowing versatile PCB interconnections. Complies with RoHS environmental standards for hazardous substance restrictions. Manufactured in Japan, assuring high-quality production standards.
This Hirose A3C series pin header finds applications in electronics and electrical systems, including industrial machinery, communication equipment, consumer electronics, and instrumentation requiring compact and reliable PCB connectors.
Explore more PCB Headers and connectors in the Electronics Components category at EnvMart for diverse electronic design and assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum voltage of 200 V and a current rating of 1 A per contact.
The operating temperature range spans from -55°C to 85°C, making it suitable for various environments.
The contacts are made of brass with gold plating, and the housing is constructed from durable polyamide material.
This pin header features 6 contacts arranged in 2 rows.
It utilizes a through-hole mounting type for easy soldering onto printed circuit boards.
The contact pitch is 2 mm, allowing for high-density mounting.
The tail pin length is 2.6 mm, while the mating pin length is 3.5 mm for secure connections.
Yes, this model complies with RoHS environmental standards for hazardous substance restrictions.
The connector has a straight orientation, which facilitates easy through-hole solder mounting.
It is manufactured in Japan, reflecting strict production quality standards.
This model uses a wire-to-board connector system, allowing versatile PCB interconnections.
It is suitable for use in various electronic devices and industrial equipment, including communication equipment and consumer electronics.
