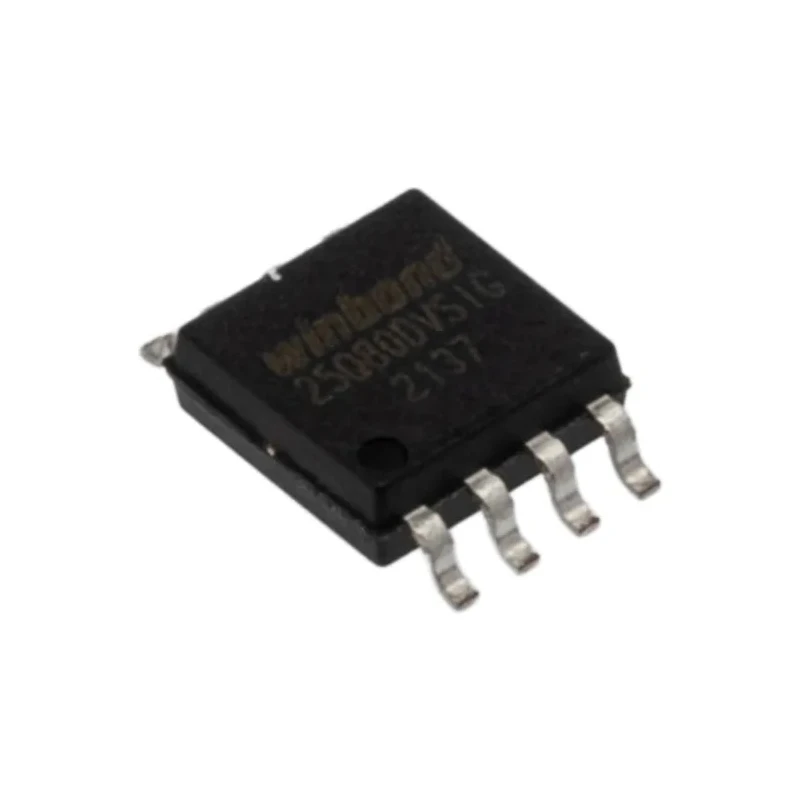

Winbond NOR 8 MB SPI Flash Memory 8-Pin SOIC W25Q80DVSSIG/TRAY

Winbond W25Q80DVSSIG/TRAY is an 8M-bit NOR Flash Memory device that supports SPI interface in an 8-pin SOIC surface mount package. It is designed to provide reliable and high-speed memory storage with a maximum clock frequency of 104MHz and an operating voltage range from 2.7V to 3.6V. The product operates reliably in industrial temperature ranges from -40°C to 85°C, making it suitable for harsh environments.

The memory is organized as 1M x 8 bits, featuring uniform erasable 4KB sectors and larger erasable blocks of 32KB and 64KB. The device supports Single, Dual, and Quad SPI modes enabling flexible and fast read/write operations, including fast read instructions with wrap-around capabilities on multiple byte lengths. A typical page program operation requires approximately 0.8 milliseconds for 256 bytes.

Advanced features include hardware and software write protection for both the top and bottom blocks of memory, a factory-programmed unique ID, security registers with One-Time Programmable (OTP) locks, and volatile as well as non-volatile status registers. Power consumption is optimized with a low 1µA power-down current, and the device supports suspend and resume operations for erase and program cycles.

Memory type: NOR Flash with SPI interface for compatible embedded systems. Package type: 8-pin SOIC for compact surface mounting. Operates from 2.7 to 3.6 volts with robust electrical and thermal characteristics. High-speed operation up to 104MHz clock frequency ensures fast data access.

Ideal for industrial, communication, automotive electronics, and general-purpose memory storage applications. Includes security features like lock-down protection and unique electronic ID. Dimensions: 5.38 mm length × 4 mm width × 1.91 mm height.

This memory device is an excellent choice for applications requiring non-volatile storage with high reliability, flexible SPI interface modes, and compact packaging. Explore more products in the Flash Memory category at EnvMart to find complementary components for your electronics projects.
