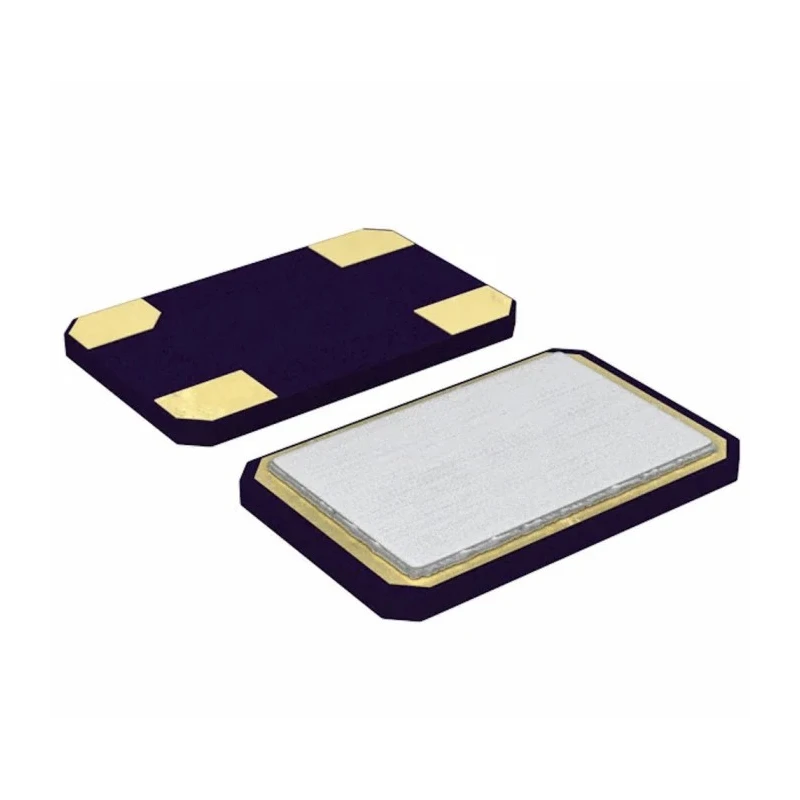

Abracon 24 MHz Crystal ±20 ppm Surface Mount 4-Pin Ceramic Package ABM3B-24.000MHZ-B2-T

Abracon ABM3B-24.000MHZ-B2-T 24 MHz Crystal is a highly reliable surface mount device in a ceramic package with a metal lid ensuring precision frequency control suitable for demanding industrial and commercial applications.

This crystal operates within a temperature range from -20°C minimum to 70°C maximum, maintaining a ±20 ppm frequency tolerance and ±50 ppm stability. Its 18pF load capacitance and 50 Ω series resistance make it ideal for oscillator circuits requiring stable frequency sources.

Dimensions are compact at 5 mm length, 3.2 mm width, and 1.1 mm height, making it suitable for dense electronic assemblies. The 4-pin surface mount package design supports ease of placement in high-density printed circuit boards often used in cellular telephones, pagers, PCMCIA devices, and wireless applications.

The ABM3B series is compliant with Pb RoHS, QS 9000, and ISO 9001 standards, ensuring quality and environmental safety. The crystal is manufactured in China and is suitable for industrial, communication, and test equipment usage.

The crystal features a ceramic package with a metal lid for enhanced reliability. Operates reliably within a temperature range of -20°C to 70°C. 18pF load capacitance ensures compatibility with various oscillator circuits.

Compact dimensions of 5 mm length, 3.2 mm width, and 1.1 mm height allow for dense PCB layouts. Fundamental mode crystal suitable for high-density wireless and communication applications. Standard frequency of 24 MHz supports a wide range of electronic devices.

4-pin surface mount design simplifies automated assembly processes. Explore a wide selection of precision crystal units at EnvMart for your industrial and electronic development needs.
