Entrelec SNA Series Earth Terminal Block Grey, 4mm² Cable CSA, 3-Level, Screw Termination, 32A, 500V AC 1SNA299684R0200

Free Delivery in India | Lowest Global Shipping Charges

Entrelec SNA Series Earth Terminal Block Grey, 4mm² Cable CSA, 3-Level, Screw Termination, 32A, 500V AC 1SNA299684R0200

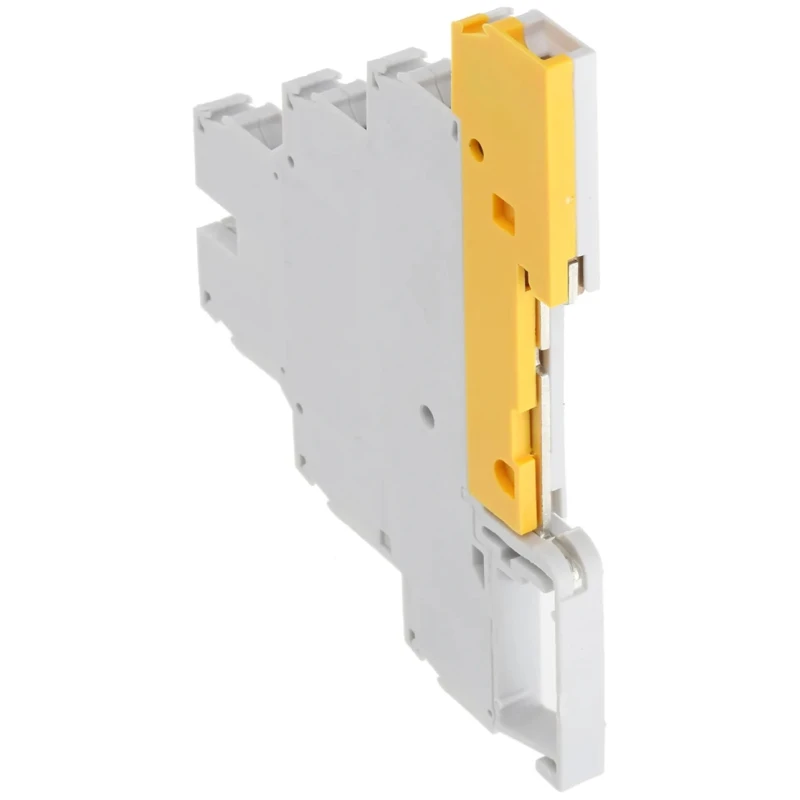

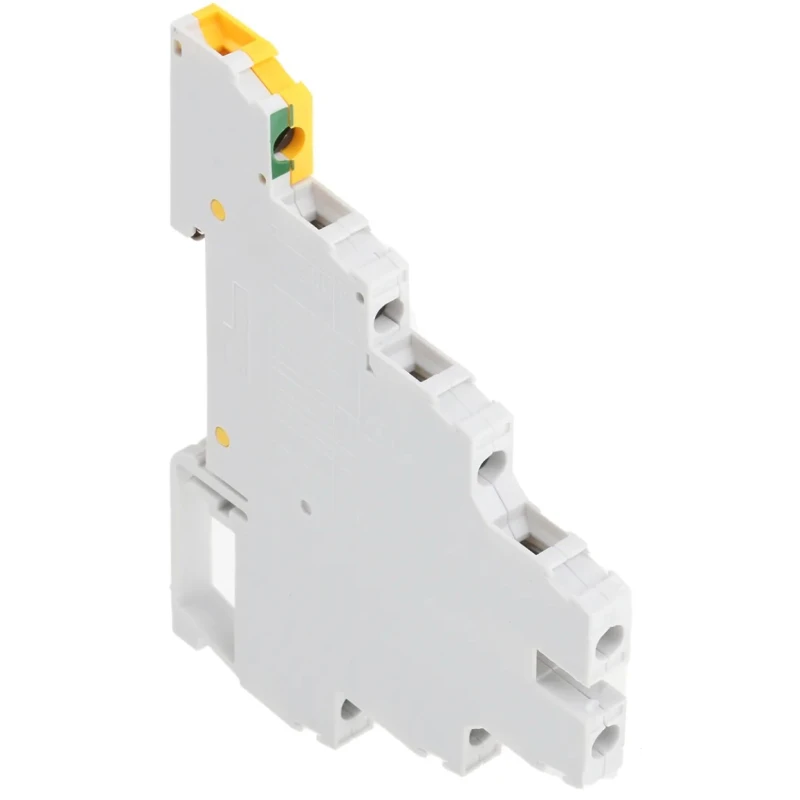

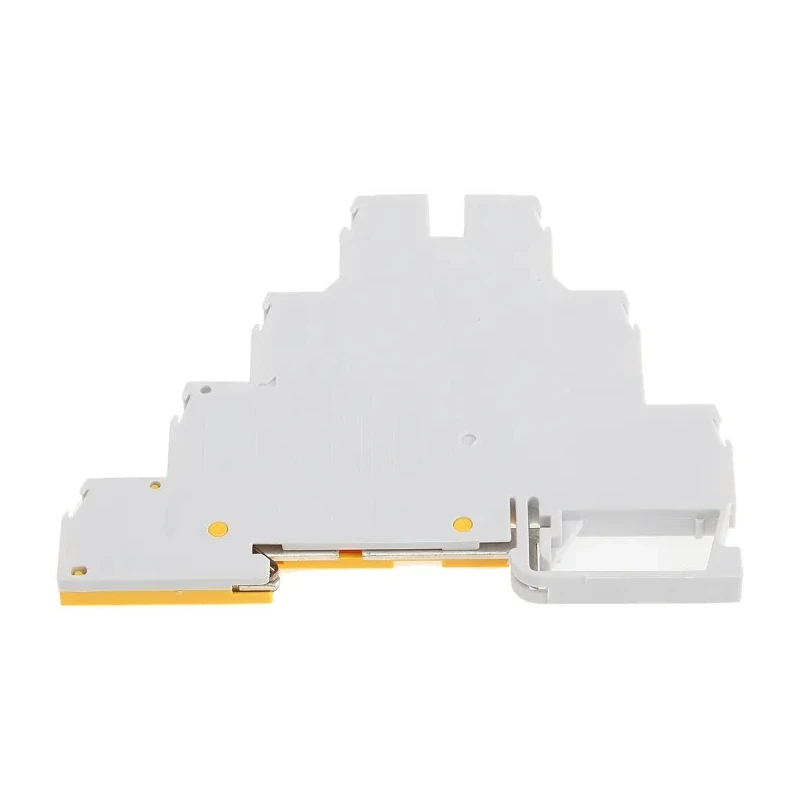

Name: Entrelec SNA Series Earth Terminal Block Grey, 4mm² Cable CSA, 3-Level, Screw Termination, 32A, 500V AC 1SNA299684R0200
Brand: Entrelec
SKU: 150642



Category DIN Rail Terminal Blocks Brand Entrelec Condition New

Specifications

Country of Origin	France
Voltage	500V ac
Brand	Entrelec
Colour	Grey
Model	1SNA299684R0200
Series	SNA
Termination Type	Screw
Maximum Operating Temperature	40°C
Number of Levels	3
Minimum Operating Temperature	-5°C
Pitch	6mm
Standards/Approvals	EU Directive 2002/95/EC
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	12AWG
Cable CSA	4mm²
Terminal Block Current	32A

Key Features

Constructed of flame-resistant polyamide 6.6 with a grey finish for durability.
Supports cable cross-sectional area up to 4mm² for secure wiring.
Designed for easy mounting on asymmetric ‘G’ and top hat DIN rails.
Features 3 levels to accommodate multiple circuits in a compact footprint.
Operating temperature ranges from -5°C to 40°C for versatile application.
IP20 protection ensures basic safety against solid foreign objects.

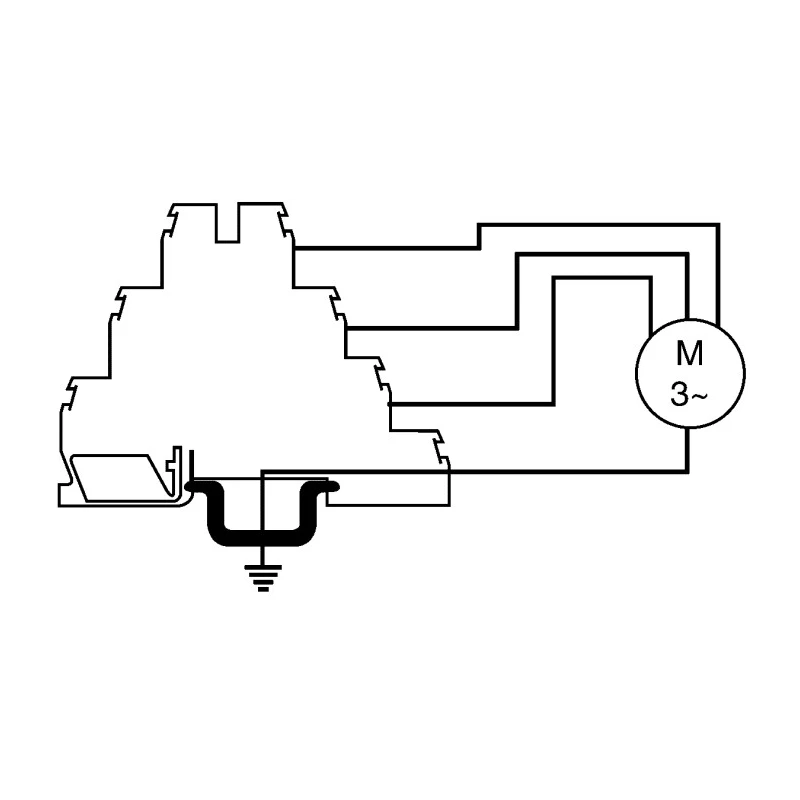

Ideal for three-phase motor supply and other industrial electrical installations.
Terminals have hardened captive screws to prevent damage during installation.

Product Description

Entrelec 1SNA299684R0200 is a model from the SNA series of Earth Terminal Blocks designed for reliable and efficient electrical circuit wiring and grounding applications. Rated for 32A current and 500V AC voltage, this triple-deck terminal block is crafted in grey flame-resistant polyamide 6.6, providing mechanical robustness and fire safety up to +130°C operating temperatures.

Its 3-level configuration allows three circuits within the same terminal width, providing compact and organized wiring solutions ideal for electrical panels and industrial control cabinets. The block features screw-type termination with captive hardened screws to prevent damage and ensure secure connections. It supports cables ranging from 22 AWG to 12 AWG, accommodating cable cross-sectional areas up to 4mm² with a pitch of 6mm for precise terminal spacing.

The design includes a clamp electrically grounded to the mounting DIN rail (both asymmetric ‘G’ and top hat profiles), adding efficient earthing to the installation. The terminal block's closed body design removes the need for additional end sections, simplifying panel layout and maintenance. Protection rating IP20 offers safety from accidental contact with live parts.

Operating temperature ranges from -5°C to 40°C, making it suitable for a broad range of industrial, commercial, and manufacturing electrical applications, including three-phase motor protection circuits. Manufactured in France, it complies with EU Directive 2002/95/EC RoHS regulations, ensuring environmentally responsible production standards.

Flame-resistant polyamide 6.6 construction for high durability and safety. Three-level design to optimize terminal density in control panels. Captive hardened screws provide reliable and easy wiring installation. Compatible with asymmetric ‘G’ and top hat DIN rails.

Supports cable sizes up to 4mm² allowing versatile wire usage. IP20 rated for protection against solid objects. Suitable for industrial automation, HVAC systems, and electrical distribution boards. Compliant with EU RoHS directive 2002/95/EC to meet environmental standards.

Closed block design eliminates the need for end sections. Ideal for applications requiring multiple grounding points within compact space. Explore more advanced terminal blocks and electrical connectors in EnvMart's comprehensive Electronics Components catalog.
