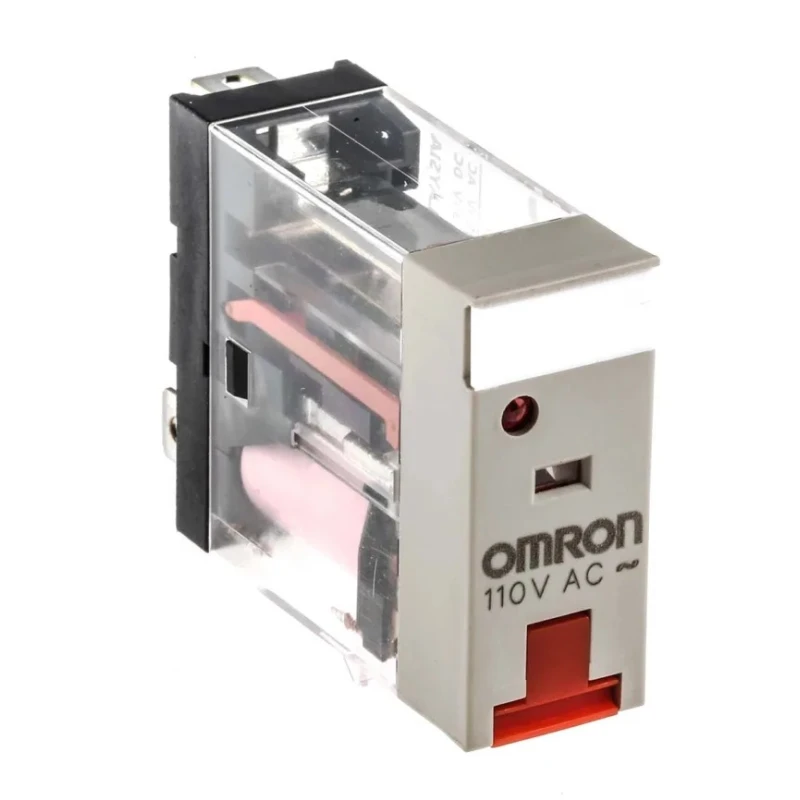

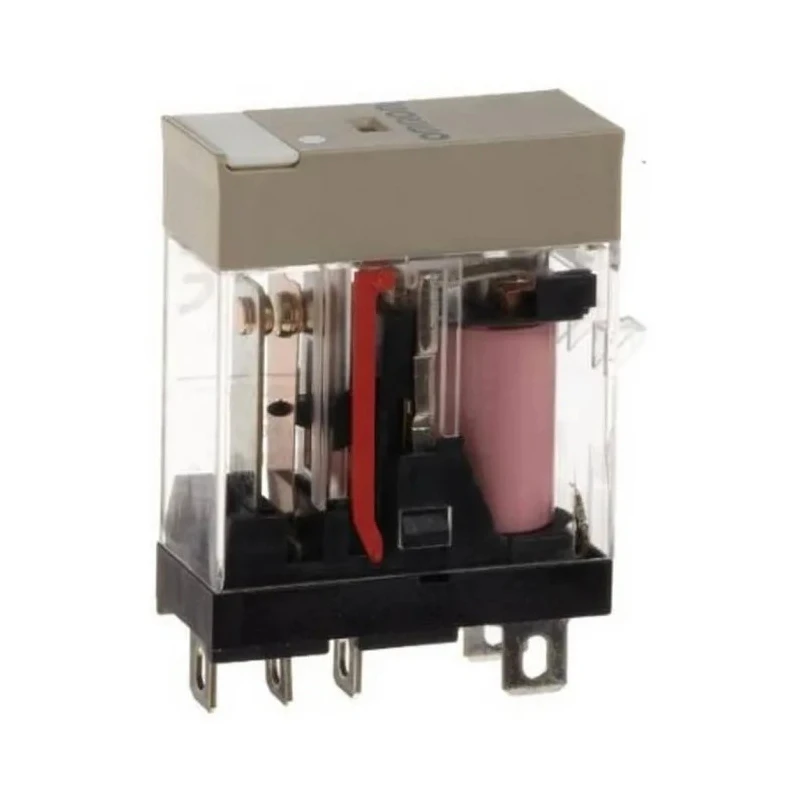

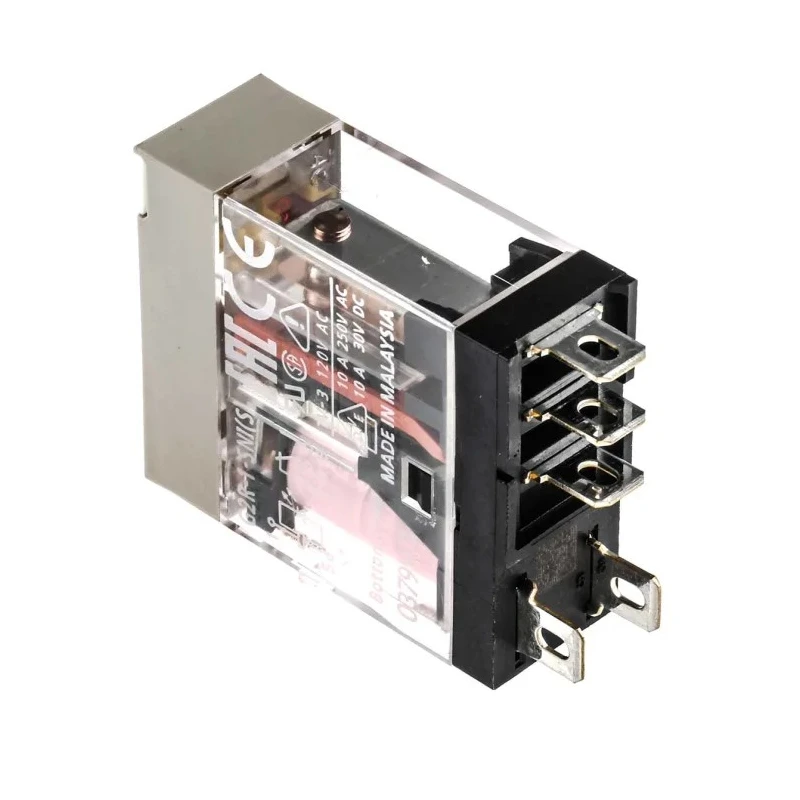

Omron Non-Latching PCB Relay 110V AC Coil, 10A Switching Current, SPDT Contact Configuration G2R-1-SNI 110VAC (S)

Omron G2R-1-SNI 110VAC (S) is a non-latching PCB relay designed for industrial and laboratory use requiring reliable switching of electrical circuits. Featuring a 110V AC coil and a single pole double throw (SPDT) contact configuration, this relay offers versatile control capabilities for a wide range of electrical equipment.

This relay supports a switching current of 10A and can handle maximum switching powers of 2.5 kVA AC and 300 W DC, making it suitable for high-power industrial equipment such as heating and cooling systems. Its compact size with dimensions 29 mm (H) x 29 mm (L) x 13 mm (W) allows easy PCB integration with through-hole solder terminal mounting.

Designed for durability, the G2R series relay boasts a mechanical endurance rating of 10 million cycles, ensuring minimal breakdown risk even under frequent operation rates up to 18,000 cycles per hour. The device features a built-in lockable test button to prevent tampering and an LED indicator to facilitate quick status monitoring and troubleshooting.

Constructed with a silver alloy contact material, this relay provides excellent conductivity and durability. The coil resistance is 5.6 kΩ, consuming 900 mW power. It is free from cadmium and lead, reducing hazardous contamination risks, and complies with CE, EN, IEC, RoHS, and UL standards.

Operating temperature range from -40 to +70°C suits harsh environment applications in research laboratories, mining and extraction operations, food production lines, and HVAC systems. The coil-to-contact isolation withstands 5000Vac ensuring safety and operational integrity.

Non-latching relay returns to default state on signal removal. High switching power rating of 2.5kVA AC and 300W DC. Lockable test button and LED coil status indicator. Mechanical endurance of 10 million cycles. Through-hole PCB mounting with solder terminals.

Silver alloy contacts for longevity and conductivity. Wide operating temperature range from -40 to +70°C. Compliance with CE, EN, IEC, RoHS, and UL standards. Applications include industrial automation, laboratory equipment, mining, and food processing.
