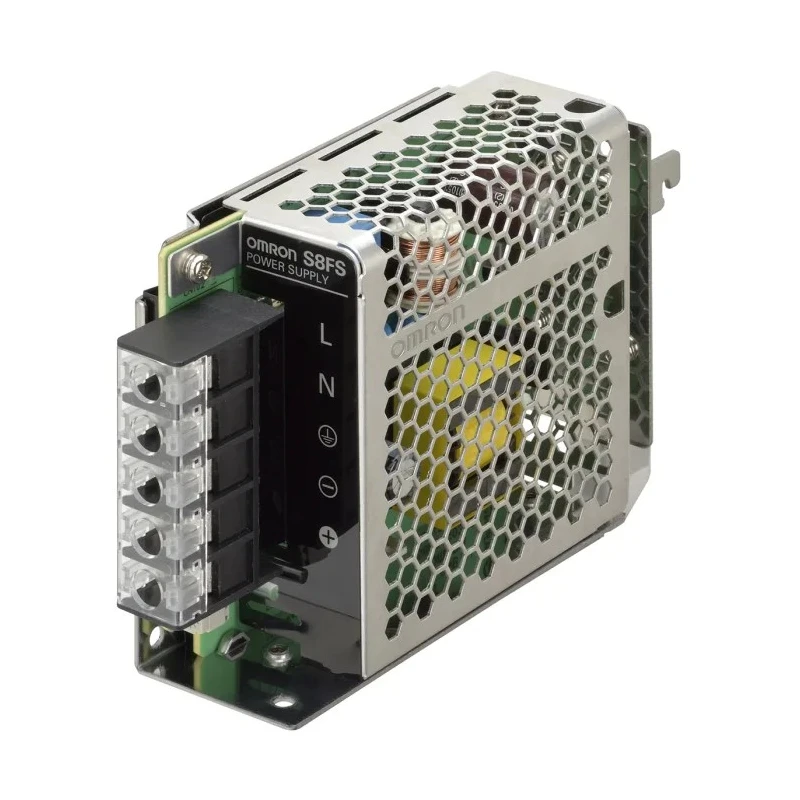

Omron Switched Mode DIN Rail Power Supply 5 V DC 8 A Output 50 W Power S8FS-G

Omron S8FS-G series Switched Mode DIN Rail Power Supply provides a reliable 5 V DC output with a maximum current of 8 A and a power rating of 50 W, ideal for use in industrial control systems, machine tools, and semiconductor equipment. The unit supports an input voltage range of 100 V AC to 240 V AC, with maximum input voltages up to 264 V AC or 370 V DC, ensuring flexibility across various electrical environments.

This covered type power supply features screw terminal connections designed to prevent screws from falling out during installation. Natural air cooling enables maintenance-free operation without the need for additional fans. The built-in transformers comply with IEC 61558-2-16 standards removing the need for external transformers in control circuits.

Its robust design makes it resistant to harsh environments, capable of withstanding vibration frequencies from 10 Hz to 55 Hz and shock resistance up to 150 m/s² in multiple directions. The compact dimensions (137 mm width, 105 mm depth, 37 mm height) help save installation space within electrical panels. The power supply is mounted on a standard DIN rail and bears an IP20 rating for protection against dust and incidental contact.

Efficiency is rated at 82% minimum, reducing energy waste and heat generation. The unit is equipped with green output indicators for monitoring operating status at a glance. Safety features include overload and overvoltage protection circuits, delivering stable and secure performance over a long life expectancy of 10 years.

The S8FS-G model complies with multiple international standards, including CE marking, UL 60950-1, UL 508, TUV, EN IEC 61558-2-16, EN 61204-3 Class B, EN 61000-3-2, EN 55011 Class B, cULus, CSA C22.2 No. 60950-1, and CSA C22.2 No. 107.1, ensuring suitability for worldwide industrial applications.

Ideally suited for industrial automation, manufacturing plants, water treatment controls, HVAC systems, and laboratory equipment, this power supply delivers reliable DC power in harsh and variable electrical environments.

The power supply operates with 100 V AC to 240 V AC input voltage. It features natural air cooling and screw terminal connections for easy installation. The device includes built-in transformers compliant with IEC standards for enhanced safety.

Designed for harsh environments with vibration and shock resistance. Has an efficiency rating of 82% ensuring energy-efficient operation. The unit has green output indicators for operational status. Protected against overload and overvoltage ensuring reliable performance.

Compact dimensions of 137 mm width, 105 mm depth, and 37 mm height save panel space. IP20 rated enclosure suitable for DIN rail mounting. Complies with multiple international safety and industry standards including UL, CE, and TUV.
