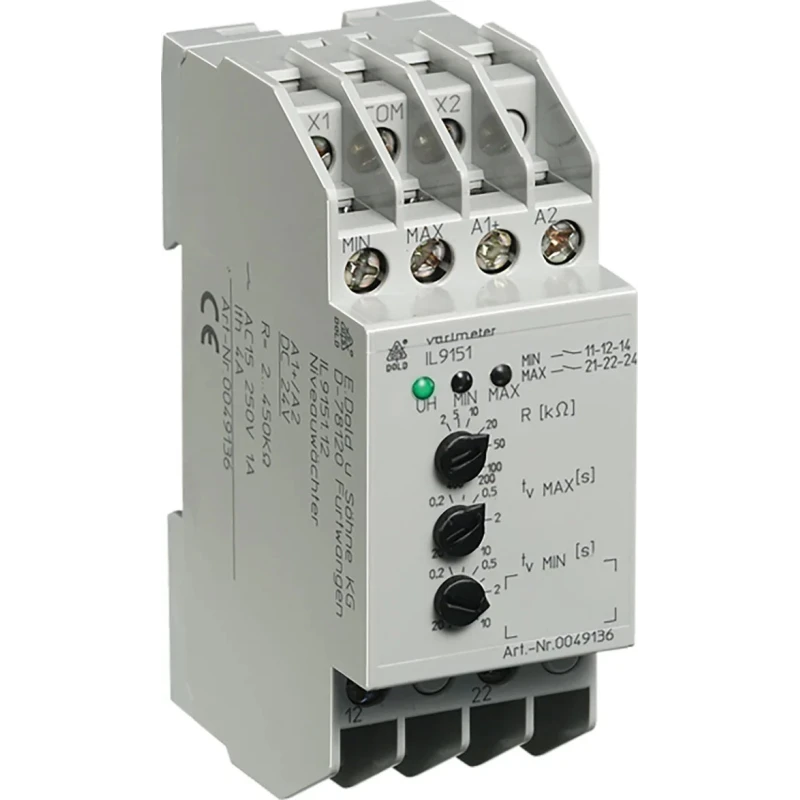

Dold Monitoring Relay, 2 CO Contact Configuration, DIN Rail Mount, 24 V dc, 230V ac, 0.2 IL9151.12 2- 50kOHM DC24V 0.2-20S

Free Delivery in India | Lowest Global Shipping Charges

Dold Monitoring Relay, 2 CO Contact Configuration, DIN Rail Mount, 24 V dc, 230V ac, 0.2 IL9151.12 2- 50kOHM DC24V 0.2-20S

Name: Dold Monitoring Relay, 2 CO Contact Configuration, DIN Rail Mount, 24 V dc, 230V ac, 0.2 IL9151.12 2- 50kOHM DC24V 0.2-20S
Brand: Dold
SKU: 149321
Price: 268.6 USD
Availability: InStock



Category Monitoring Relay Brand Dold Condition New

Specifications

Country of Origin	Germany
Brand	Dold
Height	90mm
Length	59mm
Model	IL9151.12 2- 50kOHM DC24V 0.2-20S
IP Rating	IP40, IP20
Width	35mm
Mount Type	DIN Rail
Series	IL 9151
Maximum Operating Temperature	60°C
Contact Configuration	2 CO
Time Delay	0.2 → 20s
Minimum Operating Temperature	+60°C
Terminal type	Flat
Standards/Approvals	CE, CCC
Supply DC Voltage	24 V dc
Supply AC Voltage	230V ac
Maximum Current Sensed	15mA
Max. lead length to the electrodes	1500 m
Response and fallback delay	0.2 → 20 s adjustable separately for MIN and MAX level
Programmable for	2 separately controlled output relays for MIN and MAX level or jointly controlled output relays in 2-point hysteresis level control

Key Features

Features two changeover contact outputs for versatile control.
Suitable for monitoring and control of conductive liquids and powders.
Adjustable response and fallback delay ensure precise level control.
Galvanically isolated measuring circuit resistant to high interference.
LED indicators provide operational readiness and contact status.
Compact dimensions with 35 mm overall width for space-saving installation.
Designed with IEC 255 compliance and electrode connections for 1 or 2-point level control.
Supports a maximum lead length of up to 1500 meters to electrodes.

Product Description

Dold IL9151.12 2- 50kOHM DC24V 0.2-20S Monitoring Relay is a High-Quality Level Monitoring Device suitable for Industrial and Automation applications requiring precise control of conductive liquids and powders. It operates with dual changeover contacts (2 CO) and is designed for DIN Rail mounting, providing easy integration into control panels.

This relay supports both 24 V DC and 230 V AC supply voltages, allowing broad compatibility with industrial power systems. Its time delay is adjustable from 0.2 to 20 seconds, separately programmable for minimum and maximum levels, ensuring flexible process control.

The galvanically isolated measuring circuit significantly reduces susceptibility to electrical interference and enables a maximum electrode lead length of 1500 meters. The relay complies with IEC 255 and VDE 0435 standards, facilitating reliable level detection using 1 or 2-point electrode connections.

Applications include monitoring maximum and minimum fill levels, protection against overfill and dry run conditions, control of mixing ratios in conductive liquids, and general resistance monitoring tasks such as temperature limit recording with PTC sensors. The device also features programmable operating or rest current principles for output relays and employs an internal AC voltage generation (~30 Hz) to avoid electrolysis effects on sensors.

Two separately operating changeover relays suitable for minimum and maximum level control. Flat terminal design for reliable and convenient wiring. Compact dimensions: 90 mm height, 59 mm length, 35 mm width. Rated IP40 and IP20 protection ensuring robustness in typical industrial environments.

CE and CCC compliance guarantee quality and safety standards. LED indicators provide visual feedback for operational readiness and contact position.

Commonly used in water treatment plants, chemical processing, and other manufacturing industries for level detection and control. This relay enhances operational safety by protecting pumps from dry running and enables precise liquid level management in various industrial scenarios.

Choose Dold IL9151.12 2- 50kOHM DC24V 0.2-20S Monitoring Relay for reliable, versatile level monitoring with robust industrial features and certifications. Explore related Monitoring Relays on EnvMart for diverse industrial electrical solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates with a supply voltage of 24 V DC and 230 V AC, making it compatible with a variety of industrial power systems.

The time delay for this relay is adjustable from 0.2 to 20 seconds, allowing for flexible process control for minimum and maximum levels.

It features a 2 changeover contact (2 CO) configuration, suitable for versatile control applications.

The relay has compact dimensions of 90 mm in height, 59 mm in length, and 35 mm in width, facilitating space-saving installation.

The maximum lead length to the electrodes supported by this model is up to 1500 meters, allowing for flexible installation options.

This monitoring relay has an IP rating of IP40 and IP20, ensuring protection suitable for typical industrial environments.

It complies with CE and CCC standards, ensuring it meets quality and safety requirements for industrial applications.

The relay is designed for DIN Rail mounting, allowing for easy integration into control panels.

The maximum operating temperature for this monitoring relay is 60°C, making it suitable for various industrial conditions.

It is suitable for monitoring maximum and minimum fill levels, protecting against overfill and dry run conditions, and controlling mixing ratios in conductive liquids.

This model features flat terminals, which provide reliable and convenient wiring for installation.

The response and fallback delay can be adjusted separately for minimum and maximum levels, allowing for precise control in various applications.
