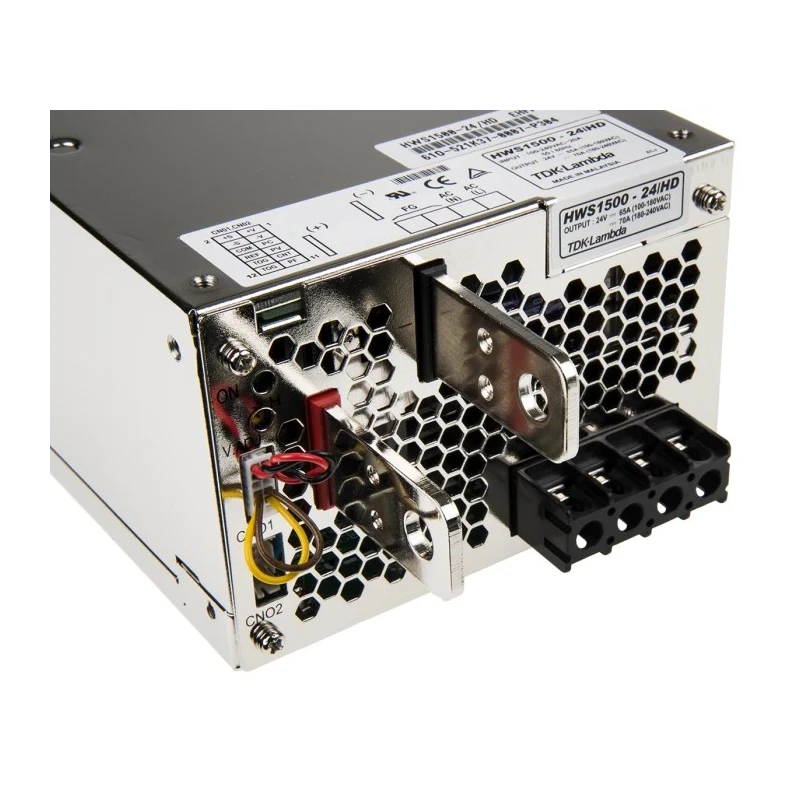

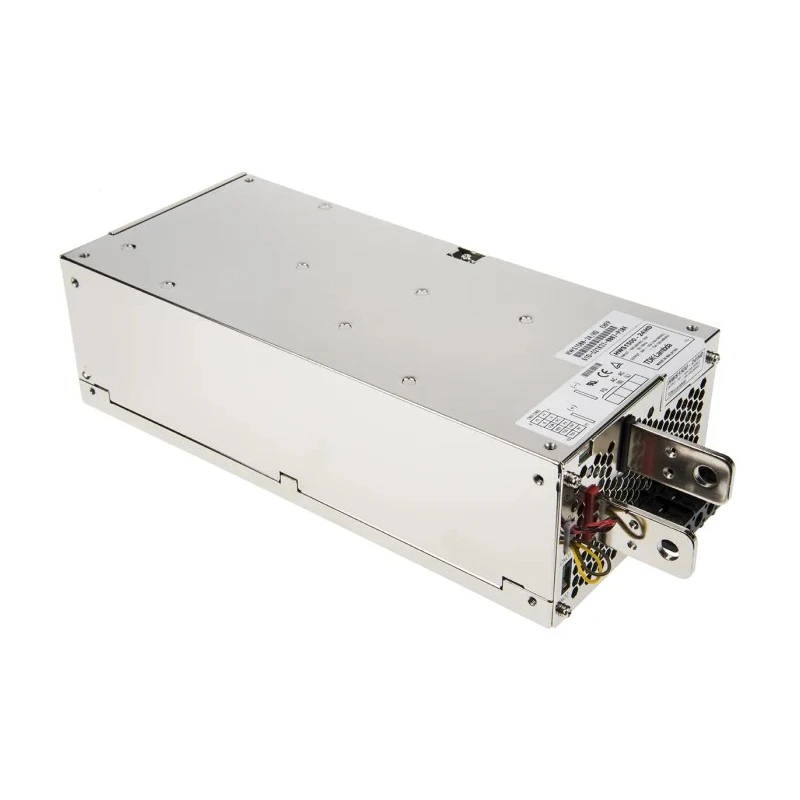

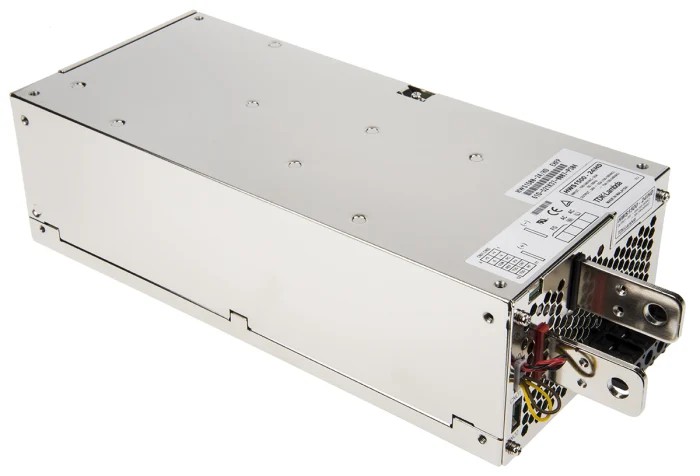

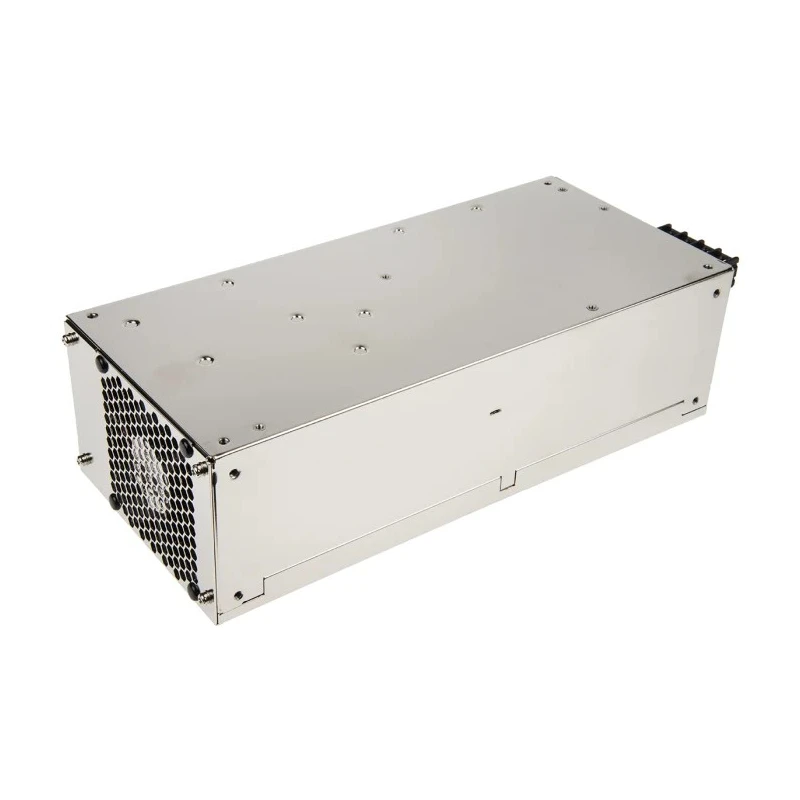

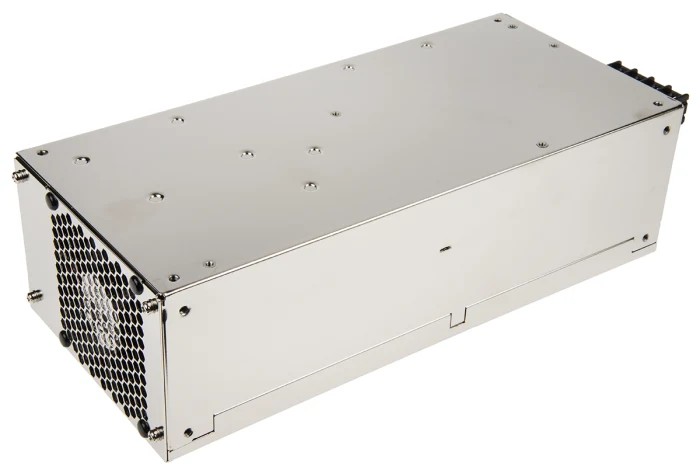

TDK-Lambda Switching Power Supply 24V DC, 1.5 kW Power, 370 V DC Input, 265 V AC HWS1500-24/HD
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | TDK-Lambda |
| Power | 1.5kW |
| Efficiency | 88% |
| Length | 11in |
| Model | HWS1500-24/HD |
| Depth | 5in |
| Gross Weight | 3.8kg |
| Width | 3.25in |
| Mount Type | Rack |
| Series | HWS |
| Maximum Operating Temperature | 71°C |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 265V dc |
| Standards/Approvals | FCC VCC, HWS1500: Class A, IEC 61000-4-2, IEC/EN/UL/CSA 60950-1 and 62368-1, SEMI-F47, UL 508, EN 55011 / EN 55022, EN 50178, CE |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 70A |
| Minimum Input Voltage | 85V ac |
| Standards/ApprovalsFCC VCC, HWS1500 | Class A, IEC 61000-4-2, IEC/EN/UL/CSA 60950-1 and 62368-1, SEMI-F47, UL 508, EN 55011 / EN 55022, EN 50178, CE |
| FCC VCC, HWS1500 | Class A, IEC 61000-4-2, IEC/EN/UL/CSA 60950-1 and 62368-1, SEMI-F47, UL 508, EN 55011 / EN 55022, EN 50178, CE |
Key Features
- Provides a single output of 24V DC with a maximum current of 70A.
- Supports wide input voltage range from 85VAC to 265VAC and DC input from 120VDC to 330VDC.
- Built-in protections include overvoltage and overcurrent safeguards.
- Compact design with rack mount capability, dimensions 11in length, 5in depth, and 3.25in width.
- High efficiency rated at 88% ensuring energy savings and reduced heat dissipation.
- Designed for harsh industrial environments with standards compliance including SEMI F47 and multiple safety approvals.
- Equipped with LED power-on indicator and built-in fan for cooling.
- Operating temperature range from -10°C up to 71°C for reliable performance.
Product Description
The TDK-Lambda HWS1500-24/HD is a high-performance switching power supply designed for demanding industrial and commercial applications. It offers a regulated 24V DC single output with a power rating of 1.5 kW and a maximum output current of 70A, ensuring stable power delivery for sensitive electronic systems.
This switch mode power supply accepts a wide range of input voltages, from 85VAC up to 265VAC, as well as DC input voltages between 120VDC and 330VDC, providing versatility in installation environments. Its compact rack-mount design with dimensions of 11 inches in length, 5 inches depth, and 3.25 inches width makes it ideal for space-constrained setups.
Key features include adjustable output voltage with a ±20% range, integrated overvoltage and overcurrent protection, and compliance with international safety and electromagnetic compatibility standards such as UL 60950-1, IEC/EN 62368-1, FCC Class A, and SEMI F47, which is crucial for semiconductor manufacturing equipment.
The unit incorporates a built-in fan to maintain optimal operating temperatures and features an LED indicator for power status. Operating temperature spans from -10°C to 71°C, allowing reliable use in various industrial conditions.
This power supply is widely used in factory automation, test and measurement instruments, and automated service machines, where robust and efficient DC power is required. Its 88% efficiency rating contributes to energy savings and lowers operational costs.
Provides a single output of 24V DC with 70A maximum current. Wide universal input voltage supports 85 to 265VAC and 120 to 330VDC. Compact rack mount with dimensions: 11in (L) x 5in (D) x 3.25in (W). High efficiency of 88% reduces energy consumption.
Built-in fan cooling and LED power indicator included. Complies with multiple international safety and EMC standards. Adjustable output voltage range ±20% for flexible operation. Overvoltage and overcurrent protection enhance durability.
Operating temperature range from -10°C to 71°C.
Upgrade your industrial power systems with the reliable and efficient TDK-Lambda HWS1500-24/HD power supply. Browse more solutions in the Switching Power Supplies category on EnvMart for related products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 70A.
It accepts a wide input voltage range from 85VAC to 265VAC and DC input from 120VDC to 330VDC.
The dimensions are 11 inches in length, 5 inches in depth, and 3.25 inches in width.
It has an efficiency rating of 88%, which helps in energy savings and reduces heat dissipation.
It complies with multiple safety and electromagnetic compatibility standards including UL 60950-1, IEC/EN 62368-1, and SEMI F47.
The operating temperature range is from -10°C to 71°C.
Yes, it includes built-in overvoltage and overcurrent protection safeguards.
It features a compact rack mount design.
The maximum input voltage is 370V DC and 265V AC.
This power supply has a power rating of 1.5 kW.
Yes, it is equipped with an LED power-on indicator.
It is widely used in factory automation, test and measurement instruments, and automated service machines.
