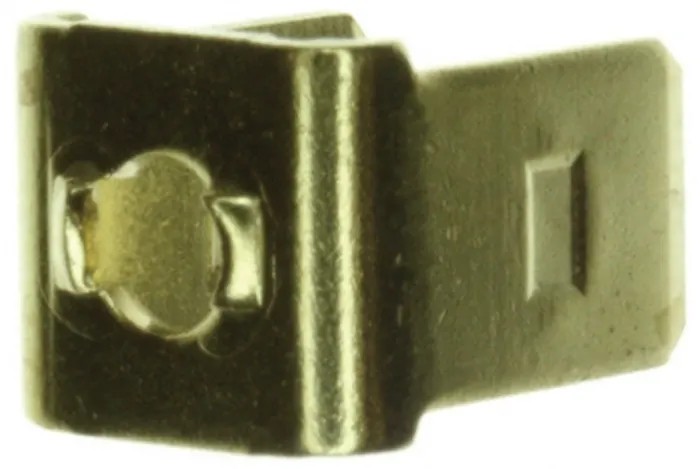

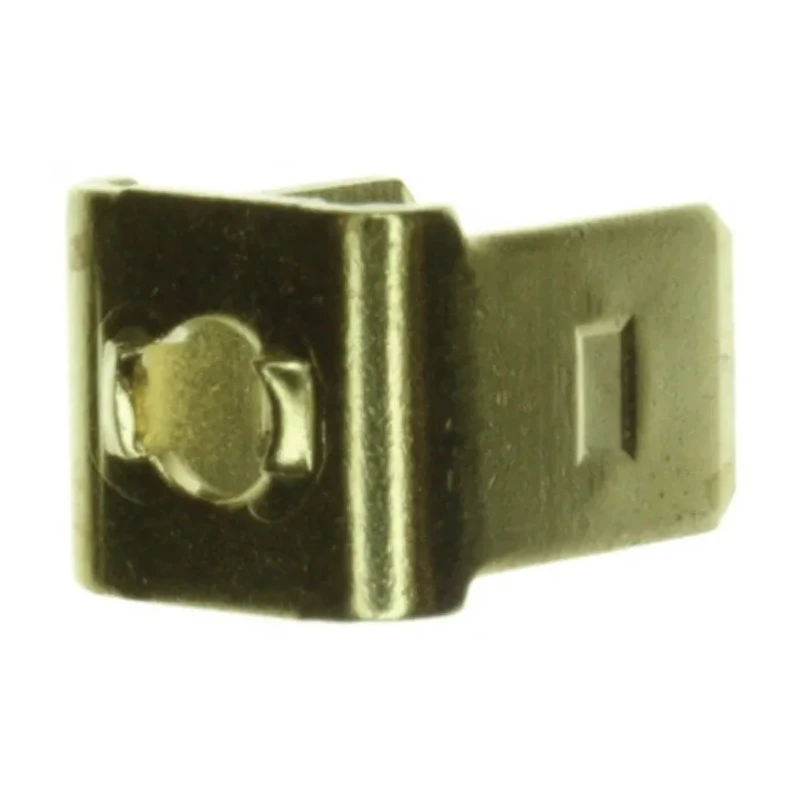

Keystone PC QUICK-FIT Uninsulated Male Spade Connector, Crimp Termination, 6.4 x 0.81 mm Tab Size 1257

Free Delivery in India | Lowest Global Shipping Charges

Keystone PC QUICK-FIT Uninsulated Male Spade Connector, Crimp Termination, 6.4 x 0.81 mm Tab Size 1257

Name: Keystone PC QUICK-FIT Uninsulated Male Spade Connector, Crimp Termination, 6.4 x 0.81 mm Tab Size 1257
Brand: Keystone
SKU: 148063
Price: 0.86 USD
Availability: InStock



Category Spade Connector Brand Keystone Condition New

Specifications

Country of Origin	United States
Brand	Keystone
Orientation	Vertical
Model	1257
Gender	Male
Insulation	Uninsulated
Overall Length	8.7mm
Contact Material	Brass
Series	PC QUICK-FIT
Termination Type	Crimp
Insulation Material	Thermoplastic
Contact Plating	Tin
Tab Width	0.81mm
Tab Thickness	6.4mm

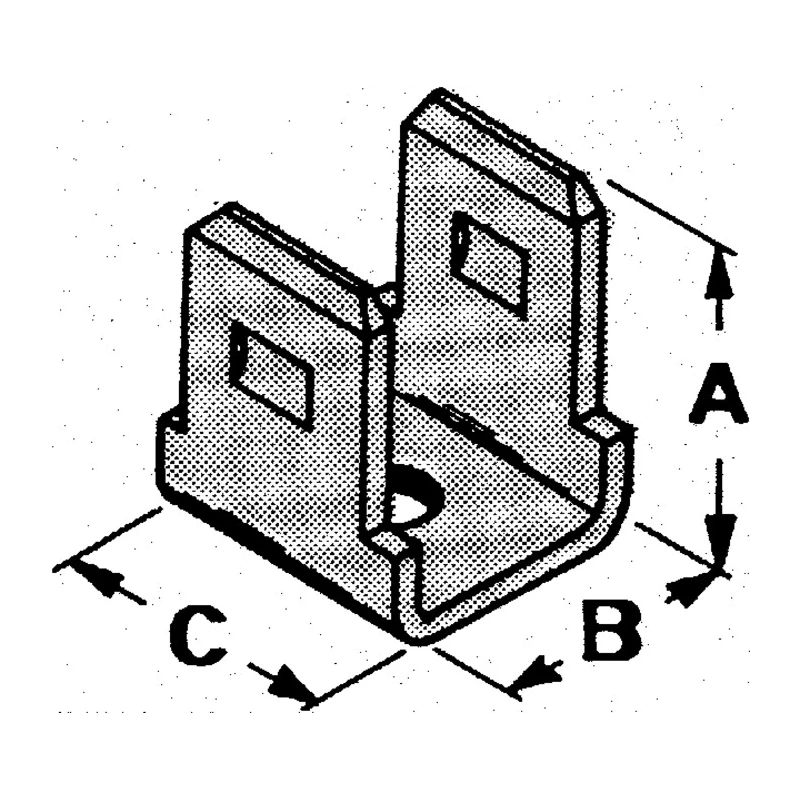

Tab Size	6.4 x 0.81 mm

Key Features

Constructed with brass contact material ensuring durability.
Features tin plating for enhanced corrosion resistance.
Designed with an uninsulated tab size of 6.4 x 0.81 mm for standard Faston clips.
Vertical orientation suits printed circuit board mounting.
Overall length measures 8.7 mm facilitating compact connections.
Thermoplastic insulation material adds mechanical protection despite uninsulated contact tab.
Compatible with 3.07 mm diameter rivets for secure PCB installation.
Part of the PC QUICK-FIT series providing standardized connectivity solutions.

Product Description

Keystone 1257 Uninsulated Male Spade Connector is a precision-engineered electrical component designed for crimp termination applications in electronics and electrical equipment. This connector features a brass contact body with a durable tin plating to ensure reliable conductivity and resistance to corrosion in demanding environments.

The spade connector tab measures 6.4 x 0.81 mm, suitable for use with standard Faston clips and designed to be mounted on printed circuit boards using 3.07 mm diameter rivets, allowing for secure installation in complex assemblies.

The connector offers a vertical contact orientation and is uninsulated, optimized for flexibility in wiring systems where insulation is applied elsewhere. Its thermoplastic insulation material balances mechanical strength with heat resistance, making it ideal for industrial, HVAC, manufacturing, and general electrical assembly uses.

With an overall length of 8.7 mm, the component fits well in high-density electrical setups. It belongs to the PC QUICK-FIT series from Keystone, a trusted range known for quality and standard compliance, although this particular model carries no additional certifications.

Constructed with brass contact material ensuring durability. Features tin plating for enhanced corrosion resistance. Designed with an uninsulated tab size of 6.4 x 0.81 mm for standard Faston clips. Vertical orientation suits printed circuit board mounting.

Overall length measures 8.7 mm facilitating compact connections. Thermoplastic insulation material adds mechanical protection despite uninsulated contact tab. Compatible with Ø 3.07 mm rivets for secure PCB installation.

Part of the PC QUICK-FIT series providing standardized connectivity solutions.

This male spade connector is widely used in electronics manufacturing, power distribution wiring, HVAC control panels, and automotive electrical harnesses. Its simple crimp termination method enables fast, secure, and reliable electrical connections with minimal tooling.

Keystone products enjoy widespread acceptance in industrial and laboratory environments for their consistency and build quality. For full range browsing and additional solutions, customers are encouraged to explore the Spade Connector category at EnvMart.
