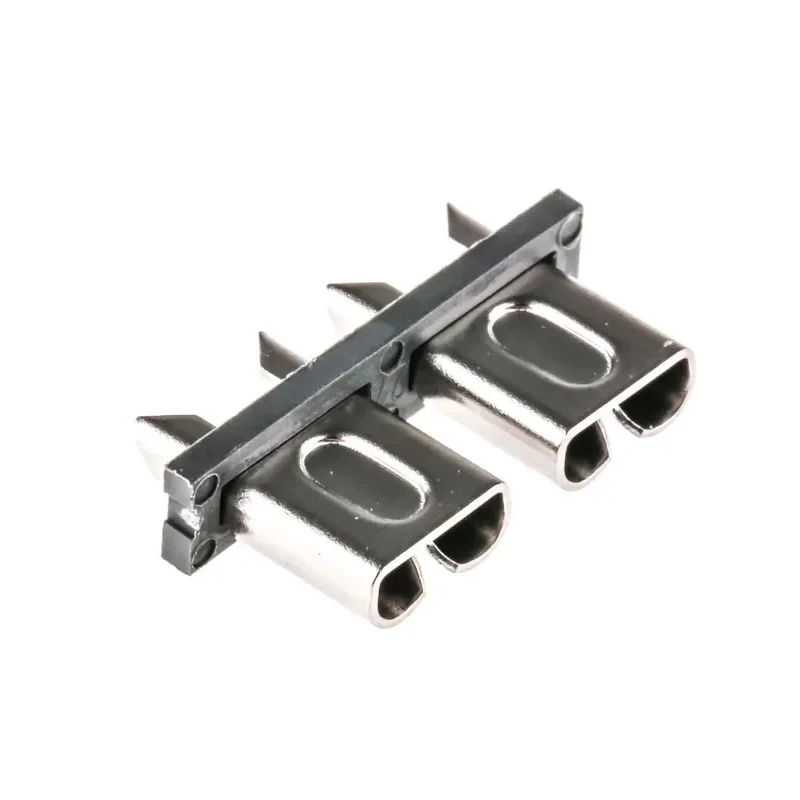

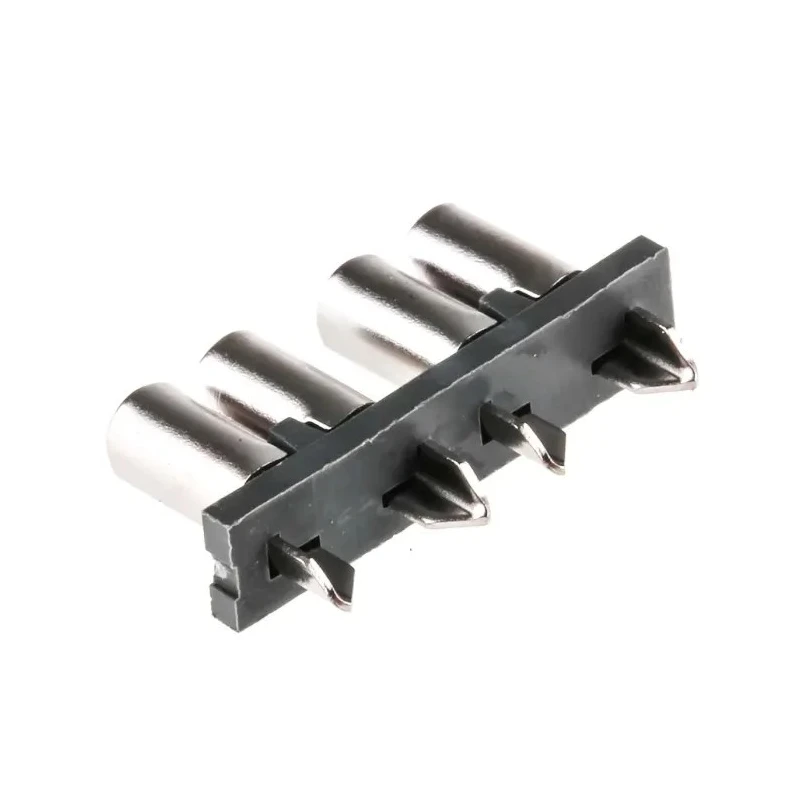

Keystone 20A PCB Mount Fuse Holder, 500V AC 3522-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Keystone |
| Body Material | Brass |
| Model | 3522-2 |
| Contact Material | Tin Plated Brass |
| Standards/Approvals | UL |
| Keystone 30A PCB Mount Fuse Holder, 500V acBrand | Keystone |
Key Features
- Constructed with a brass body for durability and corrosion resistance.
- Features tin-plated brass contacts to ensure reliable electrical connectivity.
- Complies with UL standards for safety and performance assurance.
- Vertical mount, through-hole PCB mounting suitable for wave soldering applications.
- Securely holds standard blade fuses even after multiple insertions.
- Space-saving low profile design minimizes PCB footprint.
- Engineered to withstand vibration and shock, ideal for industrial environments.
- Orientation of legs ensures proper installation on circuit boards.
Product Description
Keystone 3522-2 20A PCB Mount Fuse Holder is a robust electrical component designed for mounting standard blade fuses on printed circuit boards (PCB) with a voltage rating of 500V AC and current rating of 20 amps. It is constructed with a durable brass body and tin-plated brass contacts, providing excellent corrosion resistance and conductivity. The fuse holder meets UL standards, underscoring its adherence to recognized safety and quality regulations.
This fuse holder supports vertical mount through-hole PCB installation and is suitable for wave soldering processes, simplifying integration into various electronic assemblies. Its design ensures secure retention of fuses, sustaining reliable operation even after multiple insertion cycles, which makes it highly suitable for demanding industrial, automation, and electrical circuit applications requiring dependable overcurrent protection.
The space-saving low-profile design effectively reduces PCB real estate usage, and the fuse holder is engineered to withstand vibration and shock, enhancing reliability in harsh operational environments. Proper leg orientation aids in precise PCB installation. Keystone manufactures this product in the United States, underpinning premium build quality and consistent performance.
Durable brass body offers long-term reliability and corrosion resistance. Tin-plated brass contacts ensure excellent electrical conduction. Compliant with UL safety and quality standards. Designed for vertical mount, through-hole PCB installation with wave soldering compatibility.
Secures fuses firmly, maintaining connection through repeated use. Compact low-profile design optimizes PCB space. Built to withstand vibration and shock in industrial environments. Leg orientation supports straightforward PCB installation.
Manufactured in the United States for guaranteed quality.
Ideal for industrial, automation, electronic manufacturing, and electrical applications where reliable fuse mounting and protection are critical. This fuse holder ensures secure fuse placement with easy PCB integration for improved circuit safety.
Browse more PCB Mount Fuse Holders and related electrical components in EnvMart's extensive electronics catalog for comprehensive circuit protection solutions.
Explore more products in our Fuse Holders & Accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 500V AC and a current rating of 20 amps.
It features a brass body for durability and corrosion resistance, with tin-plated brass contacts for reliable electrical connectivity.
Yes, it complies with UL standards, ensuring safety and performance assurance.
This unit is designed for vertical mount through-hole PCB installation, making it suitable for wave soldering applications.
It is engineered to securely hold standard blade fuses, maintaining connection even after multiple insertions.
The fuse holder has a space-saving low-profile design that minimizes PCB footprint, although specific dimensions are not provided.
It is ideal for industrial, automation, electronic manufacturing, and electrical applications requiring reliable fuse mounting and protection.
The orientation of the legs is designed to support proper installation on circuit boards, aiding in straightforward integration.
It is engineered to withstand vibration and shock, making it suitable for harsh operational environments.
This product is manufactured in the United States, ensuring consistent build quality.
It securely holds standard blade fuses, making it compatible with widely used fuse types in electrical circuits.
The tin-plated brass contacts ensure excellent electrical conduction, enhancing the reliability of the electrical connection.
