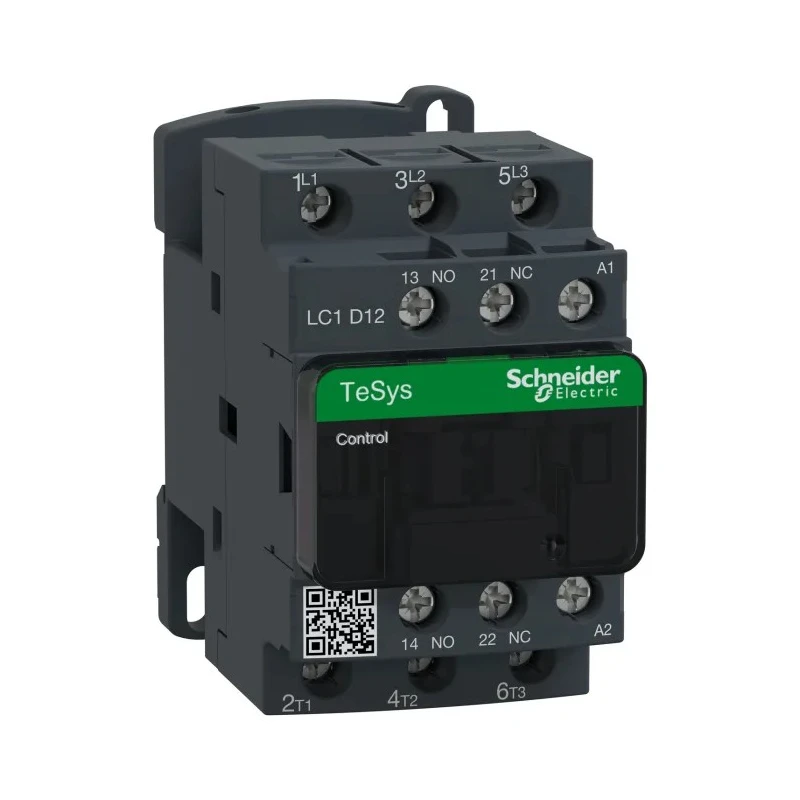

Schneider Electric TeSyS D 3-Pole Contactor, 400V AC Coil, 12 A Current, 5.5 kW 415V Power, 3 NO Contacts LC1D12N7

Schneider Electric LC1D12N7 TeSyS D 3-Pole Contactor is an essential component for motor control circuits and resistive load applications, operating with a coil voltage of 400V AC and built to handle a contact current of 12 A. Its power rating of 5.5 kW at 415V AC makes it suitable for demanding industrial environments.

This reversing contactor offers 3 Normally Open (NO) contacts along with 2 auxiliary contacts configured as 3 NO, providing flexible control options in complex automation setups. The unit is designed for DIN rail mounting, simplifying integration and maintenance.

With compact dimensions of 45mm (length) x 77mm (width) x 86mm (depth), it fits efficiently in control panels. It operates reliably within a temperature range of -5°C to +60°C, ensuring durability under diverse climatic conditions.

The screw terminal type ensures dependable connections, while compliance with international standards such as IEC 60947-4, CSA C22.2 No. 14, EN 60947-4-1, UL 508, and RoHS ensures safety and quality.

This contactor is ideal for applications including motor control, automating production lines requiring reversing functions, and managing resistive loads in industrial settings. It is also part of the Schneider Electric Better World product range, designed for environmental sustainability with easy disassembly for recycling.

Equipped with a 400V AC coil voltage for stable operation. Rated contact current of 12 A suitable for various industrial loads. Power rating of 5.5 kW at 415V AC for powerful performance. Features 3 Normally Open (NO) contacts with reversing functionality.

Designed for DIN rail mounting enabling easy installation and maintenance. Operational temperature range from -5°C to 60°C supporting varied environments. Compact dimensions measuring 45mm length, 77mm width, and 86mm depth.

Includes 2 auxiliary contacts configured as 3 NO for enhanced control options. Complies with IEC 60947-4, CSA C22.2 No. 14, EN 60947-4-1, UL 508, and RoHS standards. Robust screw terminal type construction for secure electrical connections.

Explore more Schneider Electric Contactors and automation & control gear products at EnvMart to enhance your industrial automation solutions.
