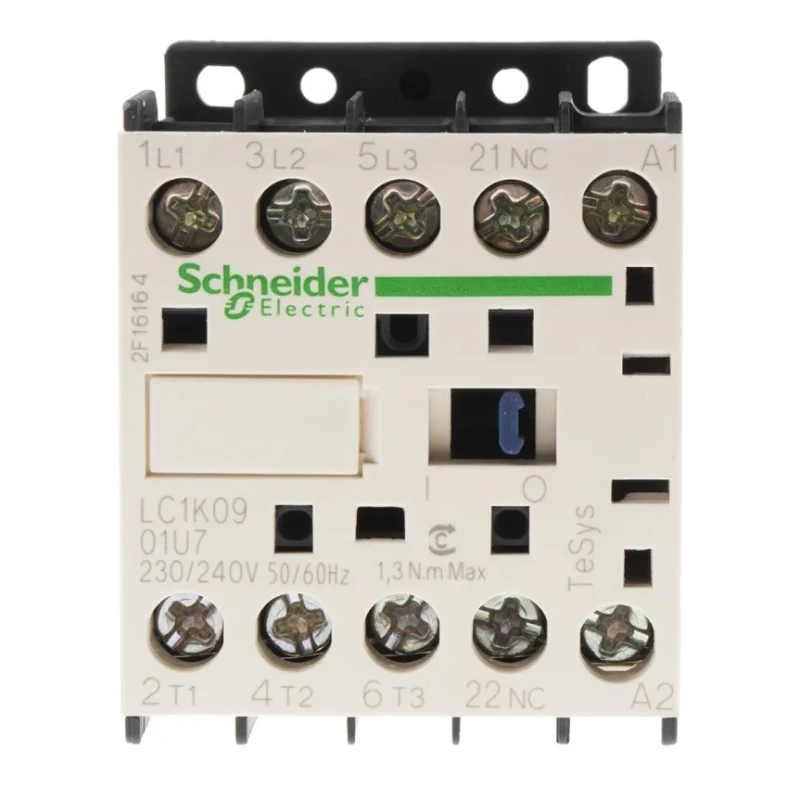

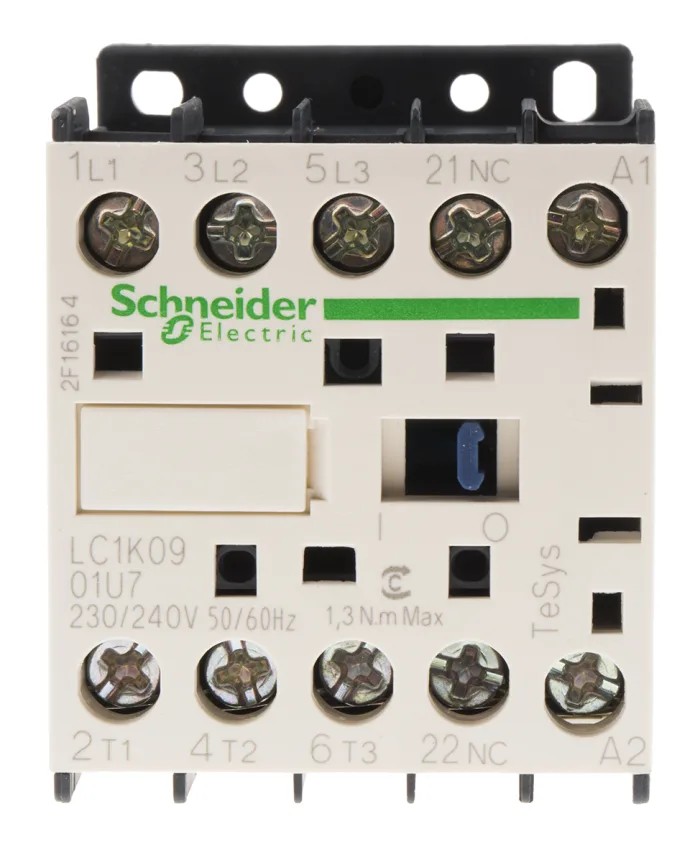

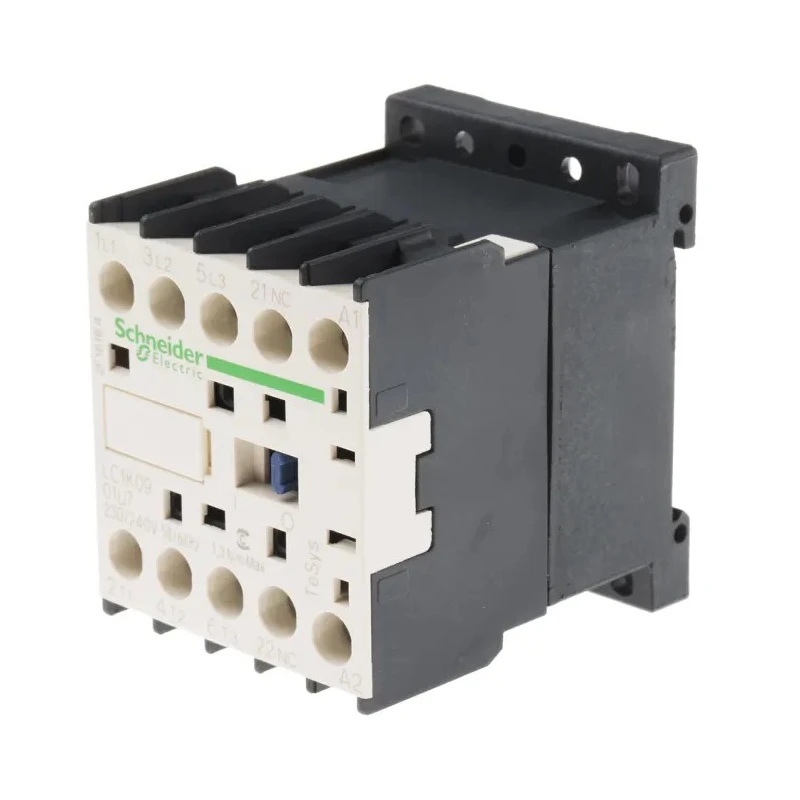

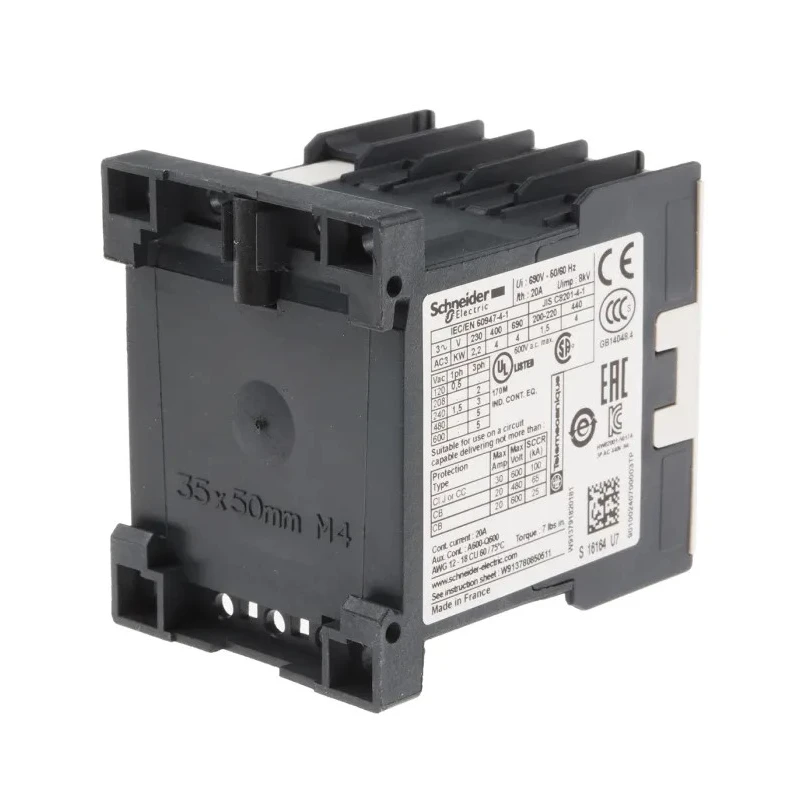

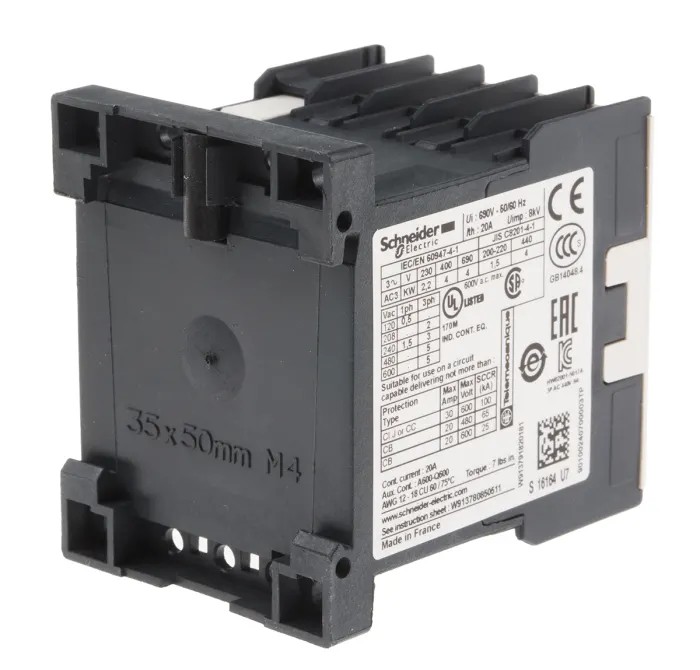

Schneider Electric TeSys K Contactor 230V AC Coil Voltage 3-Pole 9A 4kW 3 NO 690V AC LC1K0901U7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 58mm |
| Model | LC1K0901U7 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys K |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 240V |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3P |
Key Features
- Equipped with a robust 230V AC coil for reliable motor control.
- Designed for 3-pole operation supporting three-phase systems.
- Rated for a contact current of 9 amperes and power of 4 kilowatts at 240V.
- Features 3 normally open (NO) contacts and 1 normally closed (NC) auxiliary contact.
- Mounts easily on DIN rails with screw terminal connections for secure wiring.
- Operates efficiently within temperature ranges from -25°C to 50°C.
- Complies with international standards including UL 508, IEC 60947-4, EN 60947-4-1, and CSA C22.2 No. 14.
- Compact dimensions of 58mm (L) x 45mm (W) x 57mm (D) save panel space.
Product Description
Schneider Electric LC1K0901U7 TeSys K Series Contactor is engineered for efficient motor control in industrial settings. This 3-pole contactor features a 230V AC coil and supports a contact current of 9A with a power rating of 4 kW at 240V, providing reliable and robust operation for various electrical switchgear and motor control panels.
The device includes 3 normally open contacts and 1 normally closed auxiliary contact for versatile control configurations. Its screw terminal design ensures secure and easy wiring, while the DIN rail mounting facilitates swift installation and optimal space usage in control panels.
Operating within a broad temperature range from -25°C to +50°C, this contactor ensures stable performance under challenging environmental conditions. The compact design with dimensions of 58mm length, 45mm width, and 57mm depth makes it suitable for integration in a variety of industrial machinery and automation systems.
Certified to meet rigorous standards including UL 508, RoHS, IEC 60947-4, EN 60947-4-1, and CSA C22.2 No. 14, the LC1K0901U7 complies with global safety and quality requirements. It is ideal for motor control applications, resistive loads, and automation processes requiring high reliability and efficiency.
Equipped with a 230V AC coil for effective motor control. Supports 3-pole, 9A contact current operation for three-phase systems. Includes 3 NO contacts and a 1 NC auxiliary contact for enhanced circuit control. Compact size allows space saving in control panels.
Screw terminals provide reliable and easy wiring connections. Designed to operate within -25°C to +50°C ambient temperatures. Facilitates quick installation via DIN rail mounting. Compliant with multiple international safety and performance standards.
Suitable for use in industrial machinery, automation, and electrical distribution systems.
The Schneider Electric TeSys K contactor LC1K0901U7 combines rugged performance with sustainability, featuring a design optimized for disassembly to support recycling and environmental responsibility. It is a trusted choice for industrial and commercial electrical control gear, delivering efficiency and reliability across diverse motor control and switching applications.
Explore more Schneider Electric products and industrial Contactors in the EnvMart catalog for advanced automation and control solutions that meet modern electrical system demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor operates with a coil voltage of 230V AC.
It has a maximum contact current rating of 9A.
The power rating is 4 kW at 240V.
This contactor is designed for 3-pole operation.
It includes 3 normally open (NO) contacts and 1 normally closed (NC) auxiliary contact.
The dimensions are 58mm in length, 45mm in width, and 57mm in depth.
It operates efficiently within a temperature range of -25°C to 50°C.
It supports DIN rail mounting for easy installation.
It complies with UL 508, IEC 60947-4, EN 60947-4-1, and CSA C22.2 No. 14.
The contactor uses screw terminals for secure wiring connections.
It is suitable for motor control and resistive load applications.
The country of origin for this contactor is India.
