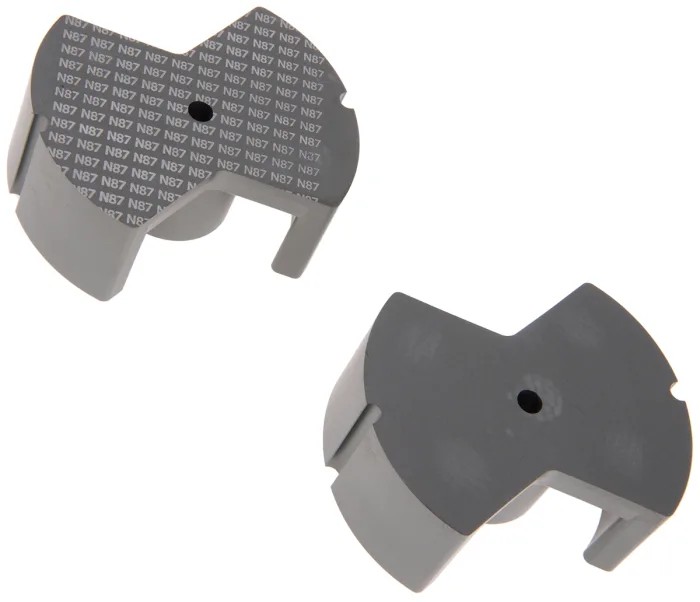

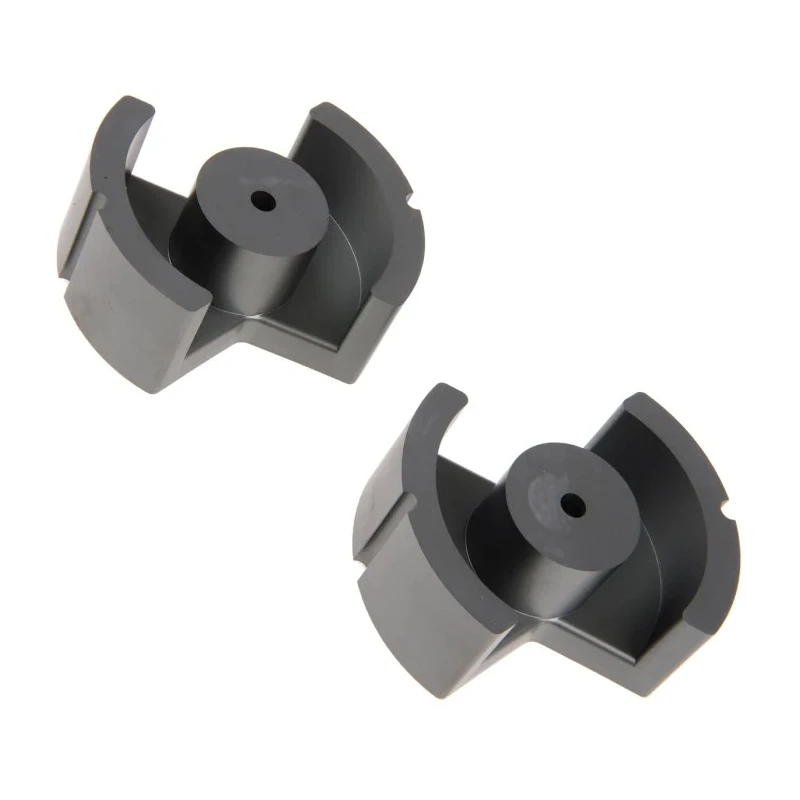

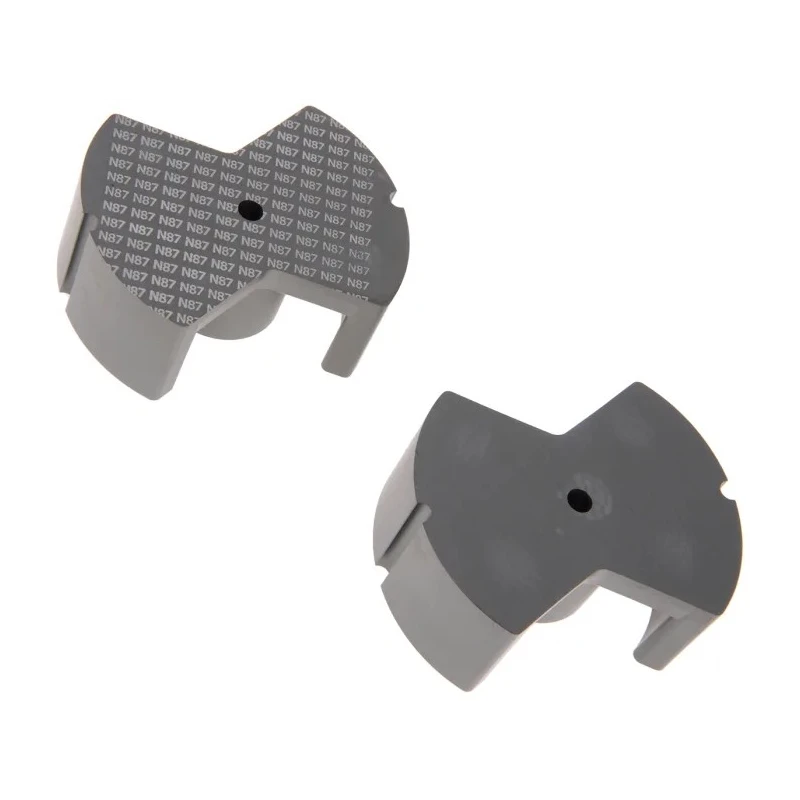

TDK Transformer Ferrite Core PM 74/59, N87 Material, 10000 nH AL Rating, 74mm Length, 59mm Width, Max B65686A0000R087
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | N87 |
| Length | 74mm |
| Model | B65686A0000R087 |
| Width | 59mm |
| Series | B65686 |
| Maximum Operating Temperature | 155°C |
| For Use With | Energy Storing Choke |
| Standards/Approvals | IEC 61247 |
| Core Size | PM 74/59 |
| AL Rating | 10000nH |
| Core Type | PM |
| N87 Transformer Core, 10000nH, For Use With Energy storing chokeBrand | Epcos |
Key Features
- Constructed with high-quality N87 ferrite material ensuring reliable magnetic performance.

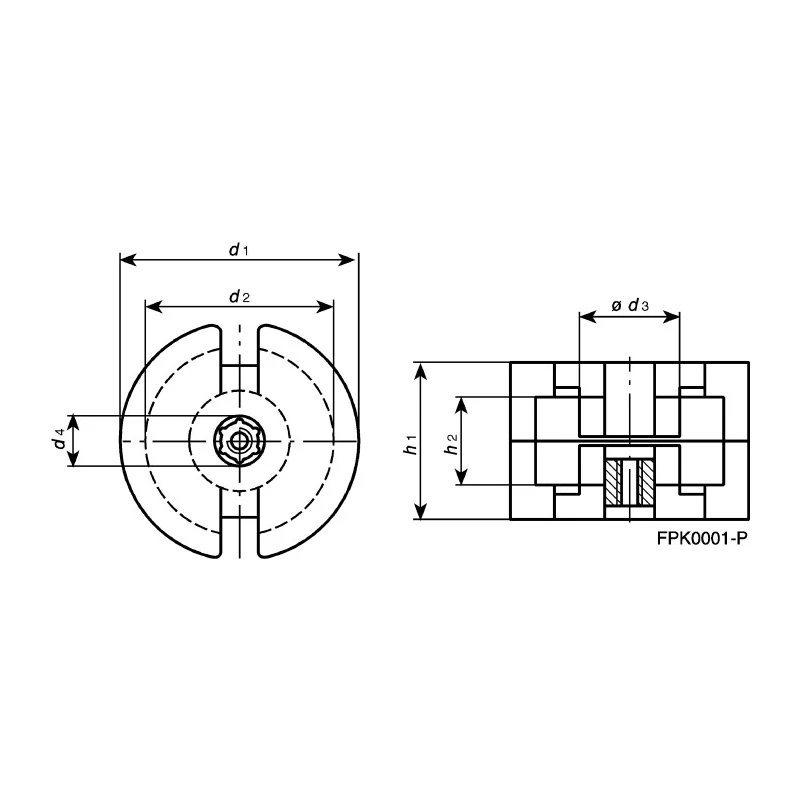

- Core size is PM 74/59 with dimensions 74mm length and 59mm width for precise fitting.
- Maximum operating temperature is 155°C, suitable for high-temperature environments.
- Compatible for use with energy storing chokes in power and industrial electronics.
- Complies with IEC 61247 standards ensuring quality and safety.
- Part of the B65686 series for consistent electrical properties.
- Designed for power repeaters and high-energy timed power supply devices.
- Includes robust construction adequate for industrial and communications technology.
Product Description
TDK B65686A0000R087 transformer ferrite core PM 74/59 is crafted from premium N87 material, offering an AL rating of 10000 nH. Designed specifically for energy storing choke applications, this core provides reliable magnetic characteristics essential for power repeaters and storage coils in high-energy timed power supplies.
Its compact dimensions of 74 mm length and 59 mm width make it well-suited for precise assemblies where space and performance are critical. The core can operate safely up to 155°C, making it suitable for demanding industrial and communication environments.
Manufactured under the strict IEC 61247 standards, the core belongs to the B65686 series ensuring consistency in electrical and mechanical performance. This transformer core is particularly used in power and industrial electronics, including chassis assembly with consideration for orientation in PCB mounting.
Constructed with high-grade N87 ferrite material for enhanced magnetic efficiency and durability. AL rating of 10000 nH ensures effective inductance for energy storing choke applications. Meets IEC 61247 standards for reliable and safe industrial usage.
Dimensions: 74 mm length and 59 mm width for accurate fit and mounting. Withstands maximum operating temperature of 155°C suitable for high-load conditions. Ideal for use in power repeaters, communications technology, and industrial electronics.

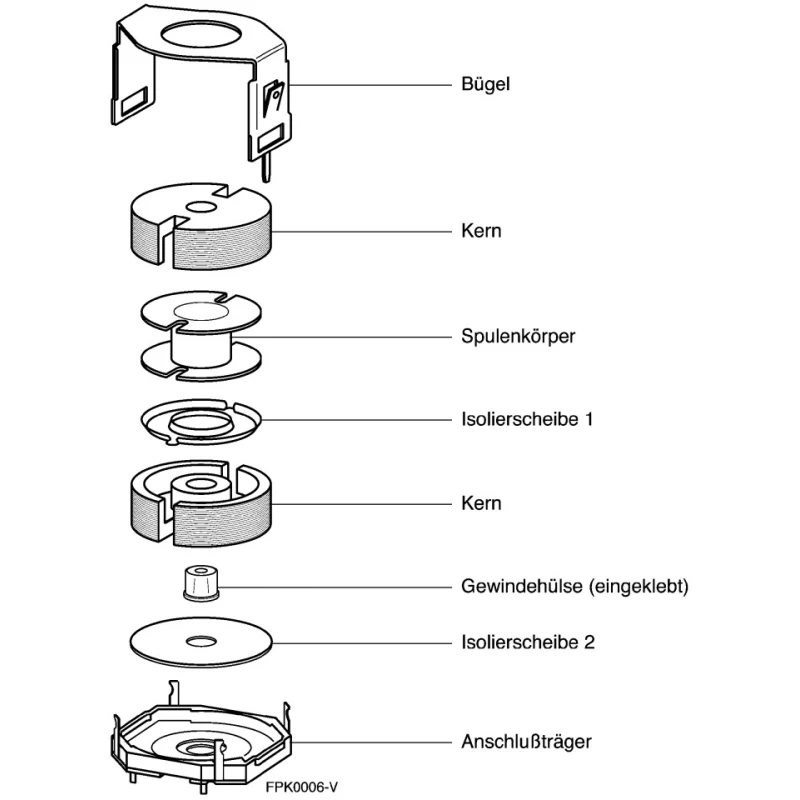

Designed for both chassis and PCB assembly with included nut and washer hardware for secure installation. Enhances performance in energy storage coils in high-energy timed power supply devices.
This transformer ferrite core is an essential component for engineers and technicians working in industrial power supplies, communication devices, and manufacturing equipment. Its technical reliability and robust construction improve overall system efficiency and durability.
Explore additional Transformer Cores and components at EnvMart for comprehensive solutions tailored to industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This transformer ferrite core has a length of 74 mm and a width of 59 mm, making it suitable for precise fitting in various applications.
The maximum operating temperature for this model is 155°C, allowing it to function effectively in high-temperature environments.
It is constructed from high-quality N87 ferrite material, which ensures reliable magnetic performance.
The AL rating of this transformer core is 10000 nH, which is essential for effective inductance in energy storing choke applications.
This model complies with IEC 61247 standards, ensuring quality and safety in its applications.
It is designed for use with energy storing chokes in power and industrial electronics, particularly in power repeaters and high-energy timed power supply devices.
Yes, this transformer ferrite core is designed for both chassis and PCB assembly, ensuring versatility in installation.
This core is part of the B65686 series, which ensures consistency in electrical and mechanical performance.
This model is classified as a PM type core, specifically the PM 74/59 size.
The core includes nut and washer hardware for secure installation, facilitating easy assembly in various applications.
It is intended for applications in energy storing chokes, enhancing performance in high-energy timed power supply devices.
The country of origin for this transformer ferrite core is India.
