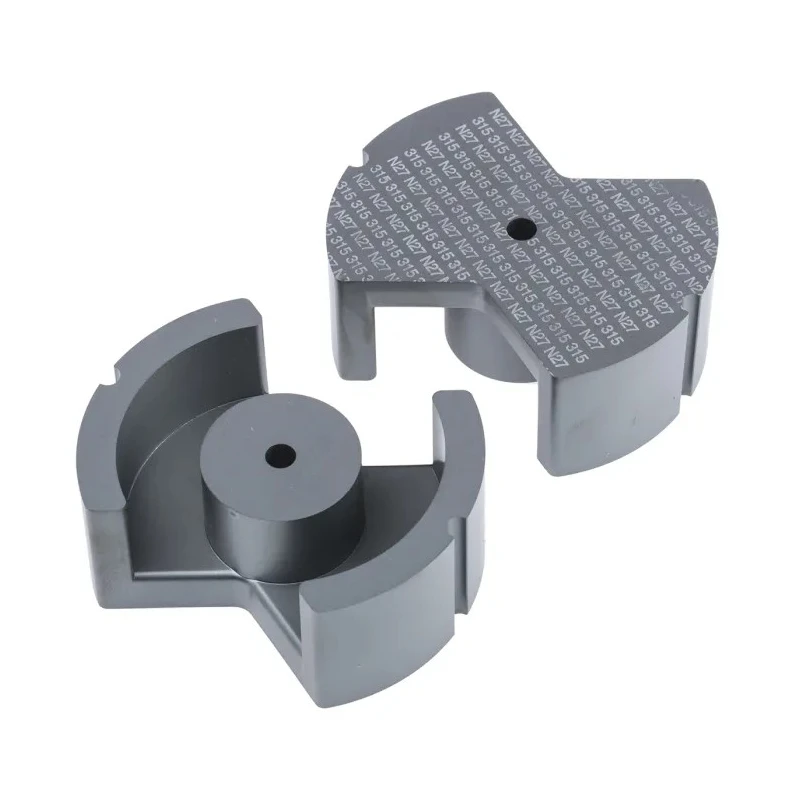

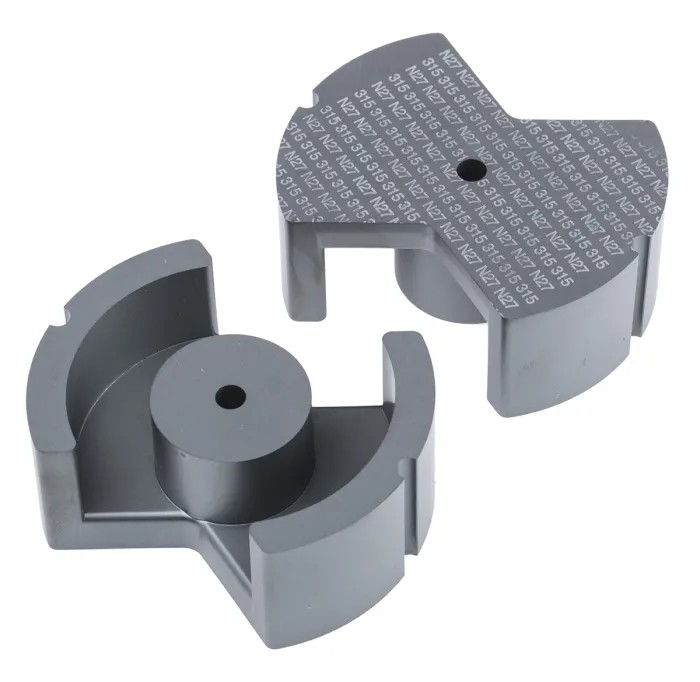

TDK Transformer Ferrite Core PM 74/59, N27 Material, 315 nH AL Rating, 155°C Max Operating Temperature B65686A0315A027

TDK B65686A0315A027 Transformer Ferrite Core PM 74/59 is engineered to meet the rigorous demands of energy storing choke applications, providing outstanding magnetic performance with its N27 ferrite material and 315 nH AL rating. This component is suitable for use in power repeaters, high-energy timed power supply devices, communications technology, and various industrial electronic applications.

The PM core type complies with IEC 61247 standards, assuring durability and operational safety even under maximum operating temperatures of up to 155°C. Its 74 mm length and 59 mm depth dimensions allow for seamless integration into chassis assembly or printed circuit boards. The core includes mounting hardware such as nuts and washers for stable installation.

TDK's B65686 series transformer cores are recognized for their reliable construction and performance consistency, making them a preferred choice in power supplies and transformers.

This transformer core has a core size of PM 74/59, suitable for energy storing choke applications. Constructed with high-quality N27 ferrite material for optimal magnetic properties. Features an AL rating of 315 nH, ensuring efficient inductance performance.

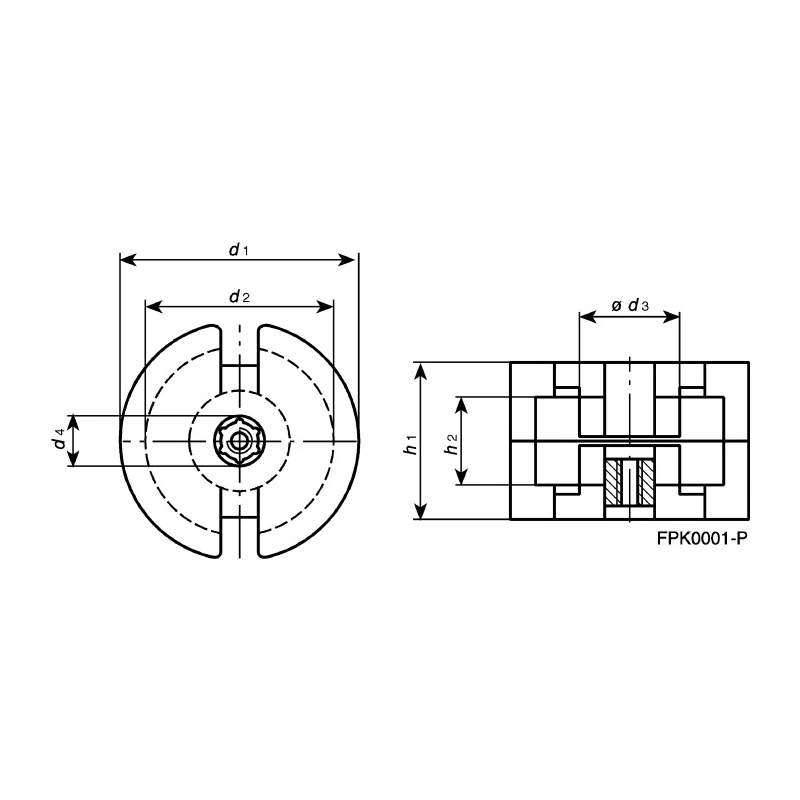

Maximum operating temperature is rated at 155°C, suitable for demanding environments. Core type is PM, adhering to IEC 61247 standards for reliability and safety. Dimensions include a length of 74 mm and a depth of 59 mm for precise fitting.

Comes as part of the B65686 series by TDK, known for quality transformer components. Ideal for use in power repeaters, storage coils in high-energy timed power supply devices, communication technology, and industrial electronics.

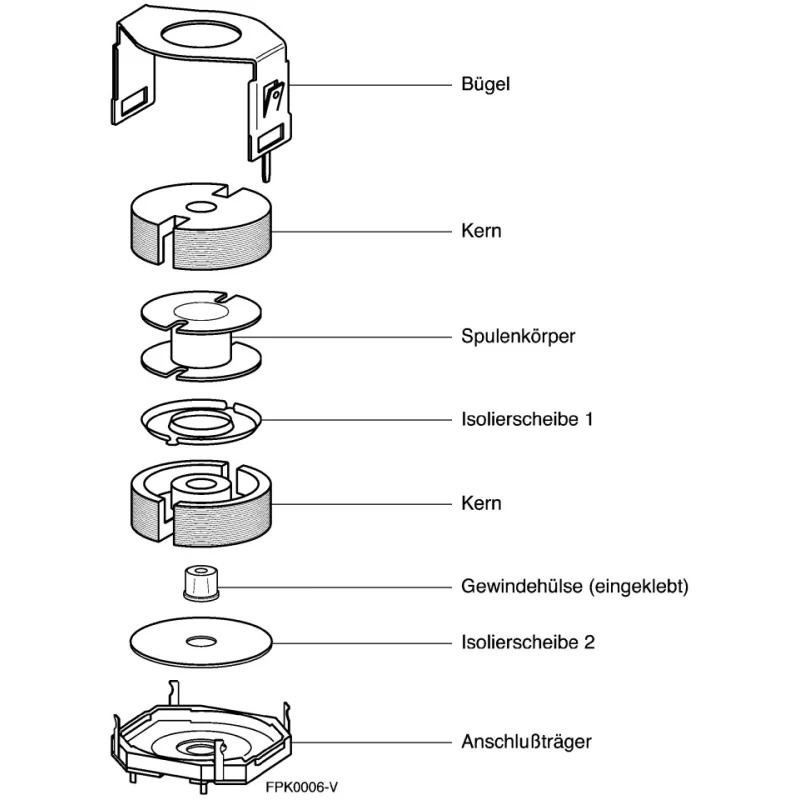

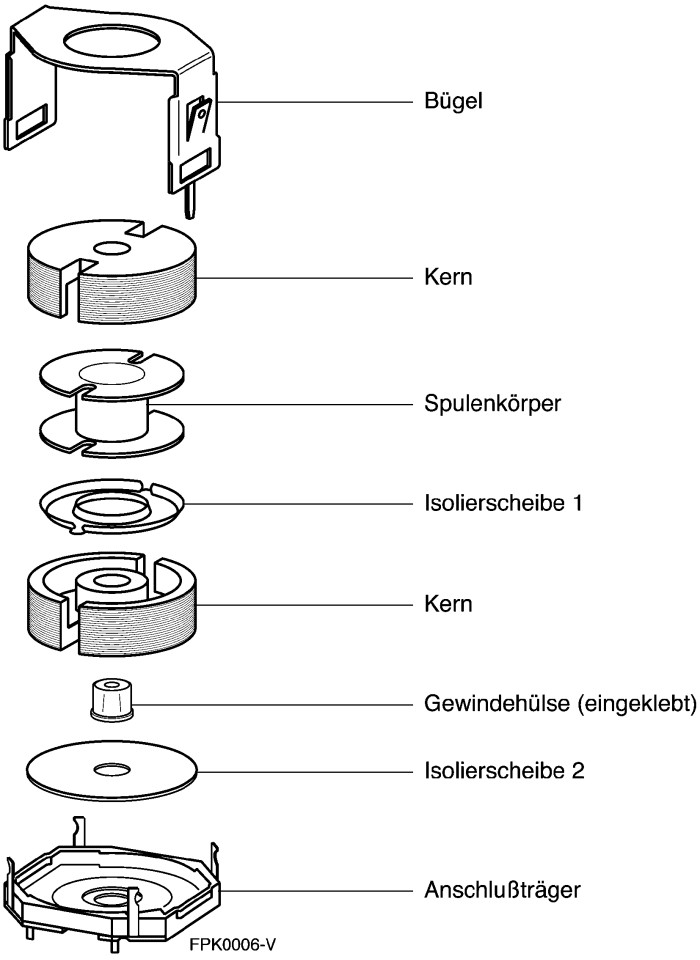

Designed for chassis assembly or PCB installation, with included nuts and washers for mounting. Explore EnvMart's extensive range of Transformer Cores and electrical components to find compatible parts for your industrial and electronic needs.
