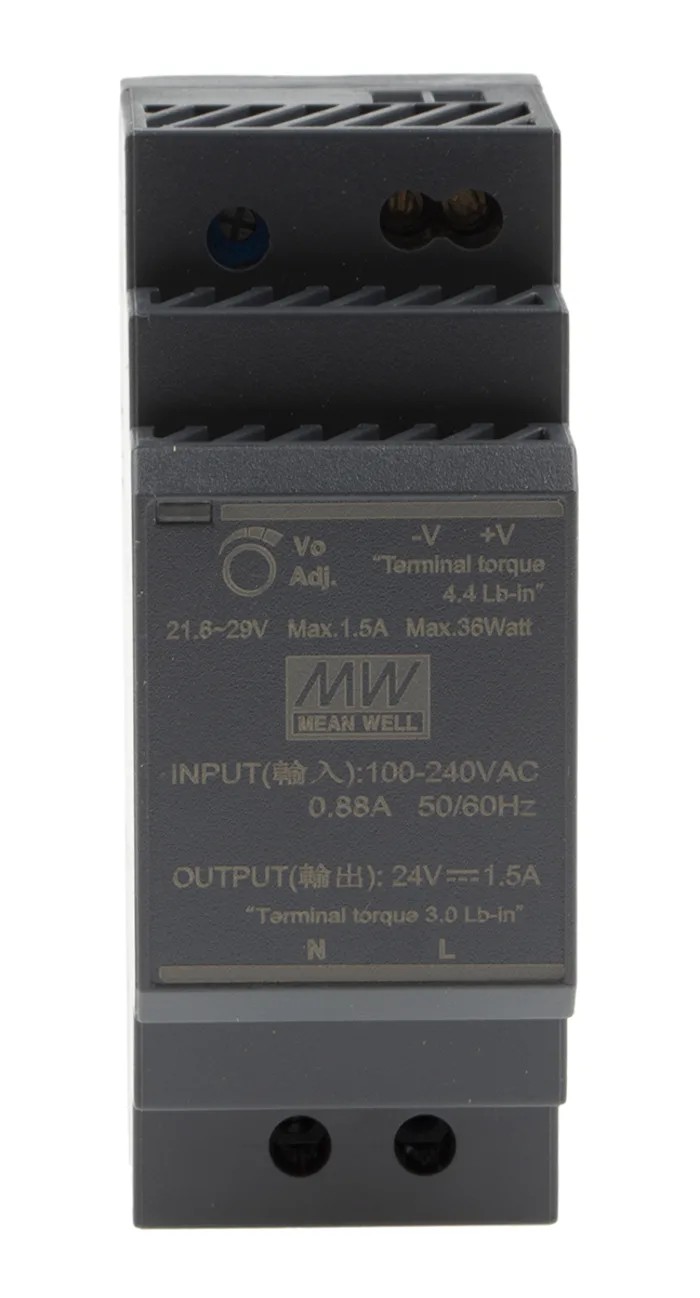

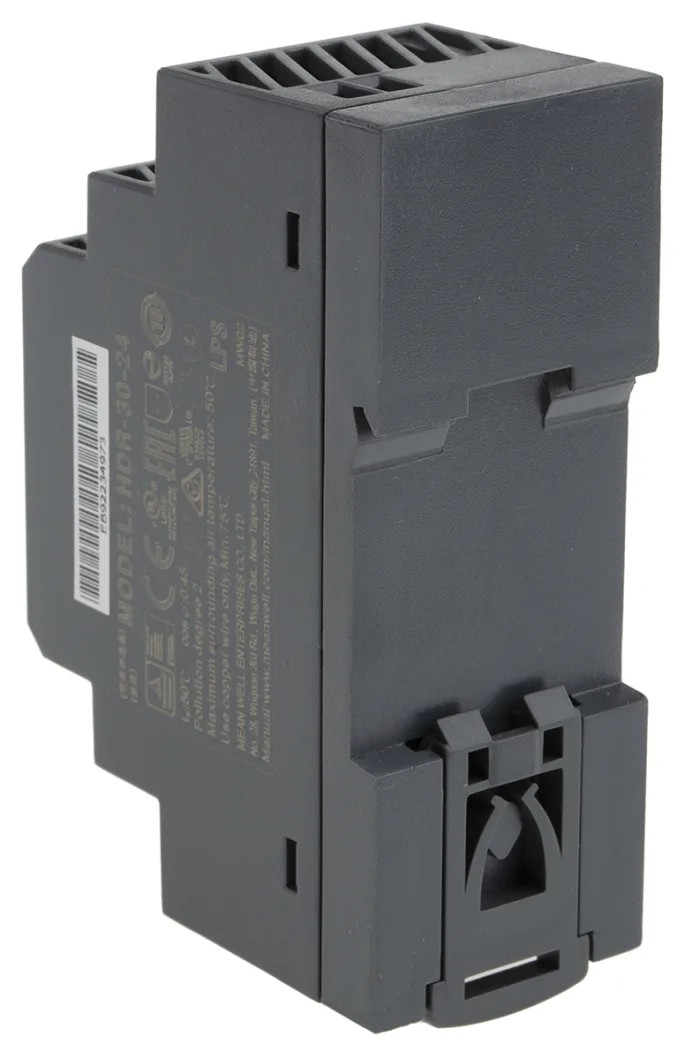

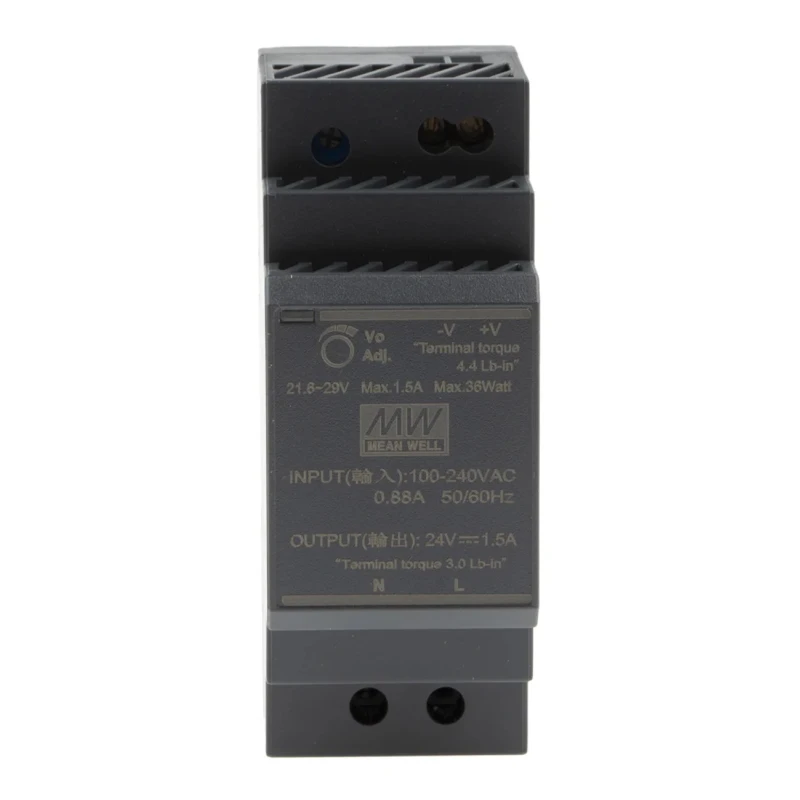

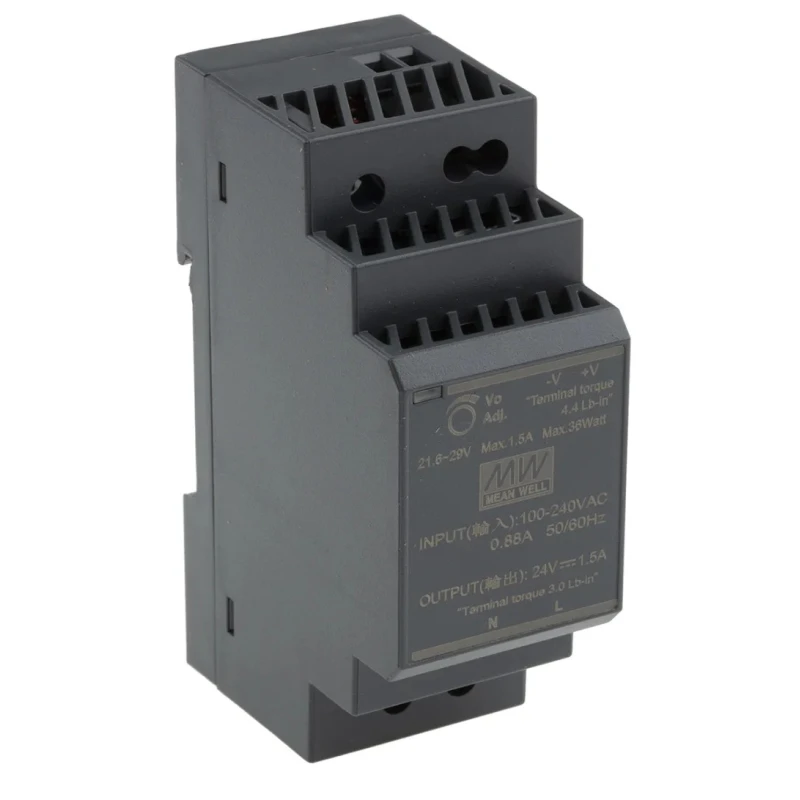

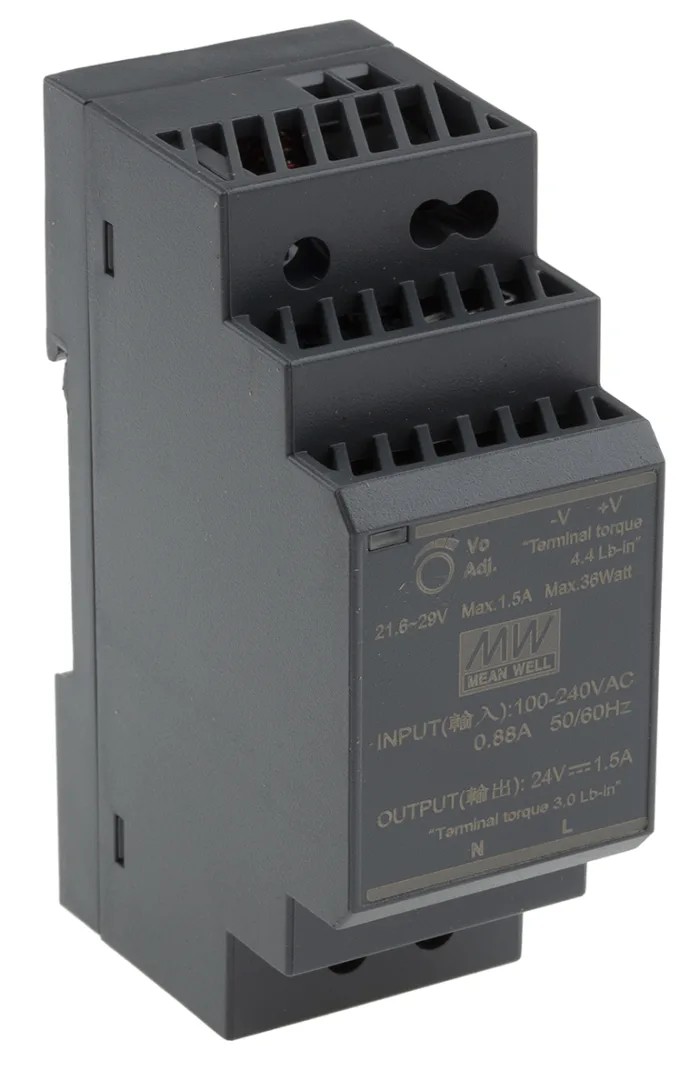

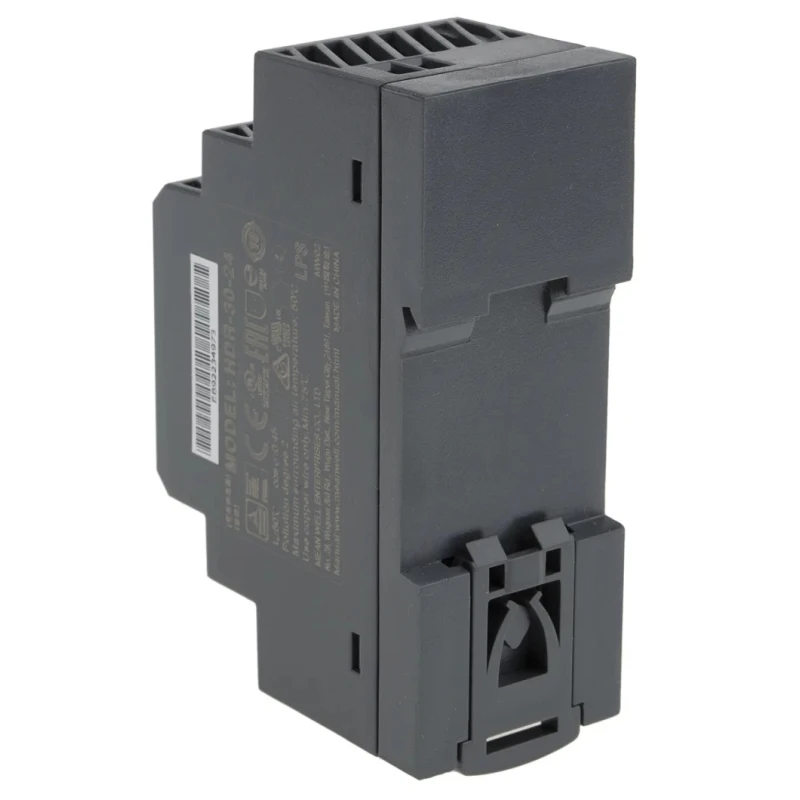

MEAN WELL Ultra Slim Switched Mode DIN Rail Power Supply 370V DC/264V AC Input 24V DC, 1.5A Output, 36W HDR-30-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 36W |
| Efficiency | 89% |
| Height | 90mm |
| Model | HDR-30-24 |
| Depth | 54.5mm |
| Width | 35mm |
| Series | Ultra Slim |
| Output Current | 1.5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Electrical Phase | 1 |
| Standards/Approvals | UL, TUV EN 609501, RoHS |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Compact ultra slim design optimized for space saving within cabinets.
- Wide input voltage range supporting 85V AC to 370V DC ensures versatile application.
- Stepped shape plastic housing with isolation Class II for electrical safety.
- Adjustable DC output voltage to meet varied industrial requirements.
- Operating temperature range from -30°C to 70°C suited for diverse environments.
- High efficiency of 89% reduces energy loss.
- Compatible with TS-35/7.5 or TS-35/15 DIN rails for easy installation.
Product Description
MEAN WELL HDR-30-24 Ultra Slim Switched Mode DIN Rail Power Supply is a high-efficiency, compact solution designed for industrial and electronic applications requiring reliable DC power.
This power supply supports a maximum output voltage of 24V DC at 1.5A delivering a total power of 36W. It features a wide input voltage range accepting both AC (85V minimum) and DC (up to 370V) inputs, making it suitable for various power environments.
The unit's ultra slim plastic housing with a stepped shape design enables space-saving installation on TS-35/7.5 or TS-35/15 DIN rails. Its isolation rating of Class II ensures protection against electrical hazards.
Operating within temperatures ranging from -30°C to 70°C, the HDR-30-24 maintains stable performance in harsh industrial, manufacturing, laboratory, and HVAC settings. Adjustable DC output voltage allows customization according to system requirements, and its efficiency rating of 89% enhances energy conservation for cost-effective operation.
Compact ultra slim design optimized for space saving within cabinets. Wide input voltage range supporting 85V AC to 370V DC ensures versatile application. Stepped shape plastic housing with isolation Class II for electrical safety.
Adjustable DC output voltage to meet varied industrial requirements. Operating temperature range from -30°C to 70°C suited for diverse environments. High efficiency of 89% reduces energy loss. Compatible with TS-35/7.5 or TS-35/15 DIN rails for easy installation.
This power supply is ideal for industrial machines, control panels, telecommunications, water treatment systems, and commercial electrical applications where reliable, efficient power conversion is critical.
Explore related MEAN WELL power supply products and components in the EnvMart catalog to complete your system integration needs.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 36W.
It supports a wide input voltage range from 85V AC to 370V DC.
The output current of this unit is 1.5A.
The dimensions are 90mm in height, 54.5mm in depth, and 35mm in width.
It operates within a temperature range of -30°C to 70°C.
It is compatible with TS-35/7.5 or TS-35/15 DIN rails for easy installation.
The efficiency rating of this power supply is 89%.
It is certified with UL, TUV EN 609501, and RoHS standards.
This model has one output.
The maximum output voltage is 24V DC.
It features a stepped shape plastic housing with isolation Class II for electrical safety.
The country of origin for this power supply is China.
