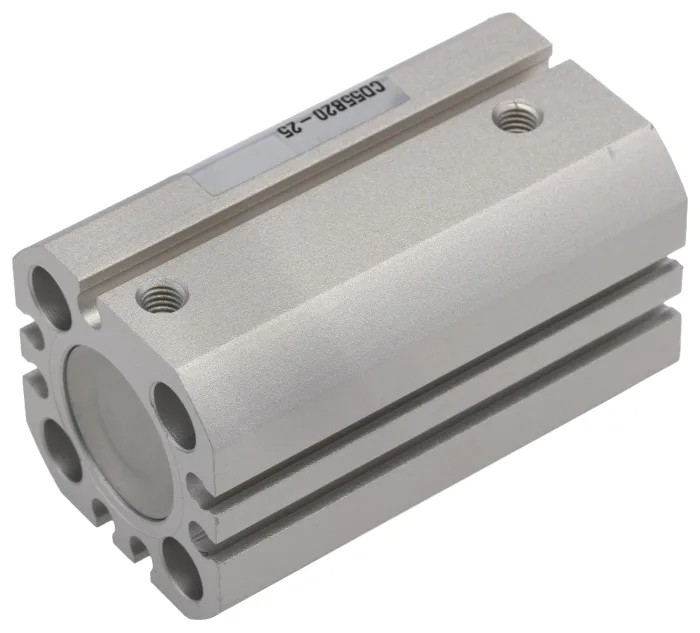

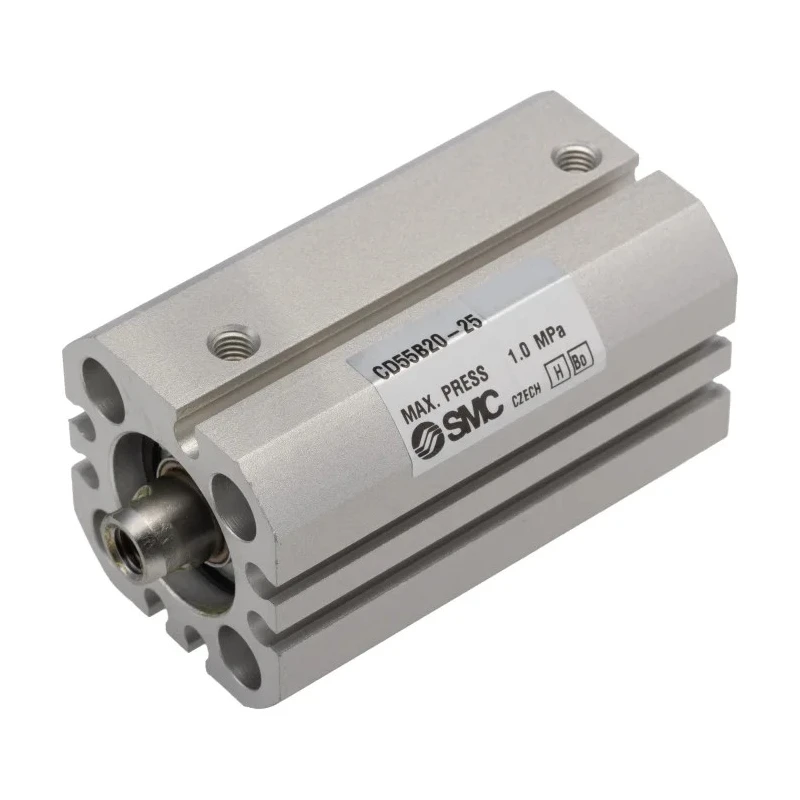

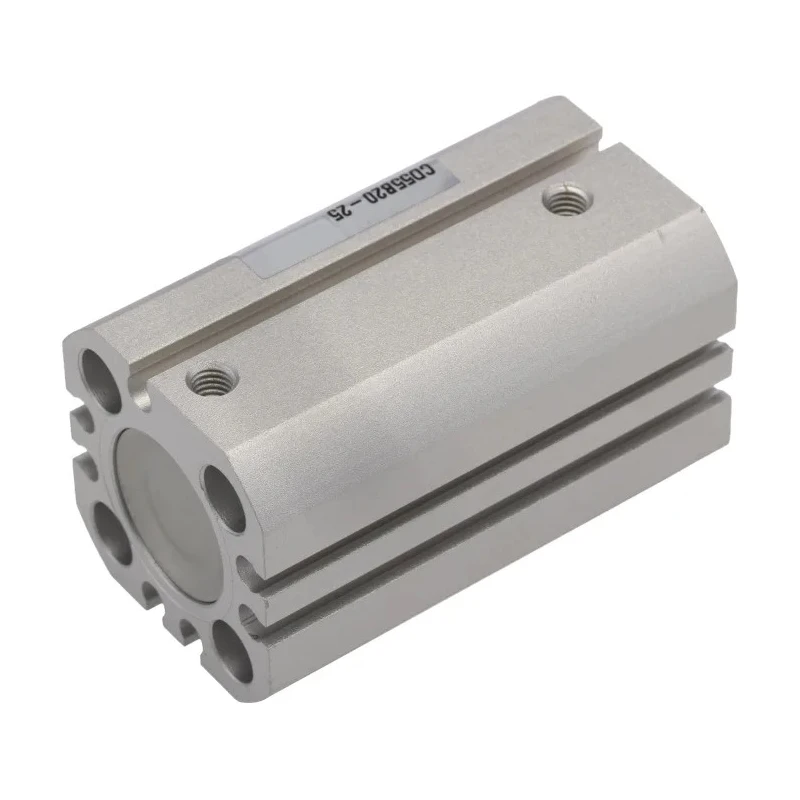

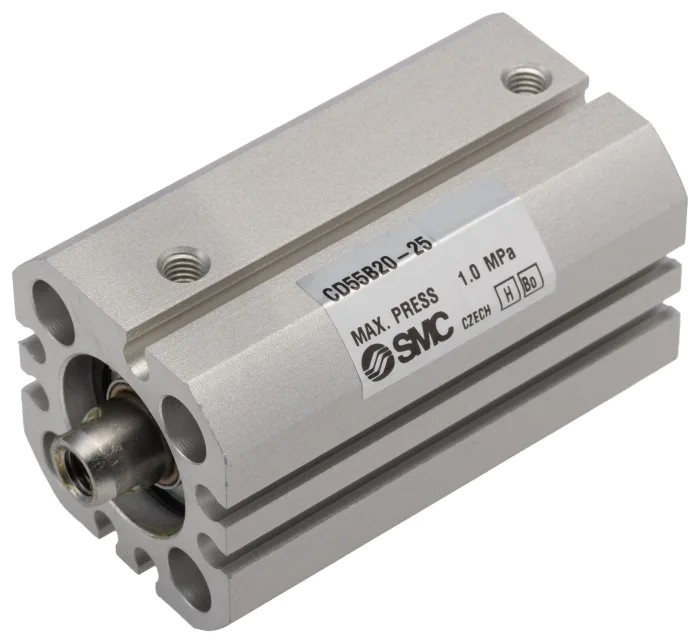

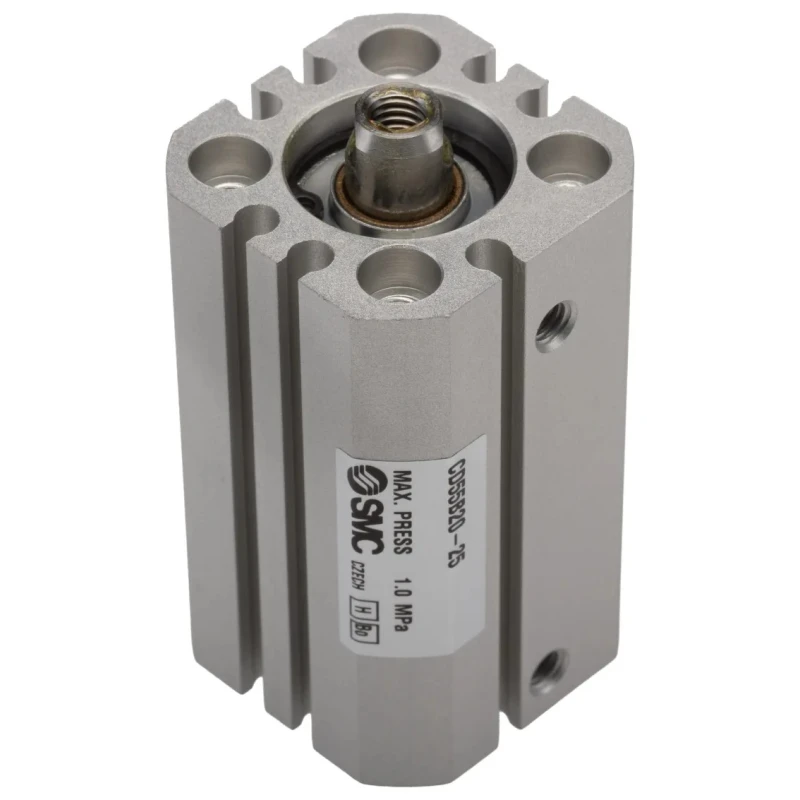

SMC Pneumatic Compact Cylinder 20mm Bore, 25mm Stroke, Aluminium Alloy Body, Double Acting, Through Hole Mount CD55B20-25

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder 20mm Bore, 25mm Stroke, Aluminium Alloy Body, Double Acting, Through Hole Mount CD55B20-25



Category Pneumatic Piston Rod Cylinders Brand SMC Condition New

Specifications

Country of Origin	Czech Republic
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1.5 Mpa
Height	36mm
Length	68mm
Model	CD55B20-25
Gross Weight	163g
Width	36mm
Mount Type	Through Hole
Series	CD55
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Stroke Length	25mm
Bore Diameter	20mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	ISO 21287
Cushioning Type	Rubber
Piston Rod Gender	Female
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	10 mm

Key Features

The compact ISO compliant cylinder features a hard anodized aluminium body.
It operates with a maximum pressure of 1.5 MPa and a piston speed up to 500 mm/s.
Designed with through hole mounting and rubber cushioning for enhanced durability.
Suitable for operating temperatures ranging from -10°C to 70°C.
The piston rod is metric threaded, female, single type with a 10 mm thread size.
This cylinder complies with ISO 21287 standards ensuring quality and reliability.
Lightweight at approximately 163 grams with compact dimensions of 68 mm length, 36 mm width, and 36 mm height.
Magnetic sensing is standard, facilitating easy position detection during automation.

Product Description

SMC CD55B20-25 Pneumatic Compact Cylinder is a premium ISO 21287 standard cylinder featuring a compact, hard anodized aluminium alloy body. This piston rod cylinder offers a 20mm bore diameter and 25mm stroke length combined with a robust double acting mechanism suitable for various industrial automation tasks.

It is designed for through hole mounting and incorporates rubber cushioning for smooth operation and reduced wear. The cylinder supports a maximum operating pressure of 1.5 MPa and a piston speed up to 500 mm/s, making it adaptable for fast and precise pneumatic operations.

The cylinder operates efficiently in temperature ranges between -10°C and 70°C. The piston rod is a single, female type with a metric thread size of 10 mm, allowing compatibility with diverse mechanical setups.

This pneumatic compact cylinder is lightweight, weighing approximately 163 grams, with compact dimensions of 68 mm length, 36 mm width, and 36 mm height, making it ideal for space-constrained installations.

Magnetic sensing is integrated as standard, enabling seamless automation control through position detection sensors. Manufactured in the Czech Republic, this cylinder ensures consistent quality and performance suitable for industrial, manufacturing, laboratory, HVAC, and fluid power applications.

The compact ISO compliant cylinder features a hard anodized aluminium body. Operates with maximum 1.5 MPa pressure and piston speed up to 500 mm/s. Through hole mount type with rubber cushioning for enhanced durability. Operating temperature range from -10°C to 70°C.

Single female piston rod with metric thread size 10 mm. Complies with ISO 21287 standards for quality assurance. Lightweight design at 163 grams with compact size dimensions. Standard magnetic sensing for automation integration.

Manufactured in Czech Republic ensuring quality and reliability.

Ideal for pneumatic automation, manufacturing, laboratory processes, and fluid power industrial applications. Explore a wide range of pneumatic cylinders and actuators on EnvMart for robust and reliable performance.
