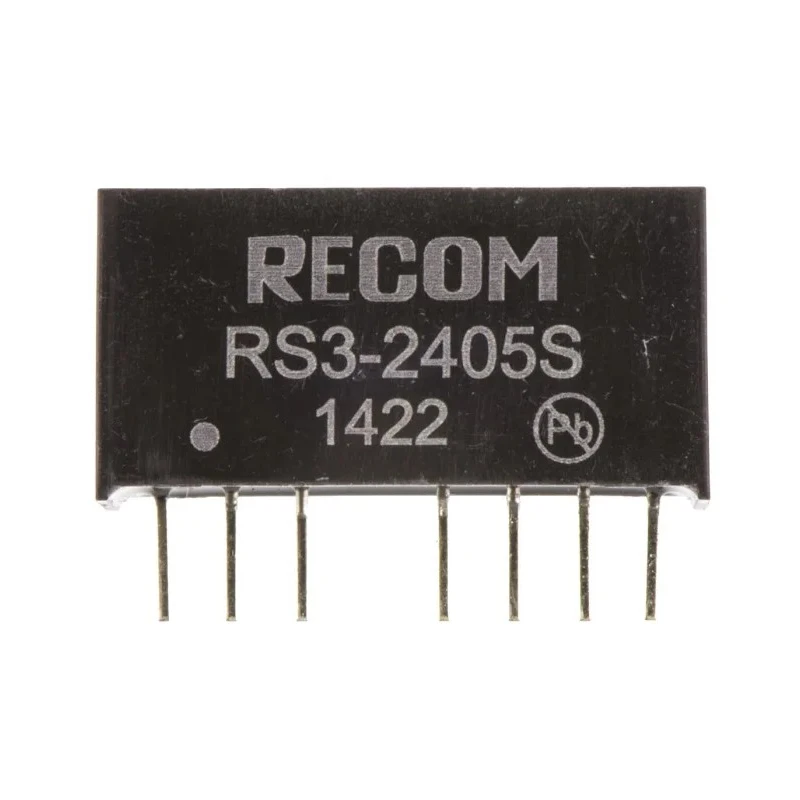

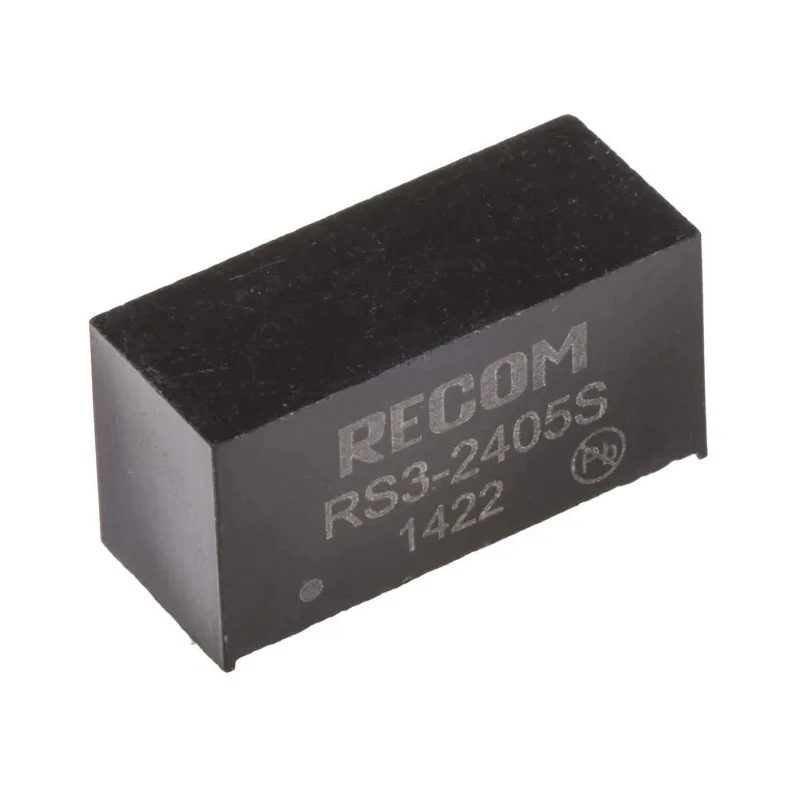

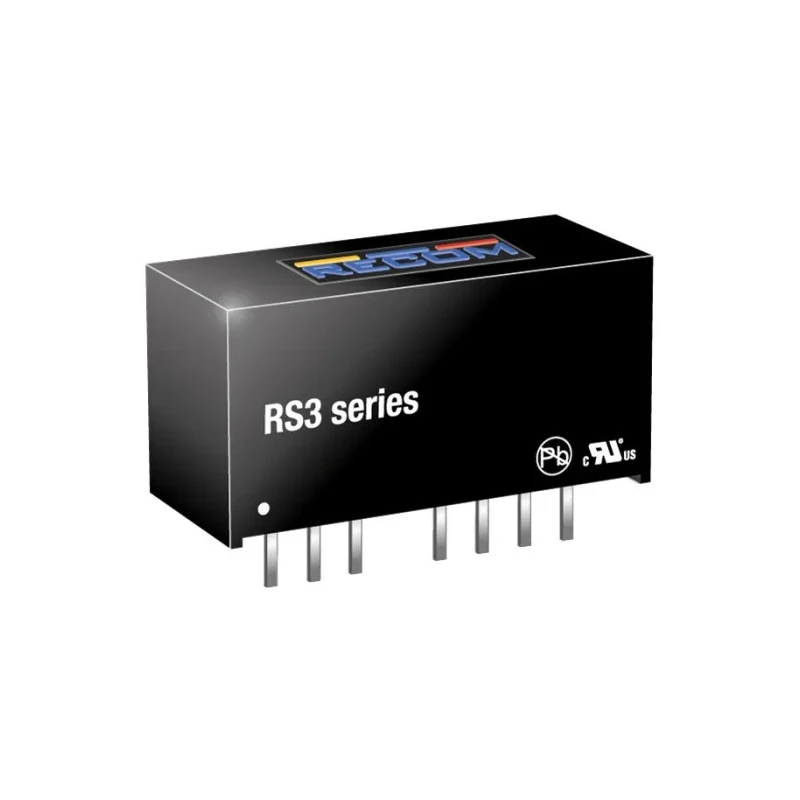

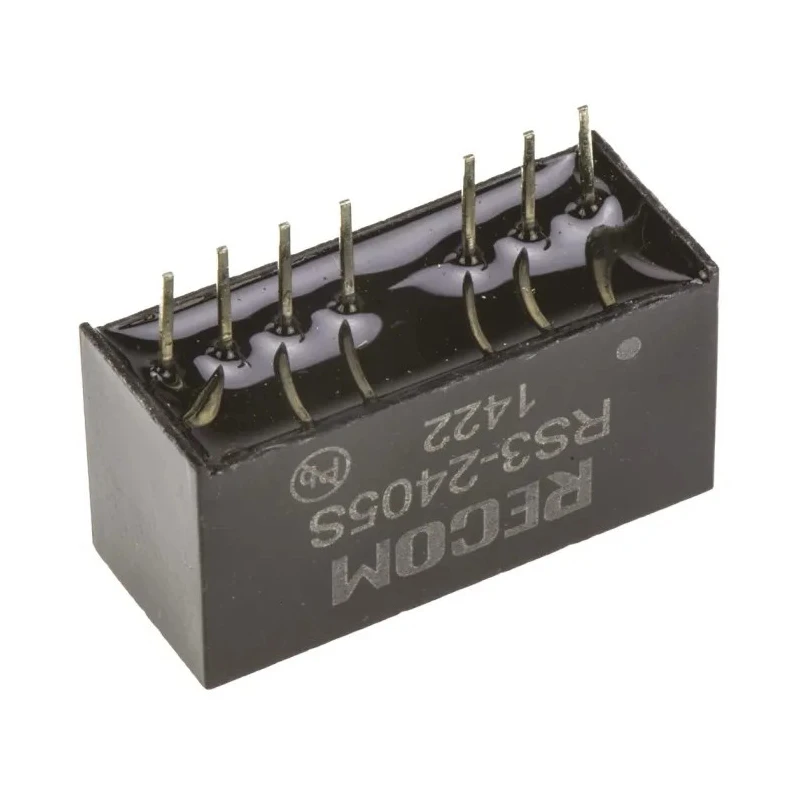

Recom DC/DC Converter 5V Output, 18V-36V Input, 3W Through Hole SIP Package RS3-2405S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RS3 DC/DC Converter, 5V dc/, 36V dc Input, 1 |
| Brand | Recom |
| Efficiency | 81% |
| Length | 21.8mm |
| Model | RS3-2405S |
| Depth | 11.1mm |
| Gross Weight | 4.7g |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | RS3 |
| Maximum Operating Temperature | +71°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 745000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | UR, RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 500V ac |
| Output Current 2 | 600mA |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- Efficiency reaches 81%, allowing low power loss and heat generation.
- Includes 1kV isolation voltage for enhanced safety and equipment protection.
- Designed with low ripple and noise at 50mV peak-to-peak to ensure clean power supply.
- Compact dimensions of 21.8mm length, 9.2mm width, and 11.1mm depth for space-saving PCB integration.
- Mean Time Between Failures (MTBF) is approximately 745,000 hours ensuring long reliability.
- Package type is Single Inline Package (SIP) with 8 pins for easy mounting.
- Widely applicable in automotive, military, lighting rigs, and other industrial electronics.
Product Description
Recom RS3-2405S DC/DC Converter is a robust power supply module delivering a regulated 5V DC output at up to 600mA current and 3W maximum power. It accepts DC input voltage ranging from 18V to 36V, accommodating typical automotive and industrial power sources.
The device comes in an 8-pin Single Inline Package (SIP) designed for through-hole mounting on printed circuit boards, ensuring mechanical durability and reliable electrical contact. With dimensions measuring just 21.8mm in length, 9.2mm in width, and 11.1mm in depth, this converter offers a compact solution for power regulation in densely packed electronics.
Operating temperature spans from -40°C to +71°C, making it suitable for harsh environmental conditions encountered in military hardware, automotive electronics, and professional lighting rigs. The converter achieves a high efficiency of 81%, reducing energy waste and system heat.
Electrical isolation between input and output is rated at 1kV, enhancing operational safety and protecting sensitive circuitry from voltage surges and noise interference. Ripple and noise voltage are tightly controlled at 50mV peak-to-peak, providing clean DC supply necessary for precision electronics.
This product is certified for compliance with relevant UR and RoHS standards, reflecting high manufacturing quality and environmental responsibility. The converter operates with an input ratio of 2:1 providing stable output voltage.
Efficiency reaches 81%, allowing low power loss and heat generation. Includes 1kV isolation voltage for enhanced safety and equipment protection. Designed with low ripple and noise at 50mV peak-to-peak to ensure clean power supply.
Compact dimensions of 21.8mm length, 9.2mm width, and 11.1mm depth for space-saving PCB integration. Mean Time Between Failures (MTBF) is approximately 745,000 hours ensuring long reliability. Package type is Single Inline Package (SIP) with 8 pins for easy mounting.
Widely applicable in automotive, military, lighting rigs, and other industrial electronics.
This DC/DC converter is an excellent choice for industrial, automotive, military, and lighting power regulation applications needing compact, efficient, and highly reliable power modules.
Explore more high-quality DC/DC Converters and power supply solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC.
This converter has a maximum output power of 3W.
The efficiency of this DC/DC converter reaches 81%.
The dimensions of this model are 21.8mm in length, 9.2mm in width, and 11.1mm in depth.
The isolation voltage for this unit is rated at 1kV.
It operates within a temperature range of -40°C to +71°C.
This DC/DC converter provides one output.
The ripple and noise voltage is specified at 50mV peak-to-peak.
This model comes in a Single Inline Package (SIP) with 8 pins for through-hole mounting.
The converter is certified for compliance with UR and RoHS standards.
The MTBF for this converter is approximately 745,000 hours.
This converter is widely applicable in automotive, military, lighting rigs, and other industrial electronics.
