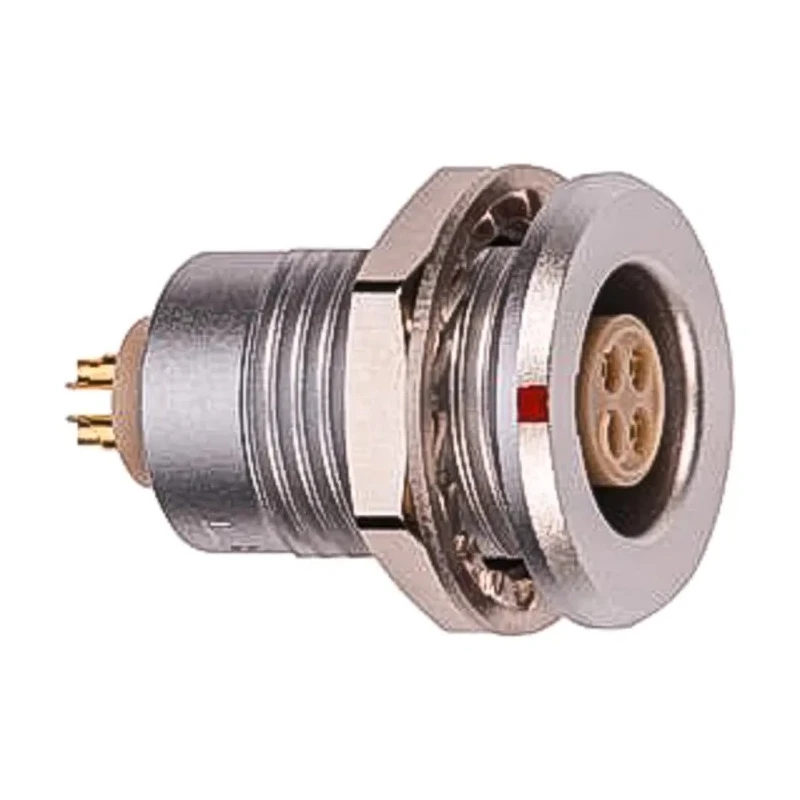

LEMO Circular Connector, 4 Contacts, Panel Mount, M12 Connector, Socket, Female, IP68, Brass Housing, Solder EGG.1T.304.CLL
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 30, 42V |
| Brand | LEMO |
| Orientation | Straight |
| Current | 10A |
| Model | EGG.1T.304.CLL |
| IP Rating | IP68 |
| Mount Type | Panel Mount |
| Housing Material | Brass |
| Contact Material | Bronze |
| Series | 1T |
| Termination Type | Solder |
| Maximum Operating Temperature | 200°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 4 |
| Contact Plating | Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | 16 mm |
| Mating Type | Push Pull |
| Connector Size | M12 |
| Plug/Socket | Socket |
Key Features
- Constructed with brass housing and bronze contact material for durability.
- Designed with a IP68 rating ensuring protection against dust and water ingress.
- Features solder termination type for reliable electrical connections.
- Supports operating voltage of 30 and 42 volts and current rating of 10 amperes.
- Operating temperature range from -55°C to 200°C suitable for harsh environments.
- Incorporates push-pull self-latching system with multiple mechanical keys to prevent cross-mating.
- Provides 360° full EMC shielding for signal integrity in industrial applications.
- Compatible with cables ranging from 1.0 mm to 10.5 mm diameter.
Product Description
LEMO EGG.1T.304.CLL is a high-quality circular connector from the 1T Series designed for robust industrial and outdoor applications. This panel mount connector features 4 contacts in a female socket configuration with M12 connector size, providing reliable and secure electrical connections with an IP68 rating for dust and waterproofing.
With a brass housing and bronze contact material plated in nickel, this connector withstands demanding conditions including temperature ranges from -55°C to 200°C. Its solder termination ensures long-lasting electrical integrity. The push-pull self-latching mechanism coupled with a multiple key mechanical design prevents accidental disconnections and cross-mating, essential in critical environments such as aircraft communications, land vehicles, and defense equipment.
The connector supports operating voltages of 30 and 42 V and current up to 10 A, making it suitable for various electronic and power connector requirements. Additionally, the 360° full EMC shielding enhances resistance to electromagnetic interference, maintaining signal quality in complex industrial setups.
Its compact shell size of 16 mm and compatibility with cable diameters from 1.0 mm to 10.5 mm provide versatility in installation. The LEMO 1T Series connectors are preferred in automated test equipment, electronic testing, and other applications where rugged, waterproof connectivity is paramount.
Brass housing and bronze contacts provide durability and corrosion resistance. Solder termination type ensures reliable electrical connection. Mechanical keying and push-pull system prevent incorrect mating and accidental disconnection.
Rated for IP68 water and dust ingress protection per IEC 60529 standard. Operating temperature range from -55°C to 200°C enables use in extreme environments. Supports current up to 10 A and voltages of 30, 42 V for diverse applications.
Suitable for cables with diameters from 1.0 to 10.5 mm. Provides 360° full EMC shielding against electromagnetic interference.
This LEMO circular connector is an ideal solution for industrial, laboratory, defense, and transportation sectors requiring reliable, waterproof electrical connections. Explore more LEMO Industrial Circular Connectors and enhance your projects’ connectivity with confidence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 200°C.
This model has a current rating of 10 amperes.
It features a solder termination type for reliable electrical connections.
The connector has an IP68 rating, ensuring protection against dust and water ingress.
The shell size of this connector is 16 mm.
It is compatible with cables ranging from 1.0 mm to 10.5 mm in diameter.
The push-pull self-latching mechanism prevents accidental disconnections and cross-mating, ensuring secure connections.
The housing is made of brass, and the contacts are bronze plated in nickel.
It supports operating voltages of 30 and 42 volts.
The connector is designed with a straight orientation.
This connector is suitable for industrial, laboratory, defense, and transportation sectors requiring reliable, waterproof electrical connections.
This model features 4 contacts in a female socket configuration.
