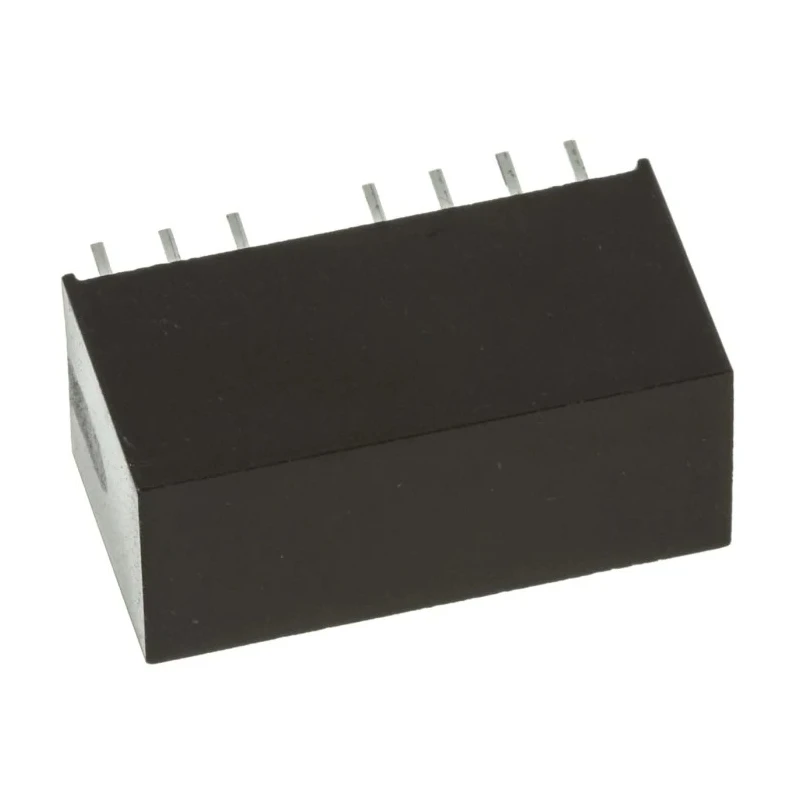

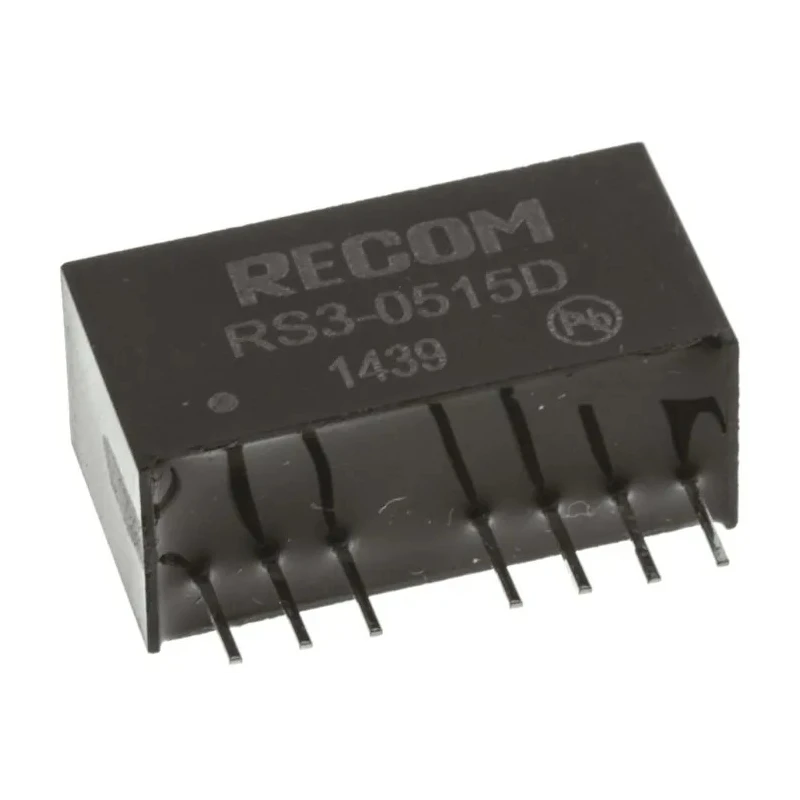

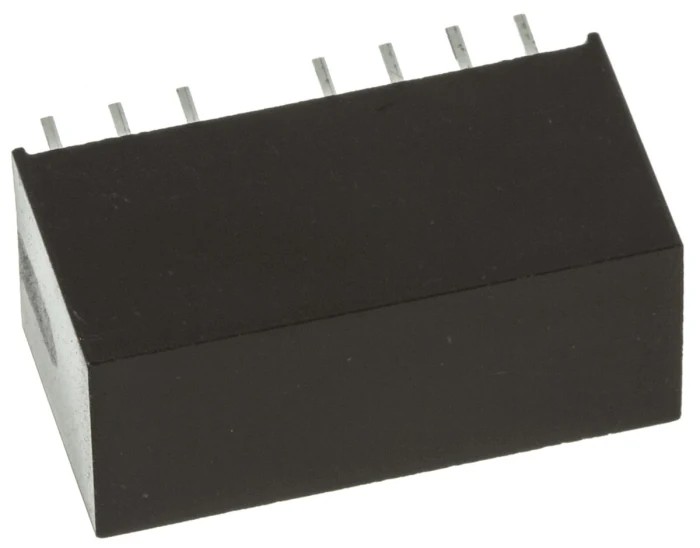

Recom DC/DC Converter 15V, -15V Output, 9V DC Input, 3W Power, Through Hole Mount, +71°C Max Temp RS3-0515D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RS3 DC/DC Converter, 15V, -15 V/, 9V dc Inpu |
| Brand | Recom |
| Efficiency | 83% |
| Length | 21.8mm |
| Model | RS3-0515D |
| Depth | 11.1mm |
| Gross Weight | 4.7g |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | RS3 |
| Maximum Operating Temperature | +71°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 745000h |
| Number of outputs | 2 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 9V dc |
| Standards/Approvals | RoHS, UR |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 15, -15V |
| Output Voltage Adjustment Range | 4.5/9 V |
| Isolation Voltage | 500V ac |
| Output Current 2 | 100mA |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Dual output voltage supports simultaneous powering of two devices.
- Through hole mount for secure and reliable circuit board installation.
- Wide operating temperature range from -40°C to +71°C suitable for harsh environments.
- High isolation voltage of 500V AC ensures protection from voltage surges.
- Low ripple and noise at 50mV Pk-Pk maintains clean output signals.
- High efficiency of 83% reduces energy losses during conversion.
- Mean time between failures (MTBF) of 745,000 hours guarantees long operational life.
- Compact SIP (Single Inline Package) with 8 pins for easy integration in circuits.
Product Description
Recom RS3-0515D DC/DC Converter offers precise dual outputs of 15V and -15V from a variable input voltage of 4.5V to 9V DC, delivering up to 3 watts of power. This device employs a through hole mount design with a compact SIP package consisting of 8 pins, making it suitable for dense board layouts where durable connections are required.
With an efficiency rating of 83%, it effectively converts input power with minimal losses. The converter supports operating temperatures ranging from -40°C to +71°C, making it highly reliable for use in challenging industrial and laboratory conditions such as telecommunications, renewable energy systems, and mobile devices.
Its 2:1 input voltage ratio and ±0.5% line and load regulation ensure stable voltage supply despite input fluctuations. The built-in 1kV DC isolation protects connected devices from potential surges and voltage noise, making it a safe choice for sensitive electronic equipment.
The device also features continuous short-circuit protection and low ripple/noise levels (50mV Pk-Pk), enhancing system durability and signal purity. It carries RoHS and UR compliance standards, reinforcing its suitability for environmentally conscious and certified product designs.
With a mean time between failures of 745,000 hours, the RS3-0515D provides reliable, long-term performance in diverse electronic applications. Its small dimensions of 21.8mm length, 11.1mm depth, and 9.2mm width facilitate space-saving integration.
Dual outputs supply separate circuits simultaneously. Stable voltage regulation ensures device reliability. High isolation voltage for enhanced safety. Designed for through hole mounting ease. Compact SIP package optimizes board space.
Wide temperature range suits industrial environments. Continuous short-circuit protection prevents damage. Long MTBF indicates exceptional durability.
This converter is an excellent choice for industrial, laboratory, telecommunications, renewable energy, and mobile device applications seeking efficient DC voltage conversion. Explore our DC/DC Converter range for diverse power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 15V and -15V.
The input voltage range for the RS3-0515D is from 4.5V to 9V DC.
The maximum output power of this unit is 3 watts.
It has an efficiency rating of 83%, which helps reduce energy losses during conversion.
The dimensions of the RS3-0515D are 21.8mm in length, 11.1mm in depth, and 9.2mm in width.
The maximum operating temperature for the RS3-0515D is +71°C.
This converter is designed for through hole mounting, which allows for secure and reliable installation on circuit boards.
The ripple and noise level for the RS3-0515D is 50mV Pk-Pk, ensuring clean output signals.
This model features an isolation voltage of 500V AC, providing protection from voltage surges.
The mean time between failures (MTBF) for the RS3-0515D is 745,000 hours, indicating long operational life.
It carries RoHS and UR compliance standards, making it suitable for environmentally conscious designs.
This converter has two outputs, allowing it to power two devices simultaneously.
