Rohde & Schwarz 200 MHz Bench Oscilloscope 2-Channel, 10.1 inch High Resolution Capacitive Touchscreen, 10-bit ADC RTB2000

Rohde & Schwarz RTB2K-202 bench oscilloscope is a versatile test instrument designed for high precision electronic measurements. Featuring a 200 MHz bandwidth and dual channels, it provides excellent signal analysis capabilities suitable for university laboratories, embedded system development, production, and service departments.

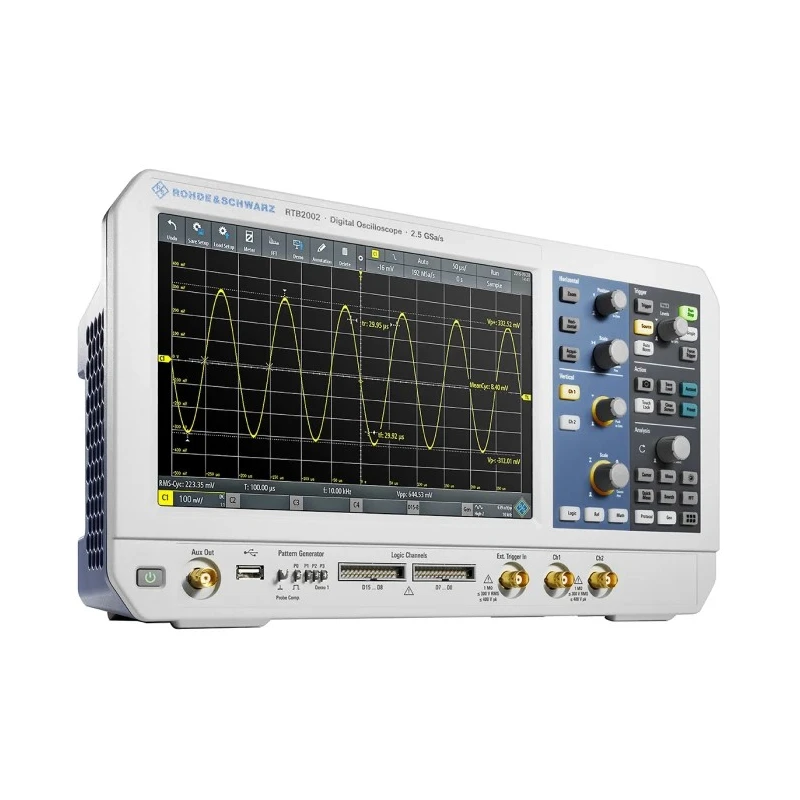

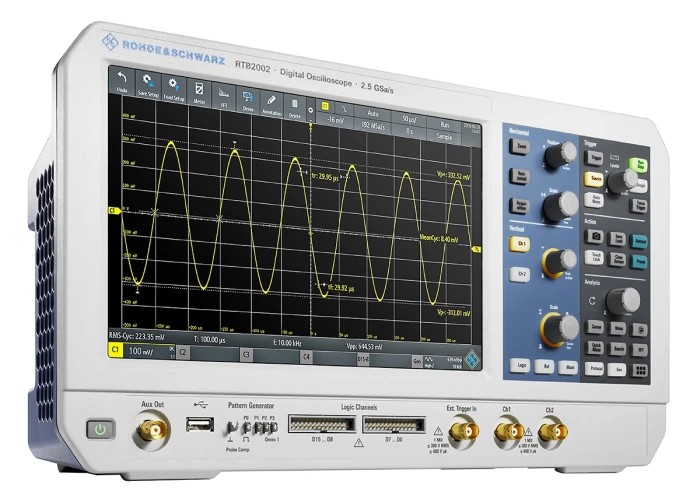

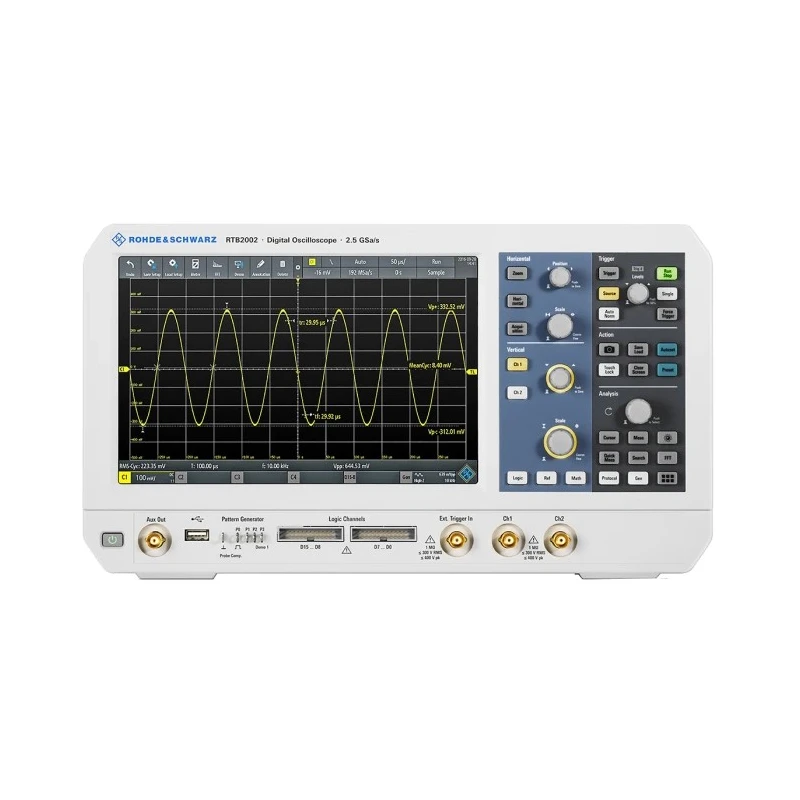

The device includes a large 10.1 inch high resolution capacitive touch screen (1280 x 800 pixels) for intuitive operation with gesture support, quick menu navigation, zooming, waveform movement, annotation, and screenshots.

Its 10-bit ADC with 10 Msample standard memory and an option for 20 Msample interleaved memory enhances measurement accuracy with low noise and wide dynamic range. The segmented memory of 160 Msample allows long data capture with history functionality.

Interface support covers CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB protocols facilitating complex embedded system debugging. The oscilloscope supports a minimum time base of 1 ns/div and a rise time of 5 ns for fast transient signal analysis.

Additional integrated tools include a logic analyser, protocol analyser, waveform and pattern generator, and digital voltmeter. Specialized operation modes for frequency analysis, mask testing, and extended data acquisition improve debugging efficiency.

10.1 inch capacitive touch display with gesture support and high pixel resolution. 10-bit ADC with large memory depth and segmented memory with history. Multiple serial bus interfaces for embedded debugging. Fast rise time and broad vertical sensitivity range.

Complete toolset including logic and protocol analysers and signal generators. Robust for educational and industrial applications.

Manufactured in Romania, this instrument ensures reliability and precision in critical measurement tasks. It fits well in industrial, laboratory, educational, and production testing environments. Rohde & Schwarz offers software updates to extend capabilities and customization.
