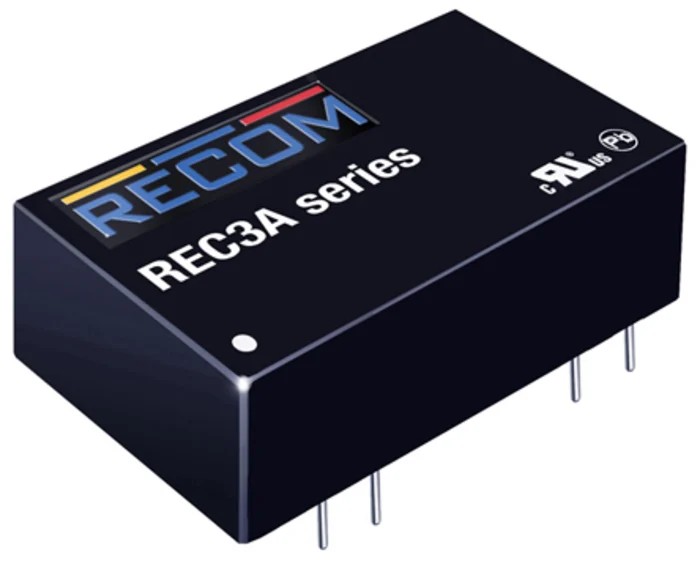

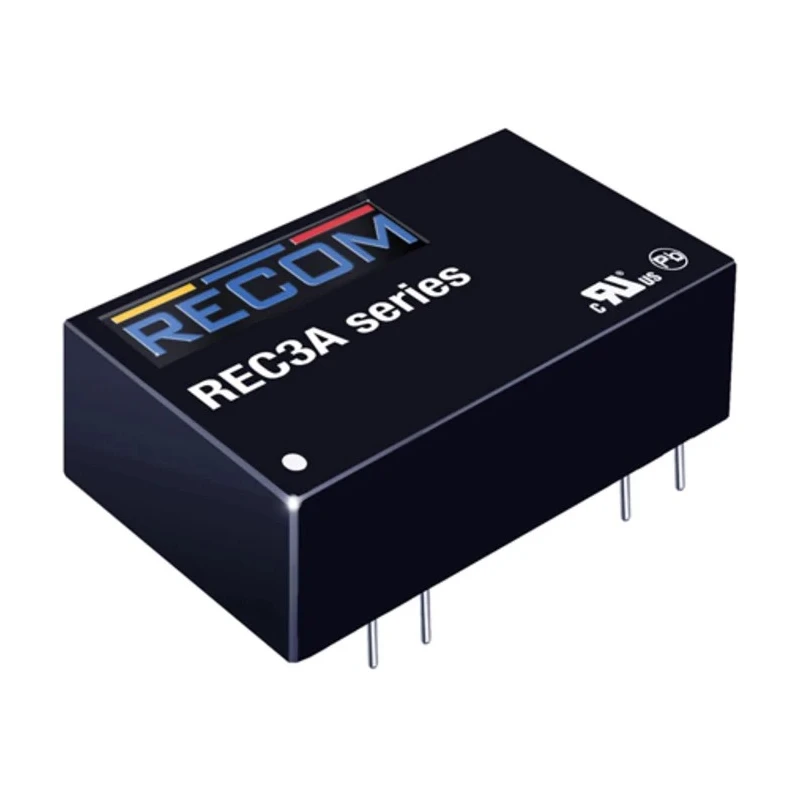

Recom DC/DC Converter 5V DC 600mA Input 18V-36V 3W Through Hole DIP-24 Package REC3A
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom REC3A DC/DC Converter, 5V dc/ 600 mA, 36V dc |
| Brand | Recom |
| Efficiency | 81% |
| Length | 31.8mm |
| Model | REC3A |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | REC3A |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP-24 |
| Minimum Operating Temperature | -40°C |
| MTBF | 593000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 2kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Designed for industrial applications with wide operating temperature from -40°C to +85°C.
- High efficiency up to 81% with EMI Class A built-in filter, no external components needed.
- Through Hole mount type with DIP-24 package for secure PCB installation.
- Provides isolation voltage up to 2kV DC for enhanced safety and noise reduction.
- Minimum load is not required, suitable for high capacitive loading.
- Mean Time Between Failures (MTBF) is 593,000 hours ensuring reliable operation.
Product Description
Recom REC3A DC/DC Converter model REC3A-2405SW/H2 is a high quality isolated converter delivering 5V output voltage at 600mA current with a maximum output power of 3 watts. It accepts a wide input voltage range from 18V up to 36V DC, making it suitable for various industrial and automation applications. The device operates reliably over a temperature range of -40°C to 85°C without derating, ensuring robust performance in harsh environments.
This converter series includes a built-in Class A EMC filter, providing strong electromagnetic interference suppression without the need for additional external components. The continuous short circuit protection enhances safety and system stability. Its 2:1 input voltage ratio efficiently adapts to varying supply voltages commonly found in industrial power systems.
The package type is a Through Hole DIP-24 configuration which is ideal for secure PCB mounting, supporting high capacitive loads often present in complex industrial circuits. The unit provides an isolation voltage rating of 2kV DC, making it effective for noise reduction and preventing ground loop effects in sensitive electronic systems.
The compact physical dimensions of 31.8mm length by 20.3mm width by 10.2mm depth help in achieving space-saving designs on circuit boards.
This DC/DC converter is used extensively in industrial automation, multi-channel test and measurement, and other electronic control applications. It is a reliable solution for powering isolated circuits requiring steady 5V output at moderate current loads.
Wide input voltage 18V to 36V DC with 2:1 ratio. Output voltage fixed at 5V DC with 600mA maximum output current. High efficiency of 81% minimizes power loss and heat. Continuous short circuit protection for enhanced reliability.
EMI Class A compliant filter integrated internally. Operating temperature range from -40°C to +85°C. Through Hole DIP-24 package for secure mounting. Isolation voltage of 2kV DC for noise immunity. Compact size 31.8mm x 20.3mm x 10.2mm.
MTBF 593,000 hours for dependable operation.
Explore Recom DC/DC Converters and other related industrial electrical components on EnvMart for high-performance power supply solutions designed for demanding industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC, allowing it to accommodate varying supply voltages commonly found in industrial applications.
This unit delivers a maximum output power of 3 watts, providing a steady 5V output at a current of 600mA.
The efficiency of this model is rated at 81%, which helps minimize power loss and heat generation during operation.
The isolation voltage for this DC/DC converter is rated at 2kV DC, enhancing safety and reducing noise in sensitive electronic systems.
The dimensions of this converter are 31.8mm in length, 20.3mm in width, and 10.2mm in depth, making it compact for PCB mounting.
It operates reliably within a temperature range of -40°C to 85°C, suitable for harsh industrial environments.
No, this model does not require a minimum load, making it suitable for high capacitive loading applications.
This unit uses a Through Hole DIP-24 mounting type, which provides secure installation on printed circuit boards.
This DC/DC converter is extensively used in industrial automation, multi-channel test and measurement, and other electronic control applications.
The MTBF for this model is 593,000 hours, indicating a reliable operation over time.
It includes a built-in Class A EMC filter, which provides effective electromagnetic interference suppression without the need for external components.
The output voltage of this converter is fixed at 5V DC, with a maximum output current of 600mA.
