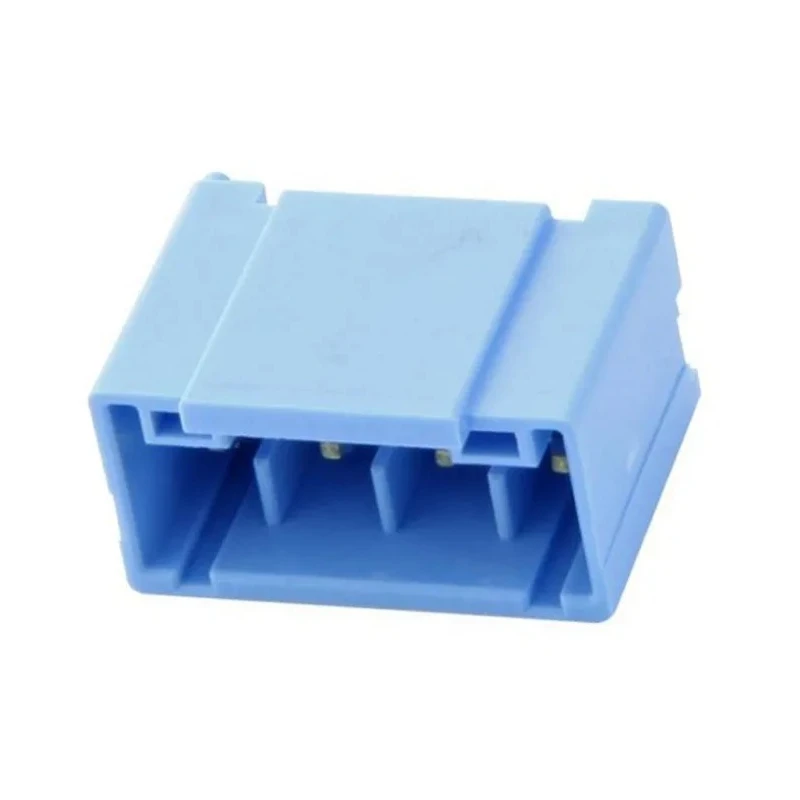

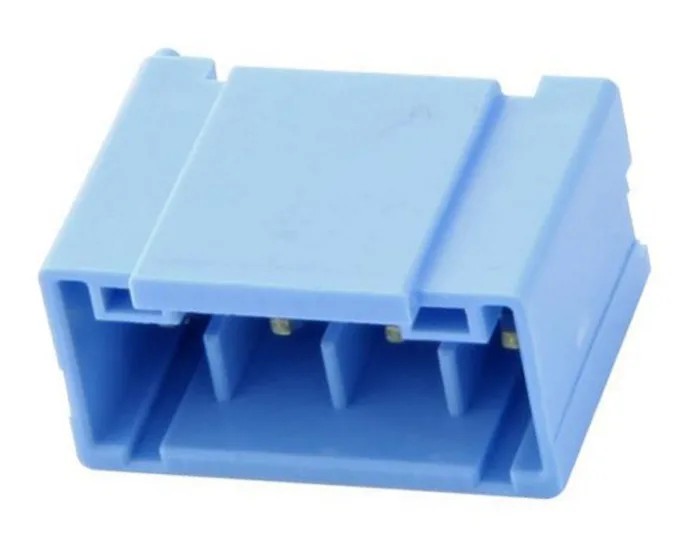

JST PSI Series Straight Through Hole PCB Header 8 Contact 4 mm Pitch 1 Row Shrouded B08B-PSILE-1(LF)(SN)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 300V |
| Brand | JST |
| Orientation | Straight |
| Current | 12A |
| Model | B08B-PSILE-1(LF)(SN) |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | PSI |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 4mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a locking mechanism to ensure a secure mating connection.
- Single row configuration with eight male contacts.
- Shrouded housing enhances connection safety and durability.
- Constructed from fibreglass reinforced polybutylene terephthalate for robust performance.
- Designed for wire-to-board applications with through-hole mount type.
- Tin-plated copper alloy contacts provide reliable electrical conductivity.
- Operates within a temperature range of -25°C to 85°C.
- Rated for a current of 12A and a voltage of 300V.
Product Description
The JST B08B-PSILE-1(LF)(SN) is a high-quality PSI Series straight through hole PCB header designed for reliable wire-to-board connections in various electronic applications. It features 8 male contacts spaced at a 4 mm pitch arranged in a single row to allow precise and secure circuit interfacing.
This header utilizes a shrouded housing made from fibreglass reinforced polybutylene terephthalate, providing excellent durability and protection against accidental contact. The fully shrouded design, coupled with a locking mechanism, prevents misalignment and ensures a stable mate between connectors.
The tin-plated copper alloy contacts deliver efficient electrical conductivity and corrosion resistance, supporting a maximum current of 12A and voltage rating of 300V. Operating temperature ranges from -25°C to 85°C, making it suitable for a wide variety of environmental conditions.
Additional features include PCB pegs integrated into the housing, which assist in positioning and stabilizing the header on the printed circuit board. The connector is designed for through hole mounting, providing secure mechanical bonding and enhanced durability in demanding industrial, laboratory, and commercial electronic applications.
This product is manufactured in Malaysia following strict quality controls and is ideal for use in electrical equipment, control systems, and electronic interface designs where dependable connection and long service life are critical.
Locking mechanism for secure mating connection. Keying and colour coding to prevent mismating. Fully shrouded for operator safety and contact protection. Finger friendly design for easy handling and installation. Durable fibreglass reinforced polybutylene terephthalate housing.
Through hole mounting for strong PCB attachment. Tin plated copper alloy contacts for enhanced conductivity. Wide operating temperature from -25°C to 85°C. Rated for 12A current and 300V voltage. Includes PCB pegs for accurate positioning and stability.
Explore the comprehensive range of PCB Headers and connectors available at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 12A and a voltage of 300V.
It features a 4 mm pitch and has 8 male contacts arranged in a single row.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, providing durability and protection.
This connector is designed for through hole mounting, ensuring secure mechanical bonding to the PCB.
It operates within a temperature range of -25°C to 85°C, making it suitable for various environmental conditions.
Yes, it features a locking mechanism that ensures a secure mating connection and prevents misalignment.
It uses a solder termination type for reliable electrical connections.
This PCB header is manufactured in Malaysia, adhering to strict quality controls.
The contacts are made of tin-plated copper alloy, which provides reliable electrical conductivity.
It is designed for wire-to-board applications in various electronic equipment, control systems, and interface designs.
The housing is fully shrouded, enhancing connection safety and protecting against accidental contact.
It includes PCB pegs integrated into the housing, which help with accurate positioning and stability during installation.
