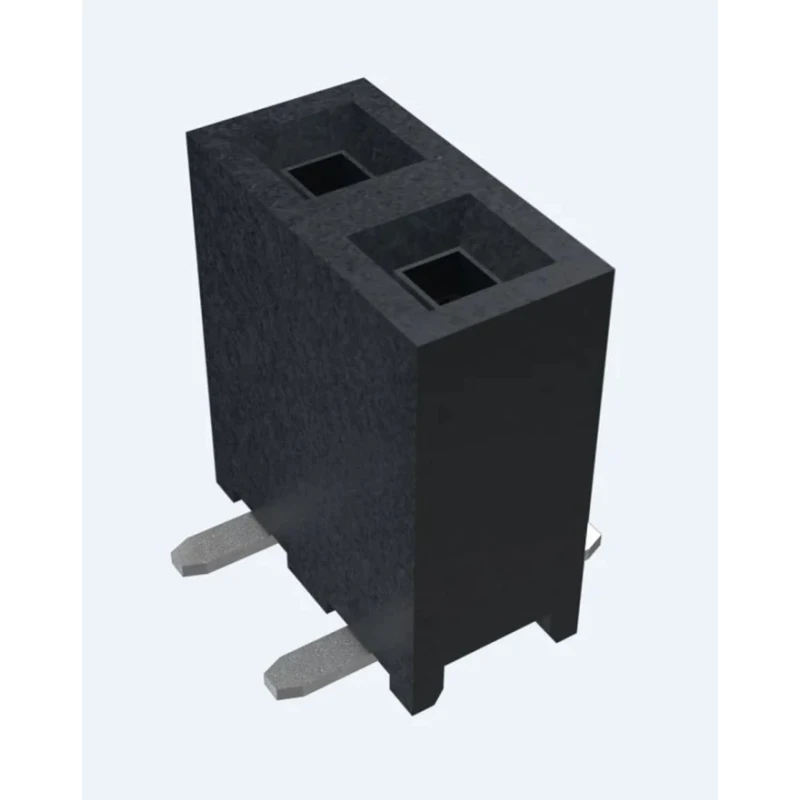

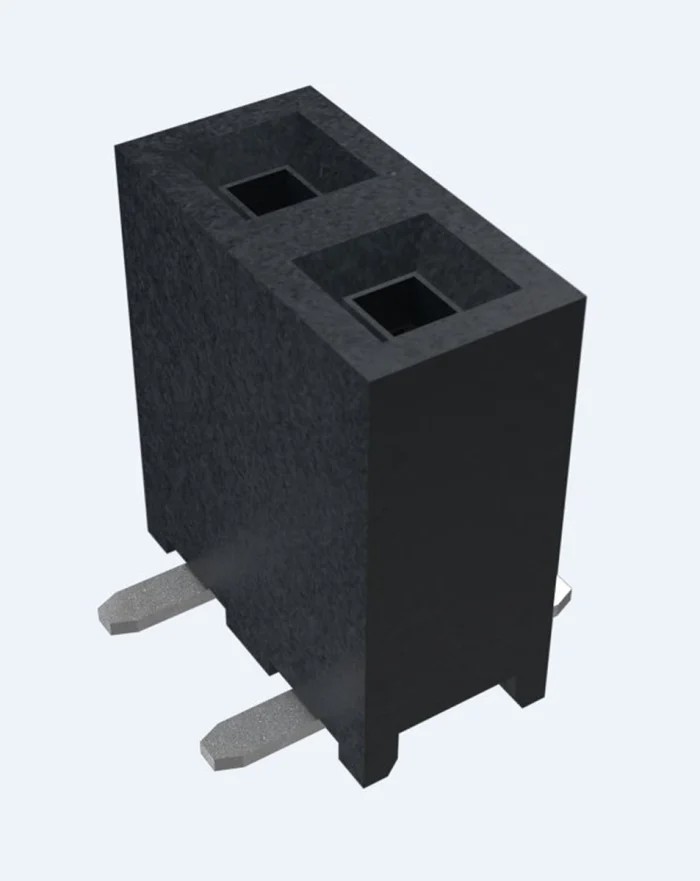

Amphenol Communications Solutions Minitek Series 7-Contact Straight Surface PCB Socket 1 Row 2 mm Pitch 10131935-107ULF

Amphenol Communications Solutions 10131935-107ULF is part of the Minitek Series PCB sockets featuring a 2.00 mm pitch and 7 female contacts in a single row configuration. This straight surface mount receptacle is engineered for board-to-board connection systems, delivering reliable solder termination and robust electrical performance.

The glass filled thermoplastic housing is UL94V-0 rated, enabling it to withstand high-temperature reflow soldering processes. The gold-plated copper contacts use a dual beam design ensuring stable and consistent current flow up to 12A at 200V. Operating temperature ranges from -55°C to +125°C make it suitable for rigorous industrial and automotive environments.

The compact 2.00 mm pitch delivers a 38% board space saving compared to traditional 2.54 mm connectors, allowing for dense PCB designs. The double solder tail on the single row vertical connectors facilitates automatic placement with no orientation constraints, enhancing manufacturing efficiency.

Applications include automotive electronics, I/O modules, server drives, and programmable logic controllers (PLCs), which require reliable PCB connectivity with high durability under thermal and electrical stress conditions.

This Minitek Series socket integrates seamlessly with compatible Amphenol Minitek headers and connectors, forming a modular system designed for flexible and robust electrical interconnections in industrial and commercial electronic assemblies.

Features 7 female contacts arranged in a single row with 2 mm pitch. Supports up to 12A current and operates at 200V voltage. Constructed with glass filled housing and gold-plated copper contacts for high reliability. Designed for surface mount with a straight orientation suitable for board-to-board connections.

Operates effectively in temperature ranges from -55°C to 125°C. Employs a dual beam contact design for enhanced electrical performance. Modular Minitek series offers space-saving connection with 38% less board footprint compared to 2.54 mm pitch connectors.

Housing material rated UL94V-0 thermoplastic for high temperature reflow soldering process compatibility. Ideal for automotive applications, I/O modules, server drives, and programmable logic controllers (PLCs). Explore the Amphenol Communications Solutions range at EnvMart for high-quality PCB Sockets designed to meet stringent industrial requirements.
