KEMET Chassis Mount 3-Phase EMC Filter 30A 530V AC 50Hz/60Hz Terminal Block FLLD3

Free Delivery in India | Lowest Global Shipping Charges

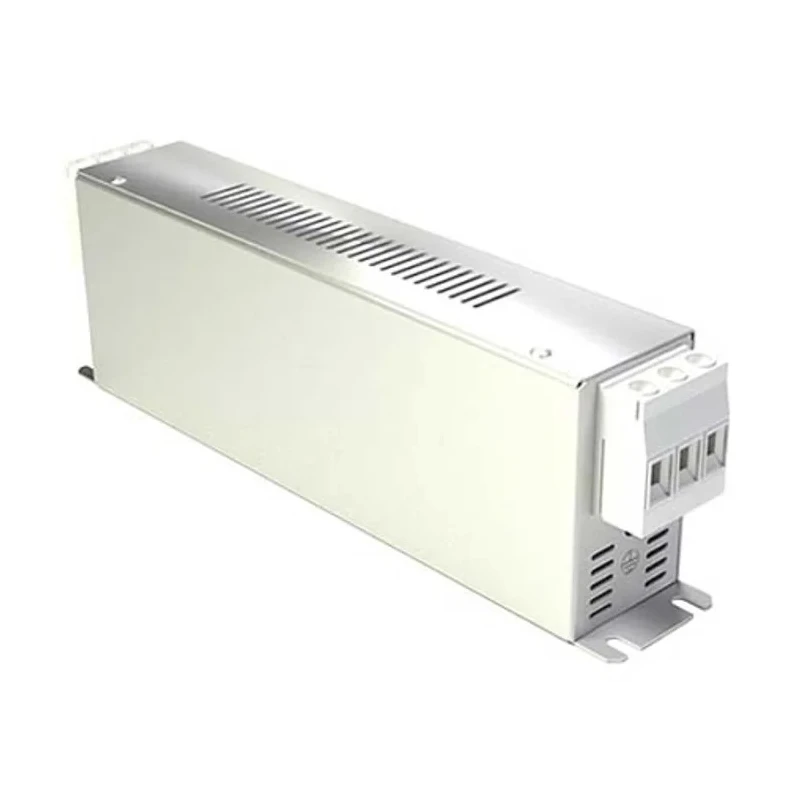

KEMET Chassis Mount 3-Phase EMC Filter 30A 530V AC 50Hz/60Hz Terminal Block FLLD3

Name: KEMET Chassis Mount 3-Phase EMC Filter 30A 530V AC 50Hz/60Hz Terminal Block FLLD3
Brand: KEMET
SKU: 145662
Price: 255.33 USD
Availability: InStock



Category EMC Filter Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	85mm
Length	270mm
Model	FLLD3
Depth	50mm
Packaging	Tape & Reel
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	FLLD3
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-25°C
Maximum Current	30A
Number of Phases	3
Leakage Current	4.7mA
Maximum Voltage	530V ac
Standards/Approvals	UL, ENEC, cUL, CQC
Termination Style	Terminal Block
Power Loss	12W

Key Features

Operates efficiently at 50Hz and 60Hz frequencies for versatile power environments.
Features a terminal block termination style for easy installation and maintenance.
Compact chassis mount design measuring 270mm length, 85mm height, and 50mm depth.
High operating temperature range from -25°C to 100°C suitable for harsh industrial conditions.
Low leakage current of 4.7mA ensuring compliance and safety in sensitive equipment.
Power loss minimized to 12W for energy-efficient operation.
Packaged with tape and reel for secure handling and transportation.
Complies with UL, ENEC, cUL, and CQC standards for quality and reliability.

Product Description

KEMET FLLD3 model is a chassis mount EMC filter engineered for three-phase power line filtering applications. It supports a maximum current of 30A and maximum voltage rating of 530V AC, operating effectively at both 50Hz and 60Hz frequencies.

This EMC filter features a terminal block termination style that simplifies wiring and installation within industrial equipment and power systems. Its compact dimensions of 270mm length, 85mm height, and 50mm depth enable integration in varied chassis spaces.

Designed to perform reliably across a wide temperature range from -25°C to 100°C, the filter delivers a low leakage current of 4.7mA to enhance safety and conformity with electrical standards.

With power loss constrained to 12W, the product ensures energy-efficient operation minimizing heat generation during use. The tape and reel packaging format facilitates automated assembly processes or secure manual handling.

Supports up to 30A current and 530V AC voltage for industrial power filtering. Terminal block termination allows for quick and secure electrical connections. Robust chassis mount construction suitable for demanding operating environments.

Wide operating temperature range from -25°C to 100°C. Low leakage current of 4.7mA enhances safety compliance. Minimal power loss of 12W improves efficiency and reduces heat. Compliant with UL, ENEC, cUL, and CQC certifications.

Packaged in tape and reel for efficient transport and assembly.

This filter is ideal for use in switch mode power supplies, servo drives, robotics, battery chargers, inverters, converters, and various process automation and industrial applications where EMC mitigation is critical.

Part of the Power Line Filters category, this KEMET chassis mount EMC Filter combines compact design with reliable performance to meet industrial filtration requirements. Browse the Power Line Filters category on EnvMart for related industrial EMI suppression solutions from trusted manufacturers.
