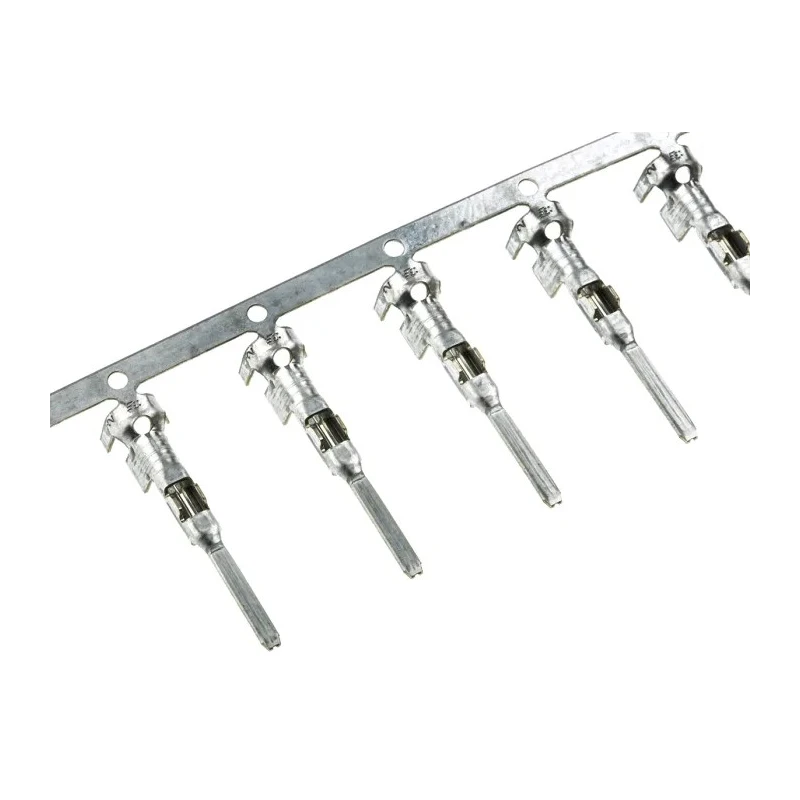

TE Connectivity MINI-MIC Series Male Crimp Terminal 14A Current, 17-15 AWG Wire Size 22.7mm Length 282109-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 14A |
| Length | 22.7mm |
| Model | 282109-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | MINI-MIC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| For Use With | AMP SUPERSEAL 1.5 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 17AWG |
| Maximum Wire Size AWG | 15AWG |
| Maximum Contact Resistance | 30mΩ |
Key Features
- Constructed from tin-plated brass for reliable conductivity.
- Designed for use with AMP SUPERSEAL 1.5 Connector Housing.
- Suitable for automotive and industrial applications due to vibration and temperature resistance.
- Supports wire sizes from 17 AWG minimum to 15 AWG maximum.
- Operating temperature range from -40°C to 125°C.
- Provides a maximum contact resistance of 30 milliohms.
- Termination via crimping method for secure connections.
- Compatible with TE Connectivity SUPERSEAL series for waterproof connections.
Product Description
TE Connectivity 282109-1 MINI-MIC Series Male Crimp Terminal is designed for electrical connections requiring 14A current capacity with a wire size compatibility from 17 AWG minimum to 15 AWG maximum. Manufactured from tin-plated brass, this crimp terminal ensures superior conductivity and corrosion resistance suitable for various environments.
This product is intended for use with the AMP SUPERSEAL 1.5 Connector Housing, a series widely adopted in the automotive industry for its high reliability, vibration tolerance, and waterproof IP67 sealing capabilities. The terminal supports applications in automotive, agriculture, and industrial machinery, including trucks, buses, and off-road vehicles.
Operating temperature ranges from -40°C to 125°C, supporting harsh environmental conditions. The crimp design provides a secure and long-lasting termination method, while the maximum contact resistance of 30 milliohms ensures efficient power transmission.
TE Connectivity's MINI-MIC Series incorporates advanced features such as a 2-step positive lock for secondary locking and silicone rubber seals, ensuring durability and long lifespan of the electrical connection.
Constructed from tin-plated brass for durability and corrosion resistance. Male PCB connector contact compatible with MINI MIC tab configurations. Designed for 15-18 AWG wire size applications with a crimp termination type.
Ensures waterproof and vibration-resistant connections as part of the SUPERSEAL series. Suitable for use in demanding environments including automotive and industrial sectors. Length dimension of 22.7 mm supports compact connector assembly.
Maximum operating temperature of 125°C and minimum of -40°C. Offers a maximum contact resistance of 30 milliohms, providing reliable electrical performance.
This TE Connectivity 282109-1 product is an essential component for engineers and technicians seeking reliable and durable crimp terminal contacts for automotive and industrial electronic assemblies.
Browse more high-quality connectors like the MINI-MIC series at EnvMart for dependable electrical solutions.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current capacity of this crimp terminal is 14A.
It supports wire sizes from 17 AWG minimum to 15 AWG maximum.
The operating temperature range is from -40°C to 125°C.
This terminal is constructed from tin-plated brass, which provides reliable conductivity and corrosion resistance.
It is designed for use with the AMP SUPERSEAL 1.5 Connector Housing.
The length of this crimp terminal is 22.7 mm.
The maximum contact resistance is 30 milliohms (30 mΩ).
This terminal utilizes a crimp termination method for secure connections.
It is suitable for automotive, agriculture, and industrial machinery applications.
It incorporates a 2-step positive lock for secondary locking and silicone rubber seals for enhanced durability.
This crimp terminal is male gendered.
The country of origin for this product is India.
