MikroElektronika Rotary Y MikroBus Click Board with Alps EC12D 15-Pulse Incremental Rotary Encoder and 16 MIKROE-1825

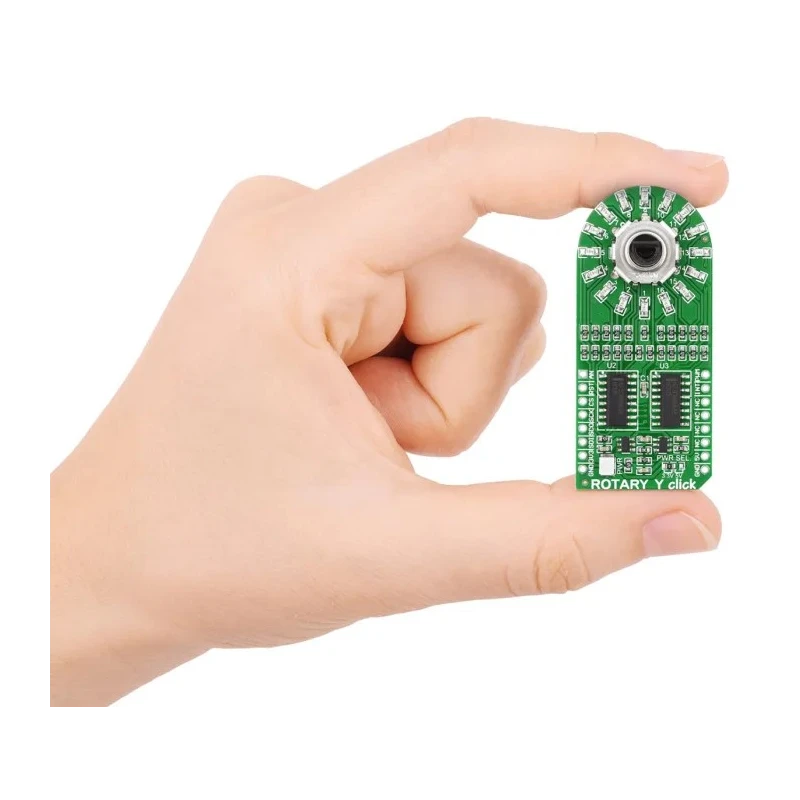

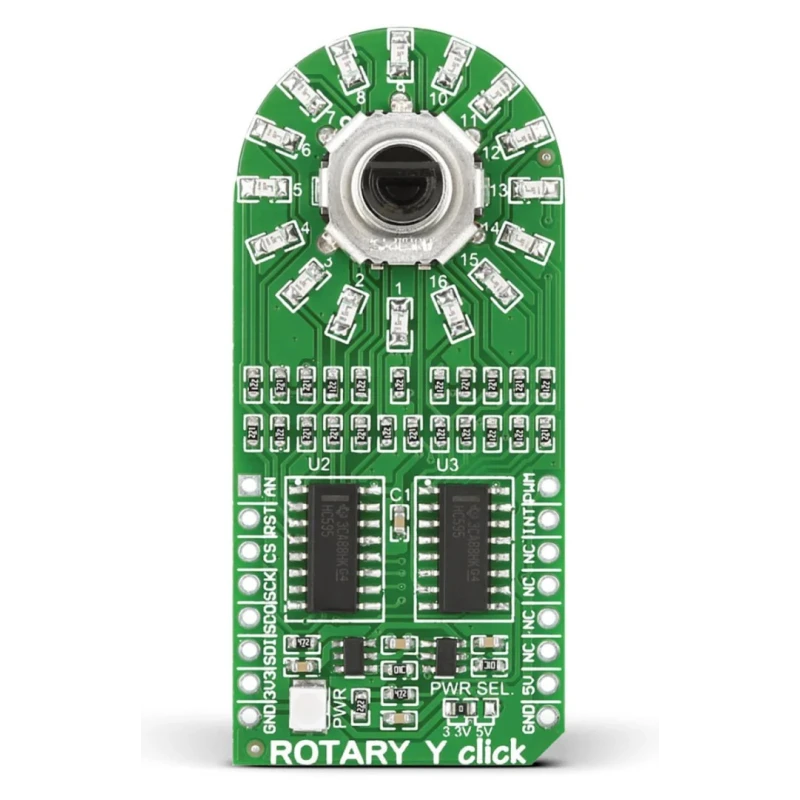

MikroElektronika MIKROE-1825 Rotary Y MikroBus Click Board is a sensor development tool featuring an Alps EC12D 15-pulse incremental rotary encoder surrounded by a ring of 16 yellow LEDs. The encoder offers a positive detent rotary action and includes a push switch accessible through the interrupt line. Designed for seamless integration with mikroBUS microcontroller development boards, this Click board uses the SPI communication interface and supports 3.3V or 5V power supply.

This rotary click board is ideally suited for adding precise and reliable control knobs to audio and video applications, enabling enhanced human-machine interaction. The presence of multiple colored LEDs around the encoder shaft provides visual feedback and status indication for various applications.

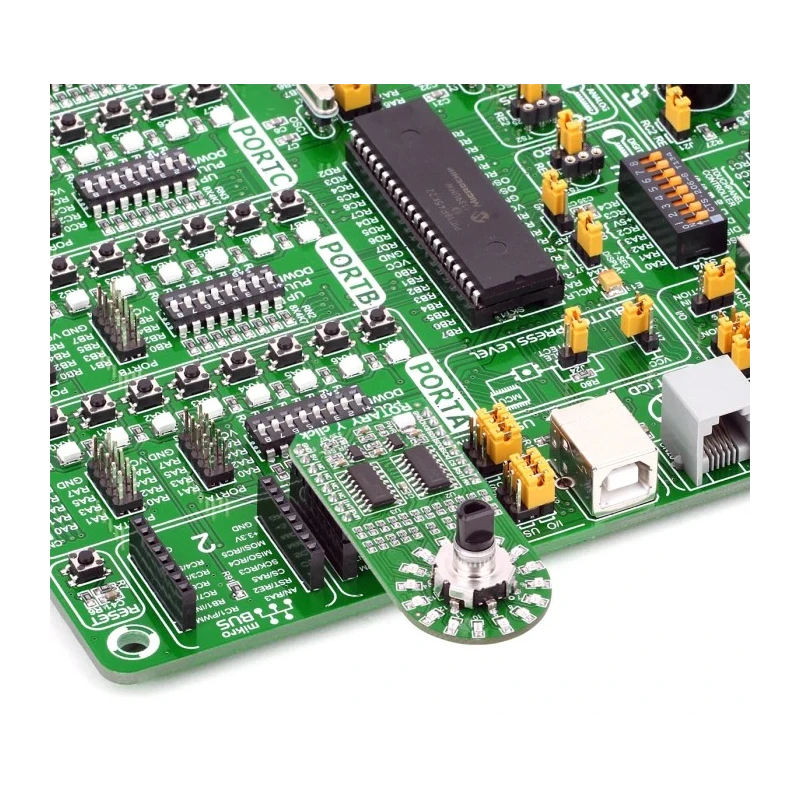

The module comes with header strips pre-soldered, facilitating quick and easy mounting onto compatible mikroBUS sockets. Industrial and laboratory applications can benefit from its compact form factor, precise rotary control, and versatile indicator LEDs.

The rotary encoder's robust design, combined with its microswitch push button functionality, makes it a practical choice for embedded system prototyping, development tools, and sensor interfacing in electronics engineering solutions.

Utilizes Alps EC12D rotary encoder with positive detent. Includes 16 colored LEDs arranged in a ring for status indication. Incorporates a push switch read via interrupt line. Communicates with MCU via mikroBUS SPI interface.

Operates on 3.3V or 5V power supply. Designed for audio and video application control knobs. Header strips come pre-soldered for easy integration.

This Rotary Y MikroBus Click Board is part of the MikroElektronika sensor development tool range, commonly utilized in electronics and electrical engineering for precise rotary input sensing and control tasks. Browse related MikroElektronika products and Sensor Development Tools on EnvMart for industrial and laboratory applications.
