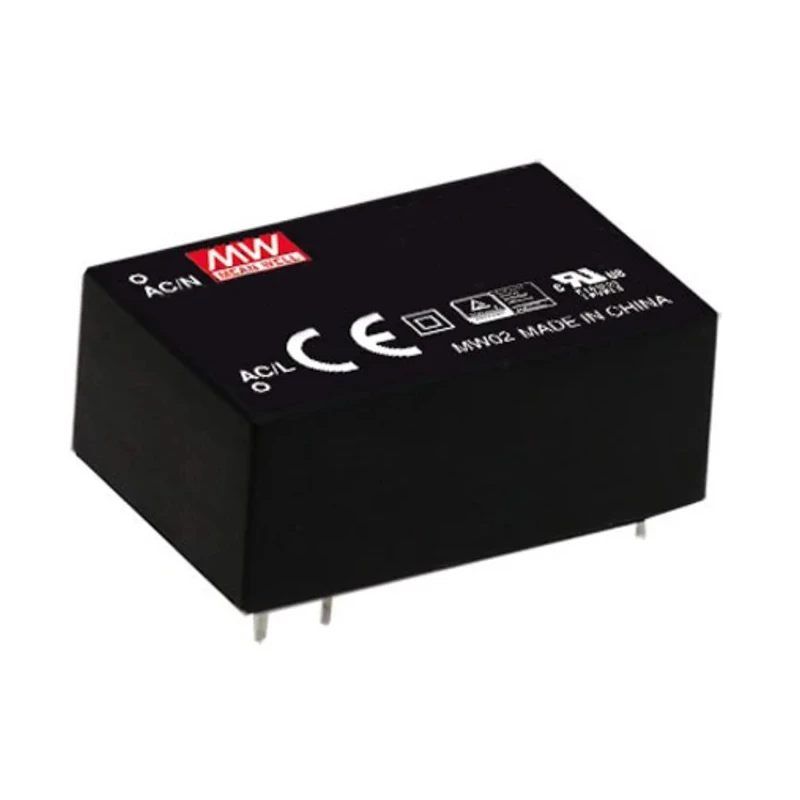

MEAN WELL IRM-02-12 Switching Power Supply 12V DC 2W Universal Input PCB Mount IRM-02-12

MEAN WELL IRM-02-12 switching power supply is a 2 watt single output AC-DC module designed for PCB mounting. It delivers a regulated 12V DC output and accepts a universal AC input voltage range of 85V to 305V, supporting global power standards. The IRM-02-12 series features a compact size of 33.7mm (length) x 22.2mm (width) x 15mm (depth) in an encapsulated phenolic case with fully potted silicone for enhanced heat dissipation, dust and moisture resistance.

This power supply provides an output current of 167mA with high efficiency reaching 74%, while maintaining low power consumption during no load below 0.075W. Class II isolation topology offers electrical safety without the need for a grounding connection.

The device is designed to withstand operating temperatures from -30°C to +85°C and vibration up to 5G, making it robust for industrial environments. It includes comprehensive protection features such as overvoltage, overload, and short circuit protection, ensuring reliable operation and safeguarding connected electronics.

Compliance with key international safety certifications including UL62368-1, TUV BS EN/EN 62368-1, IEC 62368-1, and EAC TP TC 004 guarantees worldwide acceptance. Electromagnetic compatibility is assured with EN55022 Class B emissions and immunity to various industrial disturbances such as surge and electrostatic discharge.

This power supply is ideal for applications including hand held electronic devices, factory automation systems, mechanical and industrial electrical equipment, providing a reliable power solution with minimal footprint.

Delivers 12V DC output voltage with a power rating of 2 watts. Compact PCB mount construction with dimensions of 33.7mm x 22.2mm x 15mm. Features universal input voltage range from 85V AC to 305V AC for versatile applications.

High efficiency up to 74% and low no-load power consumption below 0.075W. Protection against overvoltage, overload and short circuits enhances safety. Operates reliably within temperatures from -30°C to 85°C. Designed with Class II isolation and cooled by free air convection.

Complies with major safety standards including UL62368-1 and TUV EN/IEC 62368-1. EMC compliant meeting EN55022 Class B and immunity requirements for industrial environments. Suitable for hand held electronics, factory automation, mechanical and industrial equipment.
