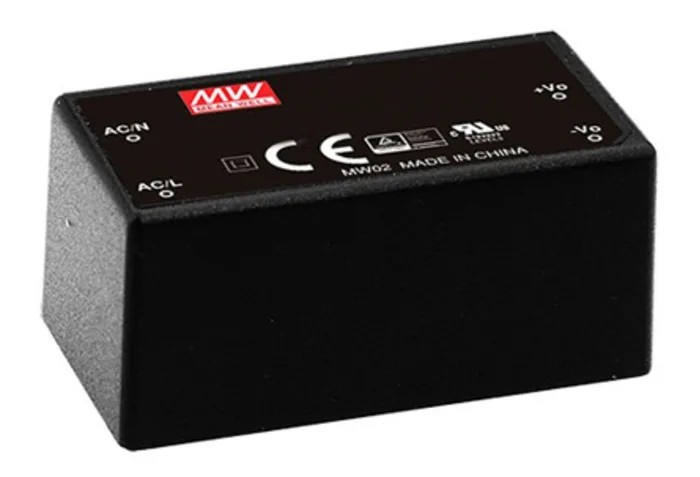

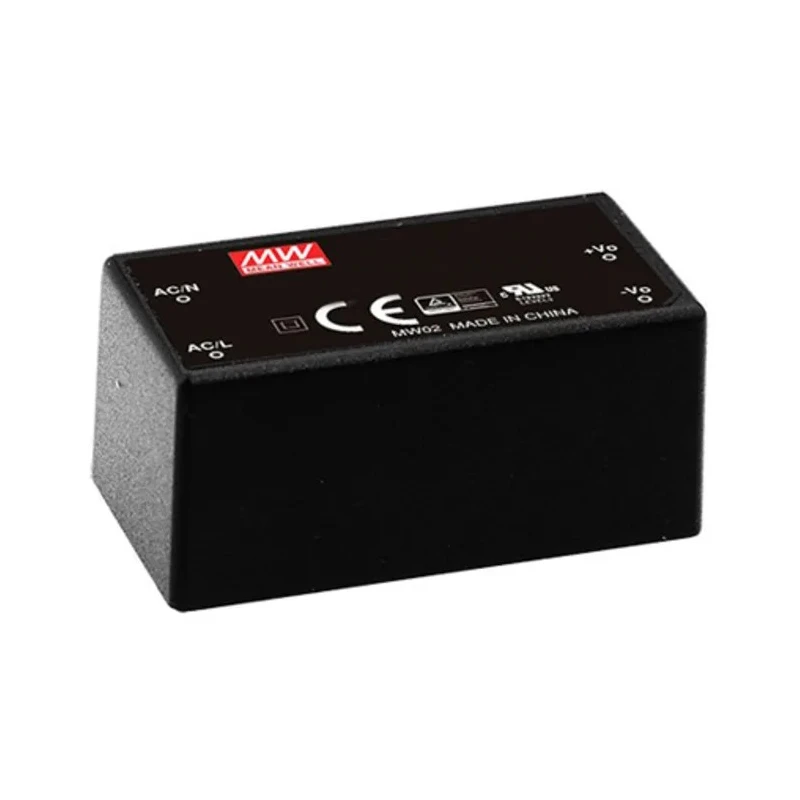

MEAN WELL IRM-10-12 Switching Power Supply 12V DC 10W 85-264V AC Universal Input IRM-10-12

MEAN WELL IRM-10-12 switching power supply is a 10W single output AC-DC module providing a regulated 12V DC output at 850mA. It features a universal input voltage range of 85V AC to 264V AC, making it highly versatile for worldwide applications. This encapsulated power supply is designed for PCB mounting with compact dimensions of 45.7mm length, 25.4mm width, and 21.5mm depth, and weighs approximately 40g.

The IRM-10 series is engineered to withstand vibrations up to 5G and resist dust and moisture, enhancing its durability in industrial environments. Its high efficiency of up to 82% ensures low power consumption, including a no-load power consumption below 0.1W. Safety features include Class II isolation and built-in EMI filtering to minimize electromagnetic interference.

The device has a wide operating temperature range from -30°C to 70°C, supporting reliable operation in varying conditions. Protective features such as overvoltage, overload, and short circuit protection increase the power supply's reliability and longevity. Cooling is achieved by free air convection, eliminating the need for additional cooling fans.

This power supply complies with stringent international safety standards including UL62368-1, TUV BS EN/EN 62368-1, IEC 62368-1, and EAC TP TC 004. It also adheres to EMC emission and immunity standards compliant with EN55022, EN61000 series, and heavy industry level surge resistance.

Applications for the MEAN WELL IRM-10-12 include handheld electronic devices, factory automation equipment, mechanical and industrial electrical devices requiring a stable 12V DC power source. The product is designed for installation directly on PCB boards, suitable for compact and space-saving designs in various electronic assemblies.

Compact and efficient 10W single output AC-DC power supply. Universal input voltage range and wide operating temperature. Robust protections and Class II isolation for safety. Meets international standards for safety and EMC compliance.

Ideal for industrial and electronic equipment power needs. Explore a wide range of high-quality power supplies and switching power modules on EnvMart for your industrial and electronic applications.
