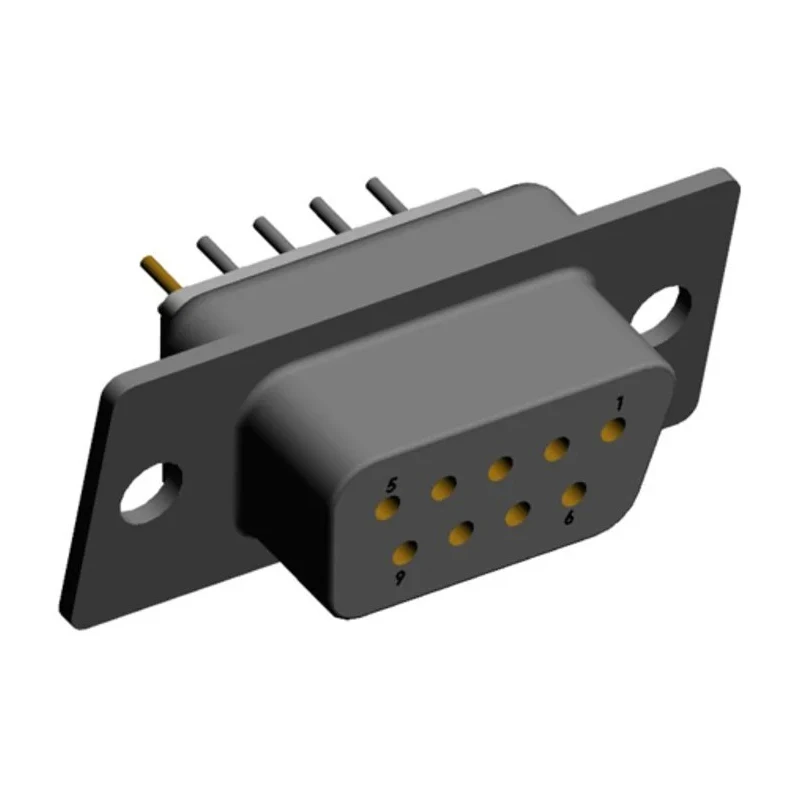

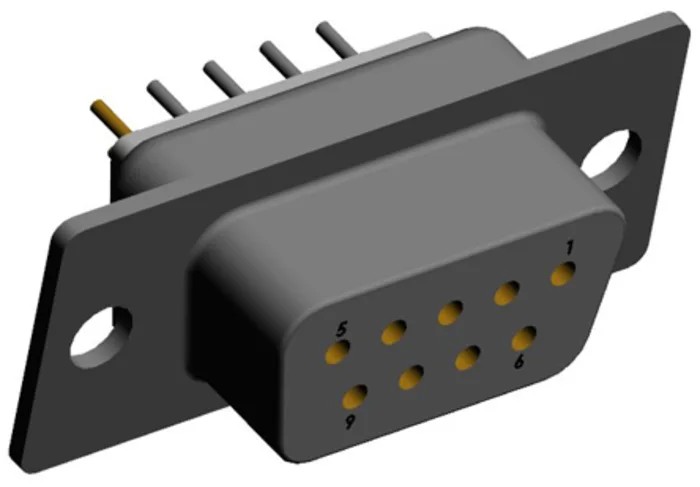

Norcomp 9 Way Straight 2.769 mm Pitch Through Hole D-Sub Connector Female 772-E09-213R001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 5A |
| Model | 772-E09-213R001 |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 772 |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -50°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- The connector features a steel housing for enhanced durability.
- Brass contacts with gold plating ensure excellent conductivity and corrosion resistance.
- Supports up to 5A current and a voltage rating of 500V.
- Operates reliably in temperatures ranging from -50°C to 100°C.
- Designed for solder termination with a female connector and contact gender.
- Meets IEC-529-IP67 sealing requirements to protect against dust and water ingress.
- Nickel plated steel shell improves shielding and grounding.
- Standard footprint maintains compatibility with existing D-Sub connectors.
Product Description
Norcomp 772-E09-213R001 is a high-quality 9 way straight through hole female D-Sub connector featuring a compact 2.769 mm pitch and steel housing for robust performance. This connector is designed for use in demanding industrial, medical, and electronic applications requiring secure, reliable connections under harsh conditions.
The brass contacts are gold plated to deliver excellent conductivity and reduce corrosion risks. It supports a maximum current of 5A at 500 volts, withstanding operating temperatures from -50°C to 100°C to ensure functionality in extreme environments.
Its solder termination type and female connector configuration make it suitable for PCB mounting with through hole technology. The nickel plated steel shell includes ground indents to enhance shielding, grounding, and mechanical retention, maintaining compatibility with standard D-Sub footprints.
These SEAL-D 772 connectors meet IEC-529-IP67 standards for dust and water ingress, making them suitable for outdoor, portable, and industrial equipment exposed to temporary washdowns or submersion. Typical applications include handheld computers and scanners, remote sensors, data loggers, industrial transmitters, emergency beacons, and boating electronics.
The connector’s rugged design ensures long service life in harsh environments. The IP67 sealing maintains enclosure integrity without requiring redesign. Reliable screw machined contacts provide stable electrical connections.
Nickel plating on the shell aids electromagnetic interference shielding. Through hole mounting ensures strong mechanical attachment to PCBs. Compact 2.769 mm pitch allows for dense connector arrangements. Supports industry standard wiring and connector dimensions.
Ideal solution for outdoor and industrial electronic connectivity. Compatible with SEAL-D 772 series cable, vertical, and right angle PCB mounts.
Explore a wide range of D-Sub Connectors at EnvMart for your industrial, laboratory, manufacturing, and electronic component needs. Norcomp’s 772 series offerings provide versatile, high-performance connectivity solutions backed by proven sealing technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 5A and has a voltage rating of 500V.
It operates reliably in temperatures ranging from -50°C to 100°C.
This unit features a solder termination type, suitable for PCB mounting.
The connector has a compact pitch size of 2.769 mm.
It has a total of 9 contacts.
The housing is made of steel, while the contacts are brass with gold plating for improved conductivity and corrosion resistance.
Yes, it meets IEC-529-IP67 standards for dust and water ingress protection.
This model features a straight orientation.
Yes, it maintains compatibility with standard D-Sub footprints, allowing for integration with existing systems.
It is designed for use in industrial, medical, and electronic applications, including handheld computers, remote sensors, and boating electronics.
This unit supports through hole mounting, ensuring strong mechanical attachment to PCBs.
The country of origin for this connector is India.
