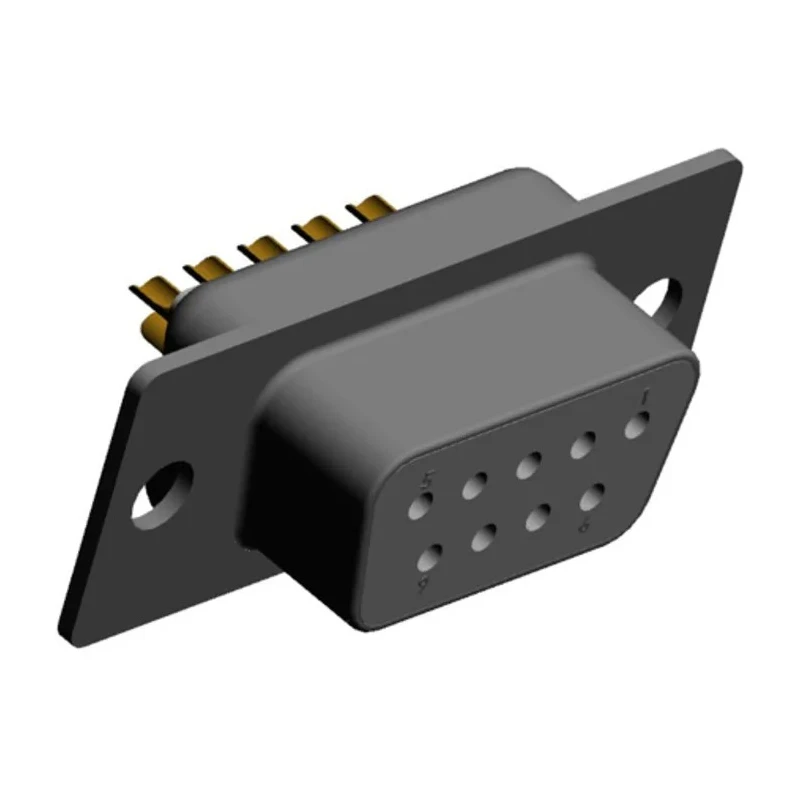

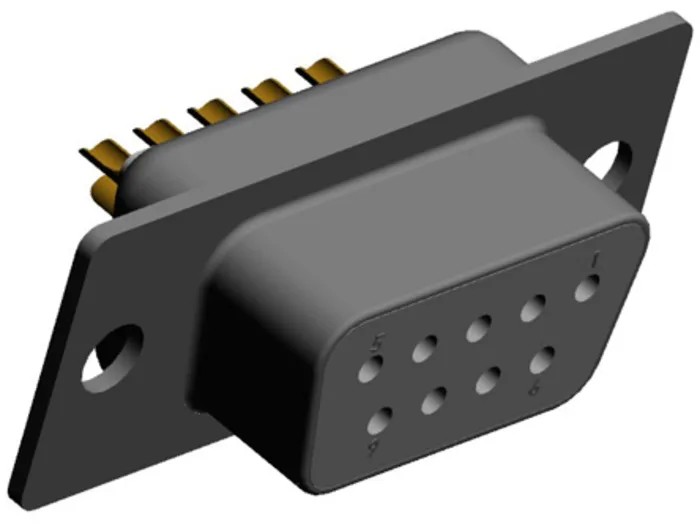

Norcomp SEAL-D 9 Way Straight 2.769 mm Pitch Cable D-Sub Connector Female 772-E09-203R001

Norcomp 772-E09-203R001 SEAL-D 9 Way Straight 2.769 mm Pitch Cable D-Sub Connector Female is a high-quality sealed D-Sub connector designed for secure and reliable cable connections. This connector meets IEC-529-IP67 sealing requirements, providing dust-tight and immersion protection while maintaining the standard D-Sub form factor.

The nickel plated steel housing enhances shielding and mechanical strength, while gold-plated brass contacts ensure excellent electrical performance and long-term reliability. Featuring a precise 2.769 mm pitch, this female cable mount connector supports current up to 5A and operates at voltages up to 500V.

The connector is rated for an operating temperature range from -50°C to 100°C, making it suitable for harsh environments and applications such as handheld computing devices, industrial equipment, medical instrumentation, and outdoor monitoring systems. It offers solder termination for secure cable attachment and is part of the SEAL-D 772 series, which is known for its robust IP67 sealing technology.

The SEAL-D series connectors maintain the same physical dimensions as standard D-Sub connectors, allowing for easy upgrades to sealed designs without the need for housing or PCB redesign. Ground indents in the shell improve grounding and retention, while screw machined contacts assure connection reliability under demanding conditions.

Constructed with a nickel plated steel shell for enhanced shielding and durability. Gold-plated brass contacts provide excellent electrical conductivity and corrosion resistance. Features a 2.769 mm pitch suitable for reliable connections.

Rated for 5A current and 500V voltage operation. Designed for solder termination and female connector gender. Operates within a temperature range of -50°C to 100°C ensuring versatility. Sealed to IEC-529-IP67 standards for protection against immersion and dust ingress.

Suitable for industrial, medical, and outdoor applications requiring robust and sealed connectors.

This sealed D-Sub Connector is ideal for industrial, medical instrumentation, handheld computer peripherals, and demanding outdoor applications where a durable and sealed electrical connection is required. Norcomp's SEAL-D family connectors support design upgrades to IP67 protection without footprint changes, easing integration and improving product reliability.
