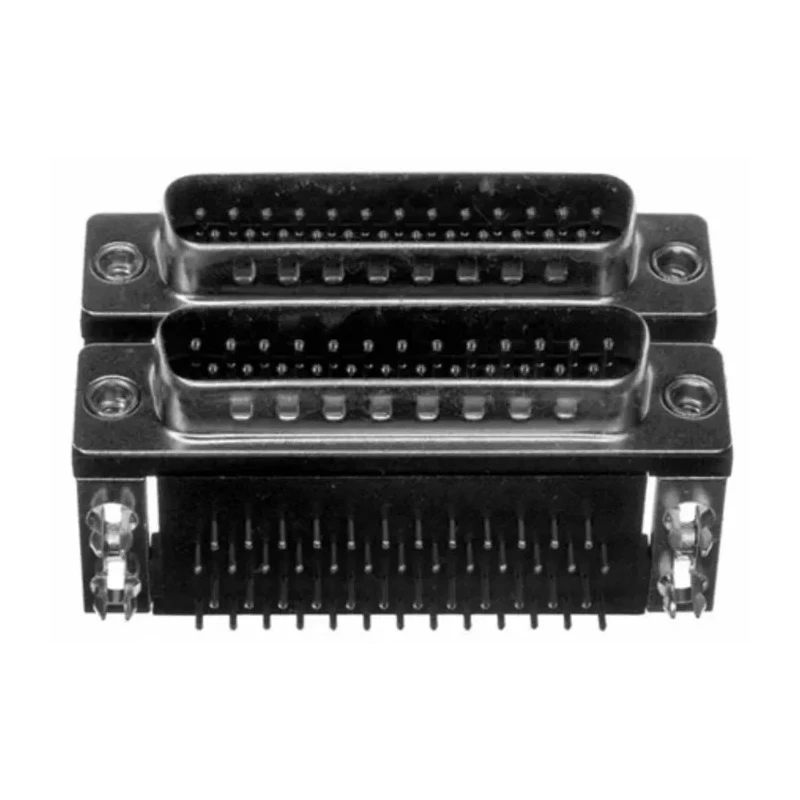

Norcomp Right Angle 25 2.769 mm Pitch PCB D-Sub Connector with 4 to 40 Insert 189-025-613R571
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 1kV |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 5A |
| Model | 189-025-613R571 |
| Mount Type | PCB |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 189 |
| Mounting Hardware | 4 to 40 Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts A | 25 |
| D-Sub Shell Size A | DA-25 |
| Contact Gender A | Female |
| D-Sub Shell Size B | DB-25 |
| Contact Gender B | Male |
Key Features
- Features dual stacked ports ideal for maximizing PCB space.
- Equipped with high-performance gold-plated stamped contacts.
- Nickel plated steel housing provides enhanced shielding and durability.
- Includes ground indents for improved grounding and retention.
- Supports solder termination with secure boardlocks and mounting hardware options.
- Operates reliably between -55°C and 105°C.
- Rated for 5A current and 1 kV voltage for robust electrical performance.
- Contact material is brass with gold plating for corrosion resistance.
Product Description
Norcomp 189-025-613R571 right angle PCB D-Sub connector, with a 2.769 mm pitch and 25 contacts per port, is designed for high-density dual port applications requiring efficient PCB layout. The connector features stamped contacts with gold plating to provide excellent conductivity and corrosion resistance.
The shell is nickel plated steel with ground indents that enhance shielding and provide improved grounding and mechanical retention on the PCB. Boardlocks add further retention security, and the connector uses 4 to 40 insert mounting hardware ensuring firm installation. The solder termination type supports reliable and strong electrical connections on the PCB.
Rated for a current of 5A and operating voltage up to 1 kV, this connector is suitable for demanding electronic applications. It performs well in a wide temperature range from -55°C to 105°C, with a UL94V-0 high-temperature thermoplastic insulator that withstands process temperatures up to 260°C. The contact gender configuration is female on side A and male on side B, with D-sub shell sizes DA-25 and DB-25 respectively.
This 189 series PCB mount stacked D-sub connector is ideal for industrial, electronics manufacturing, telecommunications, and instrumentation applications where space optimization and reliable connectivity are critical.
Dual ports for PCB space saving. High performance stamped, gold plated contacts. Nickel plated steel shell for improved shielding. Ground indents for improved grounding and extra retention. Boardlocks for secure retention on PCB.
Choice of mounting hardware using 4 to 40 inserts. Wide operating temperature range from -55°C to 105°C. Suitable for 5A current and 1kV voltage applications. Robust solder termination type for secure PCB connections. Manufactured in Taiwan, Province of China.
Explore more high-quality D-Sub Connectors and electronic components suitable for your next industrial or commercial application at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Norcomp 189-025-613R571 D-Sub connector is 2.769 mm.
This model is rated for a current of 5A and an operating voltage of 1 kV.
The housing is made of nickel plated steel, and the contacts are made of brass with gold plating for corrosion resistance.
It operates reliably between -55°C and 105°C.
This connector features 25 contacts per port, with a female configuration on side A and a male configuration on side B.
It supports solder termination, ensuring reliable electrical connections on the PCB.
The connector uses 4 to 40 insert mounting hardware for secure installation.
The D-Sub shell sizes are DA-25 for side A and DB-25 for side B.
It is suitable for industrial, electronics manufacturing, telecommunications, and instrumentation applications.
Yes, it includes ground indents for improved grounding and retention on the PCB.
The gold plating on the contacts provides excellent conductivity and corrosion resistance.
This D-Sub connector is manufactured in Taiwan, Province of China.
